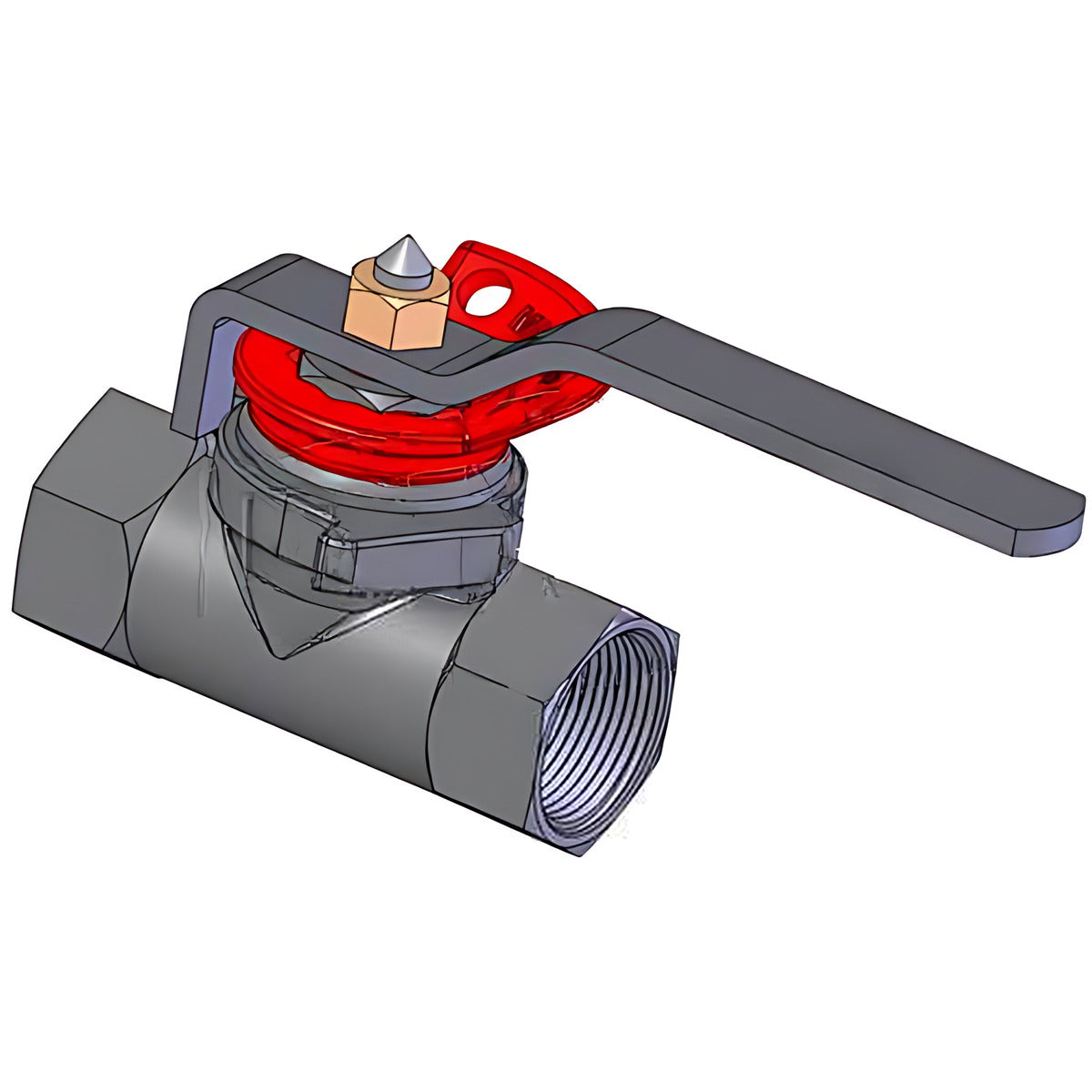

Dixon 08/062/113/00LO 1" Ball Valve Lockout Female BSP x Female BSP
Regular price
$69.00
Sale price
$69.00
Regular price
Inc. GST
Available
Rated to ½” to 2” - 300 PSI, so you can match it to line pressure with confidence. SG Iron to ISO 1083 construction handles the temperature, pressure and media of industrial duty. Body materials: Spheroidal graphite cast iron to ISO 1083, 400-250-15 SGI. Handle: Pressed mild steel. Ball & Stem: Spheroidal graphite cast iron to ISO 1083, Chrome copper plated to AS119.
Key Specifications
| Size | 1" / 1-1/2" / 2" / 3/4" |
| Working Pressure | ½” to 2” - 300 PSI |
| Temperature Rating | -20°C to 80°C |
| Material | SG Iron to ISO 1083 |
| Female Thread | Female BSP x Female BSP |
| Seat | Nitrile Butadiene |
| Temperature Rating Metric | -20°C to 80°C |
| Standards referenced | ISO 1083, AS119, AS1789, AS1192 |
Where This Is Used
- This is a general-purpose ball valve suitable for air and water applications in the mining industry.
- Solid construction with a unique one-piece ball and stem provide a positive on/off action.
- In-line maintenance is easy for the top-loading 20mm (¾”) and 25mm (1”) design, and the 3-piece 40mm (1½”) and 50mm (2”) design.
- General purpose ball valve suitable for mining and industrial applications.
Features
- Solid construction with unique one piece ball and stem provides positive on/off action.
- In-line maintenance is easy.
- Supplied with lock device fitted.
Product Highlights
Resources
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Available Options:
-
1
Model Number: 08/062/113/00LO
-
1 1/2
Model Number: 08/062/847/00LO
-
2
Model Number: 08/062/848/00LO
-
3/4
Model Number: 08/062/114/00LO
