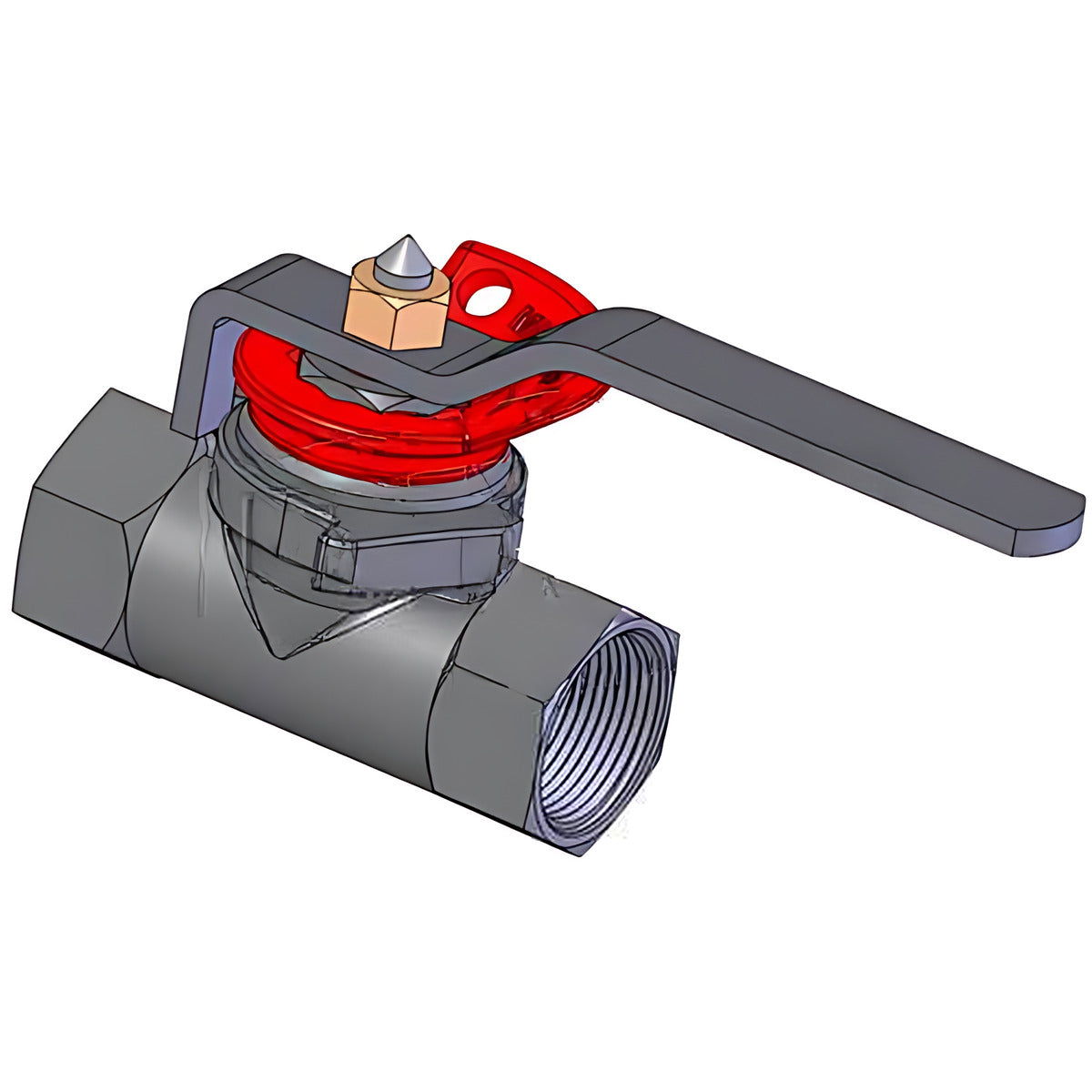

Dixon 08/062/102/00LO 1" (25 mm) Minsup Econovalve Lockout Ball Valve NPT
Out of stock
This Dixon Minsup Econovalve is a 25 mm (1 in) general-purpose lockout ball valve with female x female NPT ends. It has a one-piece ball and stem for a positive on/off action, and Dixon describes the range as suitable for air and water in mining (manufacturer-stated).
Dixon rates the Econovalve range at 300 PSI and -20 to 80 degrees C, with a 2:1 safety rating. The body is zinc-plated SG iron and the seal is nitrile butadiene; the 1 in size is a top-loading design, so the valve can be maintained in line (manufacturer-stated).
Where this product is used
- Air and water lines in underground and surface mining (manufacturer-stated).
- Isolation points where a solid iron-bodied valve with a pressed steel handle suits the duty.
- Points where the valve needs to be locked open or locked closed, using the lockout version listed by Dixon.
Features
- One-piece ball and stem for a positive on/off action (manufacturer-stated)
- Top-loading 1 in design allows in-line maintenance (manufacturer-stated)
- Body: SG iron, zinc plated; seal: nitrile butadiene (manufacturer-stated)
- Working pressure 300 PSI; temperature -20 to 80 degrees C (manufacturer-stated)
- End connections: Female x female NPT (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Valve type | Minsup Econovalve ball valve, one-piece ball and stem |
| End connections | Female x female NPT |
| Working pressure | 300 PSI |
| Temperature | -20 to 80 degrees C |
| Safety rating | 2:1 |
| Body | SG iron (ISO 1083; 400-250-15), zinc plated (AS1789) (manufacturer-stated) |
| Seal | Nitrile butadiene |
| Ball and stem | SG iron (ISO 1083; 400-250-15) and copper, chrome plated (AS1192), one-piece ball and stem (manufacturer-stated) |
| Handle | Pressed mild steel |
Key specifications
| Dixon part number | Size | End connections | Working pressure |
|---|---|---|---|
| 08/062/102/00LO | 1" (25 mm) | Female x female NPT | 300 PSI |
The store title for this part ends with the word Standard. In Dixon's catalogue 08/062/102/00LO sits in the "with Lockout" column, and no standard (non-lockout) part number is listed for the 1 in NPT size.
Selecting the right option
Both ends are female NPT, so each side needs a male NPT thread; NPT and BSP threads do not interchange. If your lines are BSP, Dixon lists the same Econovalve with female BSP x female BSP ends (see Related products). The lockout version is the one that can be locked open or closed with Dixon's Econovalve lockout device (manufacturer-stated).
Related products
Related Dixon products: Dixon Econovalve - Ball Valve Lockout BSP Female x BSP Female, Dixon Minsup Econovalve Ball Valve Lockout Device and Dixon 08/062/102/00LOA 1" Ball Valve Lockout Minsup F- NPTF x F- NPTF.
