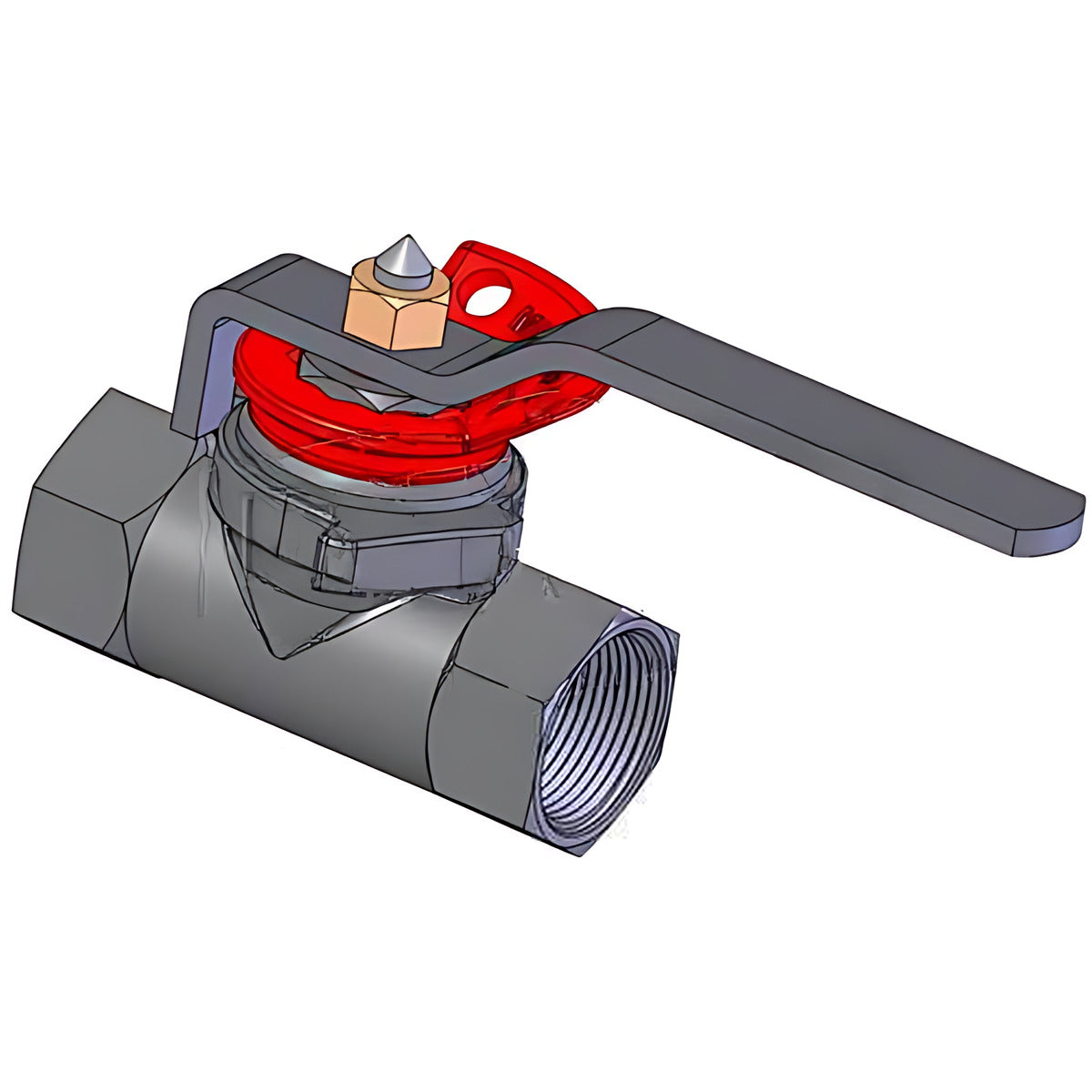

Dixon 08/062/102/00LOA 1" (25 mm) Minsup Econovalve Lockout Ball Valve

This Dixon Minsup Econovalve is a 25 mm (1 in) ball valve with a lockout device, part number 08/062/102/00LOA. The product title lists the ends as female NPTF x female NPTF.

Dixon rates the Minsup Econovalve range at 300 PSI and -20 to 80 degrees C, with a one-piece ball and stem, a zinc-plated SG iron body and a nitrile butadiene seal (manufacturer-stated). Dixon's catalogue tables list the related 08/062/102/00LO, a 1 in female x female NPT lockout valve.

Where this product is used

• Air and water lines in mining (manufacturer-stated, for the Econovalve range).
• Points where the valve needs to be locked open or locked closed, using the lockout fitted to this version.

Features

• Minsup Econovalve range: one-piece ball and stem (manufacturer-stated)
• Range body: SG iron, zinc plated; seal: nitrile butadiene (manufacturer-stated)
• Range rating: 300 PSI, -20 to 80 degrees C (manufacturer-stated)
• Lockout version, 1 in (25 mm)

Key specifications

Selecting the right option

Confirm the end connections with us before you order. The product title names the ends as female NPTF x female NPTF, and Dixon's catalogue lists the related 08/062/102/00LO as female x female NPT; this part number carries the LOA suffix and does not have its own row in the catalogue tables. Ratings above are those Dixon publishes for the Minsup Econovalve range.

Related products

Related Dixon products: Dixon 08/062/102/00LO 1" Ball Valve Lockout Minsup NPTF x NPTF Standard, Dixon Minsup Econovalve Ball Valve Lockout Device and Dixon Econovalve - Ball Valve Lockout BSP Female x BSP Female.
