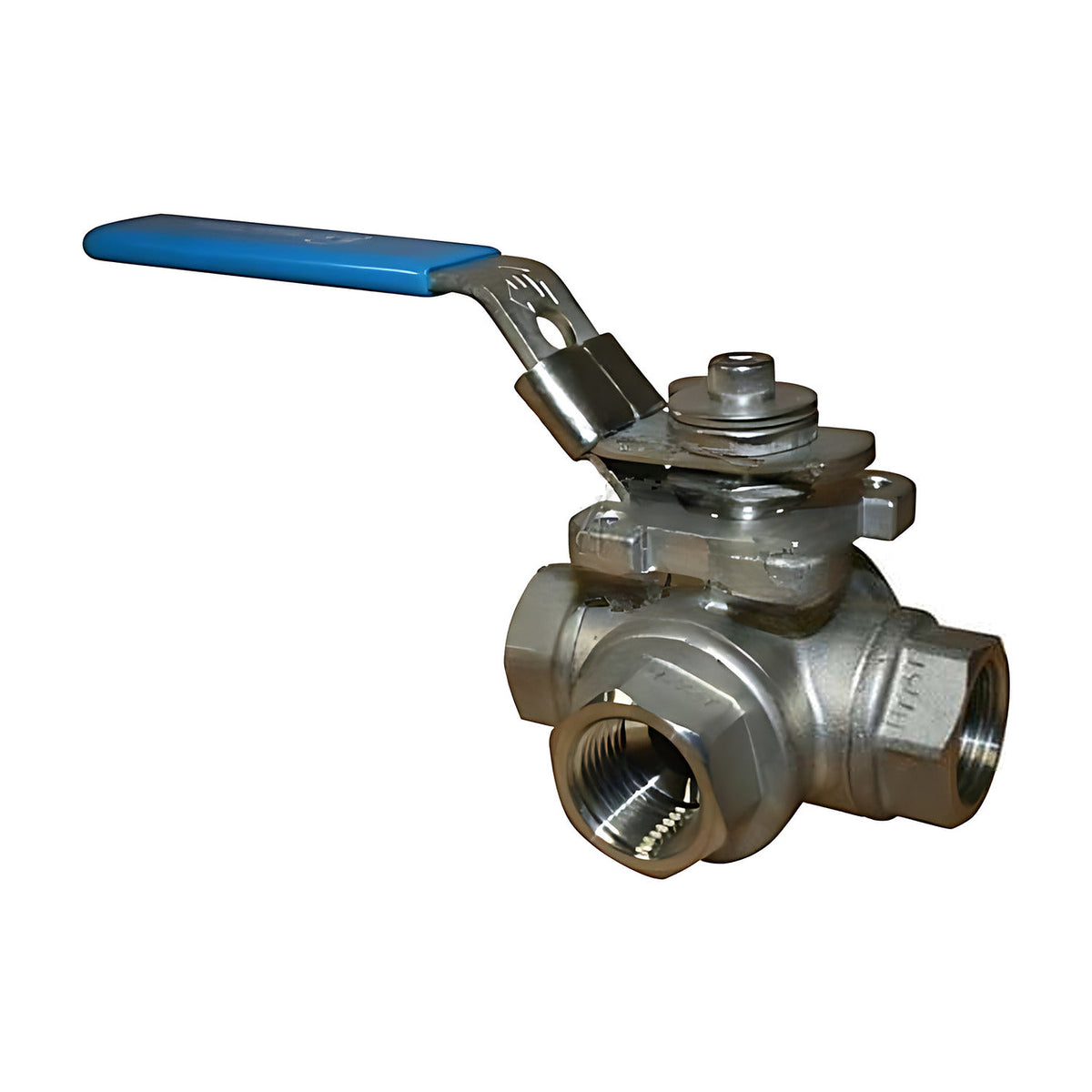

Dixon SS3WL050 2" L Port 316 Stainless Steel Ball Valve 3-Way L Port Female Thread BSP

This Dixon three-way ball valve has an L-type port, a 316 stainless steel body and ball (ASTM A351 CF8M), a PTFE seat and female BSP ends. The L port diverts flow between two outlets. Dixon lists the L-port range in 6 sizes, from 1/2" to 2" (manufacturer-stated).

Dixon rates it at 1000 PSI (69 bar) and lists a Watermark approval for the range. The design includes a lever, a locking device, a blow-out proof stem and an ISO 5211 mounting pad (manufacturer-stated).

Where this product is used

• Diverting flow from one inlet to either of two outlets on air, water, oil and gas lines, and on most chemicals compatible with the body and trim (manufacturer-stated).
• Switching between two supply or return lines from one handle.

Features

• L-port three-way design, lever operated, with a locking device (manufacturer-stated)
• Blow-out proof stem and ISO 5211 mounting pad (manufacturer-stated)
• Body and ball: 316 stainless steel (ASTM A351 CF8M); seat: PTFE (manufacturer-stated)
• End connection: female BSP (manufacturer-stated)
• Working pressure: 1000 PSI (69 bar); Watermark listed (manufacturer-stated)

Common specifications

Key specifications

Selecting the right option

An L port connects the inlet to one of two outlets and shuts off the other; the T port version (SS3WT series) can also mix or connect all three. Choose the port style from the flow pattern you need before you order, and check the handle position marks when you fit the valve. Dixon lists both port styles on the same page of its catalogue.
