Dixon BBV3WL012 1/2" L Port Brass Ball Valve 3-Way Female Thread BSP
Available

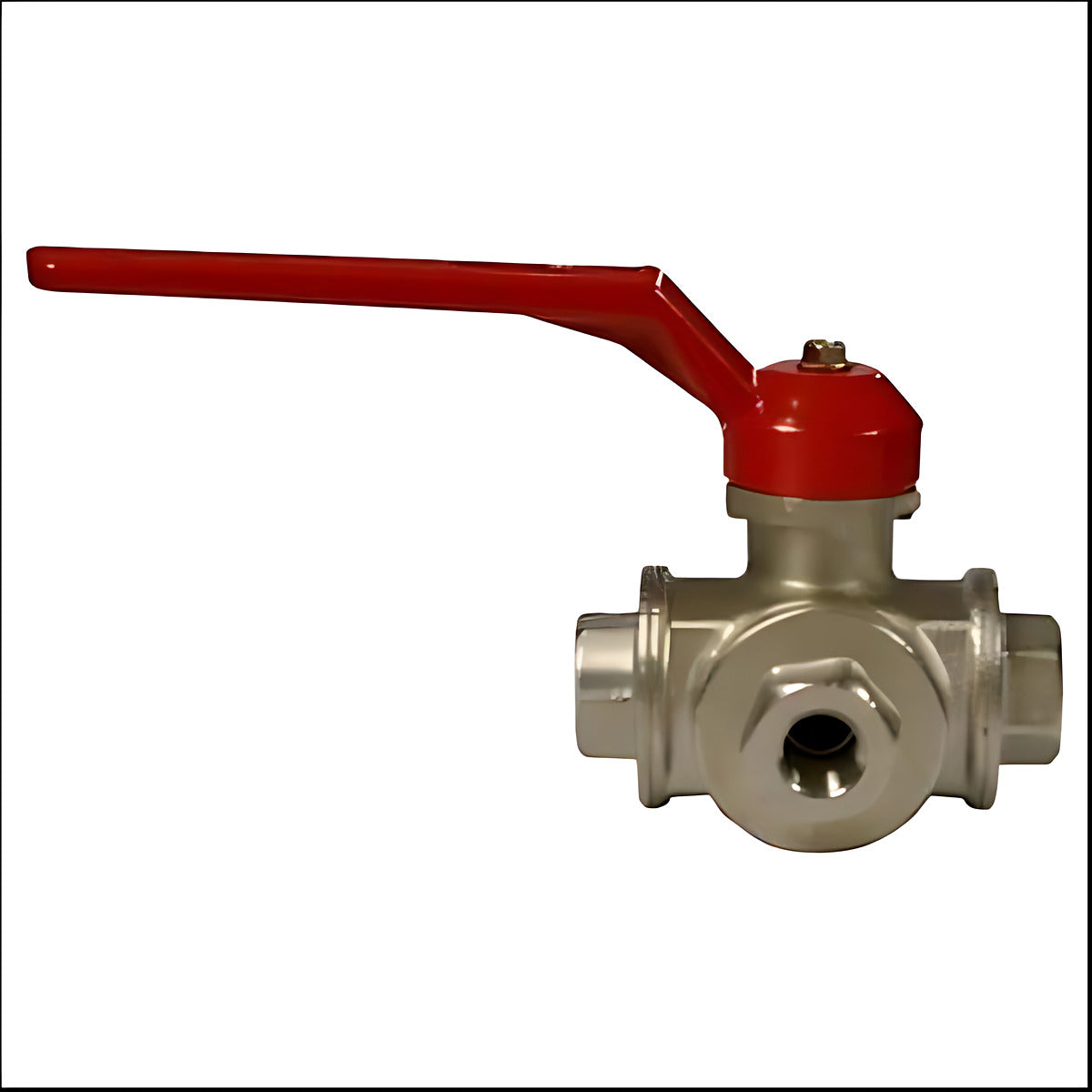

This Dixon three-way ball valve has a nickel-plated brass body, a PTFE seat and female BSP ends, and is listed with both L and T port styles. Dixon lists it in 8 sizes, from 1/4" to 2" (manufacturer-stated).
Dixon rates it at 360 PSI (25 bar) and gives an operating temperature of -15 to 150 degrees C for air and 0 to 150 degrees C for water without steam (manufacturer-stated). The valve is lever operated.
Where this product is used
- Diverting or mixing flow on air, water, oil and gas lines, and on most chemicals compatible with the body and trim (manufacturer-stated).
- Switching between two lines from one handle (L port), or connecting any two of three lines (T port).
Features
- Three-way, lever-operated design in L port and T port styles (manufacturer-stated)
- Body: nickel-plated brass; seat: PTFE (manufacturer-stated)
- End connection: female BSP (manufacturer-stated)
- Working pressure: 360 PSI (25 bar) (manufacturer-stated)
- Temperature: air -15 to 150 degrees C; water 0 to 150 degrees C without steam (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Body material | Nickel-plated brass |
| Seat | PTFE |
| Port styles | L port and T port (selected by the Port Style option) |
| End connection | Female BSP |
| Working pressure | 360 PSI (25 bar) |
| Temperature | Air -15 to 150 degrees C; water 0 to 150 degrees C without steam |
| Sizes | 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" |
Key specifications
| Dixon part number | Size | Port style | Working pressure |
|---|---|---|---|
| BBV3WL006 | 1/4" | L | 360 PSI (25 bar) |
| BBV3WL010 | 3/8" | L | 360 PSI (25 bar) |
| BBV3WL012 | 1/2" | L | 360 PSI (25 bar) |
| BBV3WL020 | 3/4" | L | 360 PSI (25 bar) |
| BBV3WL025 | 1" | L | 360 PSI (25 bar) |
| BBV3WL032 | 1-1/4" | L | 360 PSI (25 bar) |
| BBV3WL040 | 1-1/2" | L | 360 PSI (25 bar) |
| BBV3WL050 | 2" | L | 360 PSI (25 bar) |
| BBV3WT006 | 1/4" | T | 360 PSI (25 bar) |
| BBV3WT010 | 3/8" | T | 360 PSI (25 bar) |
| BBV3WT012 | 1/2" | T | 360 PSI (25 bar) |
| BBV3WT020 | 3/4" | T | 360 PSI (25 bar) |
| BBV3WT025 | 1" | T | 360 PSI (25 bar) |
| BBV3WT032 | 1-1/4" | T | 360 PSI (25 bar) |
| BBV3WT040 | 1-1/2" | T | 360 PSI (25 bar) |
| BBV3WT050 | 2" | T | 360 PSI (25 bar) |
Selecting the right option
Pick the port style from the flow pattern you need. An L port connects the inlet to one of two outlets; a T port can also connect all three or pass flow straight through. Confirm the position marks on the handle when you fit the valve. For steam or media outside the temperature range above, ask us before ordering.
