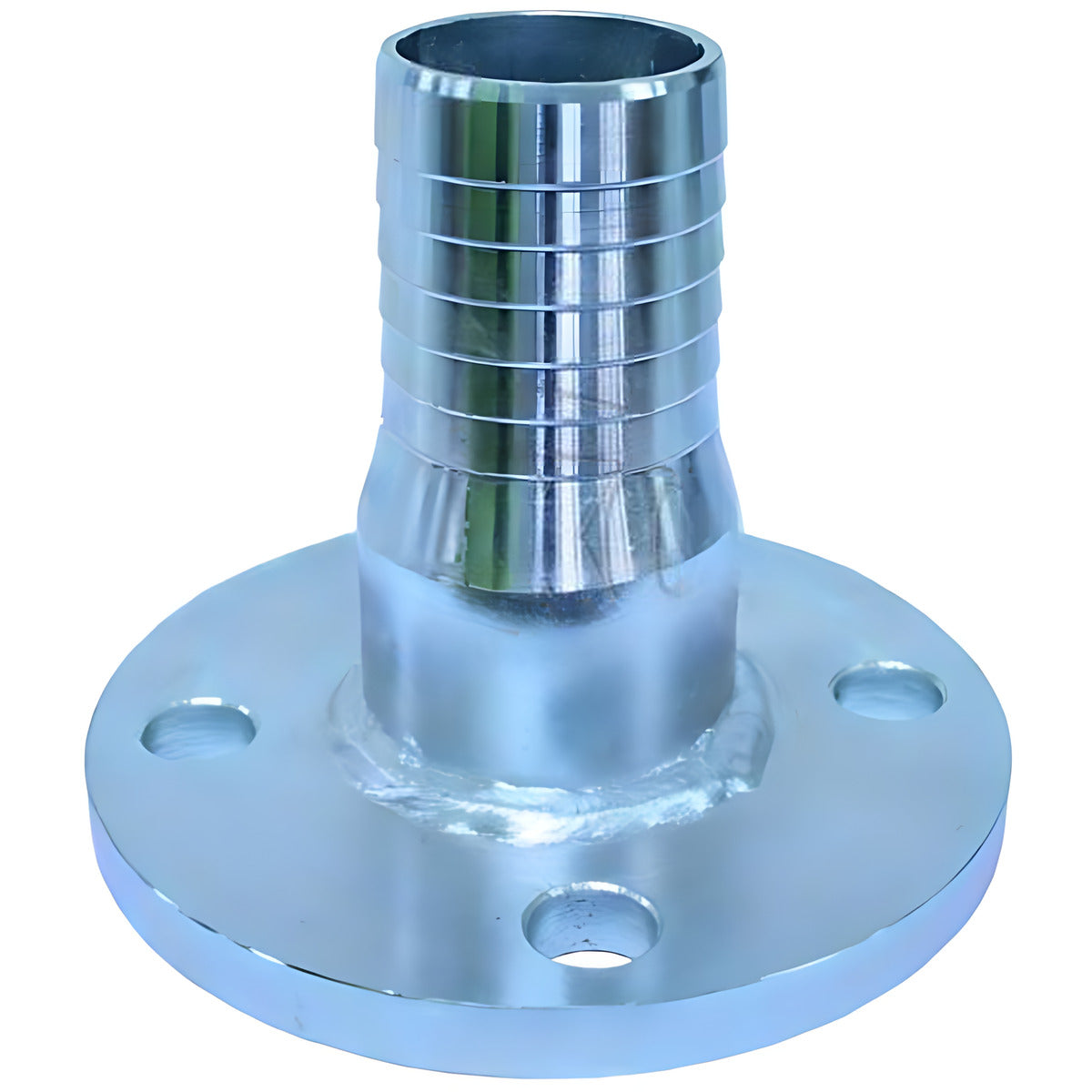

Dixon FSTE250 65 mm Combination Nipple, Table E Flanged Hosetail, Steel
Out of stock
This Dixon combination nipple has a Table E flange end and a hose tail, and is made from steel. It is sold in the 65 mm size under part number FSTE250.
Dixon's King Crimp catalogue lists Table E flange end combination nipples in carbon steel as FSTE200CS (50 mm), FSTE300CS (75 mm), FSTE400CS (100 mm) and FSTE600CS (150 mm) hose ID. FSTE250 is not printed in those tables, so the flange figures below come from Dixon's flange table (headed Australian Standard 2129) (manufacturer-stated) for a 65 mm Table E flange, not from a listing for this part number.
Where this product is used
- Connecting hose to a Table E flanged valve, pump or pipework.
- Hose assemblies that need a flange end on a 65 mm nipple.
Features
- Table E flange end with hose tail, steel
- 65 mm size, part number FSTE250
- Table E drilling for 65 mm: four M16 bolts in 18 mm holes on a 127 mm PCD, 165 mm flange OD (manufacturer-stated)
Key specifications
| Specification | Detail |
|---|---|
| Part number | FSTE250 |
| Type | Combination nipple, flanged hosetail |
| Size | 65 mm |
| Material | Steel |
| Flange pattern | Table E |
| Table E flange OD / PCD (65 mm) | 165 mm / 127 mm |
| Table E drilling (65 mm) | 4 x M16, 18 mm holes |
Selecting the right option
Confirm that the mating flange is Table E before you order. If you plan to use this nipple with a crimp ferrule or sleeve, check the style with us first: Dixon notes that crimp-style hose tails must only be used with crimp-style sleeves and ferrules, and that its parts should not be interchanged with other manufacturers' products (manufacturer-stated).
