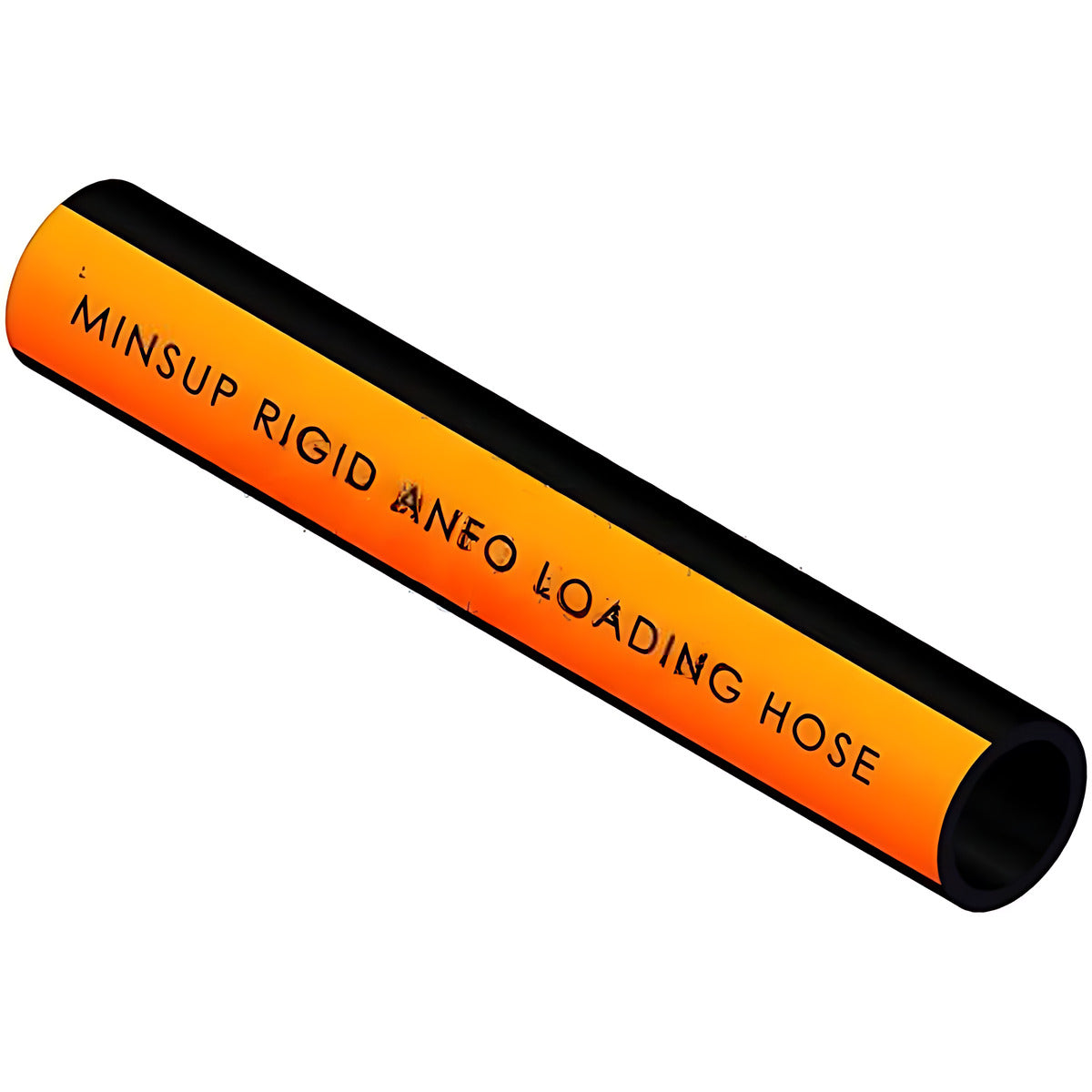

Dixon 05/100/01/124 19.0 mm x 30 m PVC Anfo Semi Conductive Transfer Tube - Minsup
Available
This Dixon Minsup tube is made for pneumatically loading blasting agents such as ANFO into drilled blast holes, and it is made from materials with low static properties (manufacturer-stated). It is semi-conductive and Dixon states it is manufactured to AS2187.2, with a resistance of 0.015 to 0.025 megohm per metre and under 1.6 megohm per coil (manufacturer-stated).
The store lists two versions: a 19.0 mm ID PVC tube in 30 m coils rated at 100 PSI (6.9 bar), and a 25.4 mm ID HDPE tube in 60 m coils rated at 150 PSI (10.3 bar) (manufacturer-stated). Dixon gives the temperature range as -21 to 60 degrees C for PVC and -21 to 80 degrees C for HDPE (manufacturer-stated).
Where this product is used
- Pneumatic loading of blasting agents into drilled blast holes (manufacturer-stated).
- Loading lines where low static properties are required (manufacturer-stated).
Features
- Semi-conductive; manufactured to AS2187.2 (manufacturer-stated)
- Resistance 0.015 to 0.025 megohm per metre; under 1.6 megohm per coil (manufacturer-stated)
- PVC version: 19.0 mm ID, 100 PSI (6.9 bar), -21 to 60 degrees C, 30 m coil (manufacturer-stated)
- HDPE version: 25.4 mm ID, 150 PSI (10.3 bar), -21 to 80 degrees C, 60 m coil (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Standard | AS2187.2 (manufacturer-stated) |
| Conductivity | Semi-conductive |
| Resistance per metre | 0.015 to 0.025 megohm |
| Total resistance per coil | Under 1.6 megohm |
| PVC temperature | -21 to 60 degrees C |
| HDPE temperature | -21 to 80 degrees C |
| Sizes on this page | 19.0 mm PVC, 25.4 mm HDPE |
Key specifications
| Dixon part number | Material | Coil length | ID (mm) | OD (mm) | Working pressure | Weight (kg/m) |
|---|---|---|---|---|---|---|
| 05/100/01/124 | PVC | 30 m | 19.0 | 27.0 | 100 PSI (6.9 bar) | 0.355 |
| 05/100/01/455 | HDPE | 60 m | 25.4 | 30.0 | 150 PSI (10.3 bar) | 0.220 |
Figures are from the Minsup ANFO loading hose table in Dixon's Mining Product Range and Specialty Mining Products catalogues. Dixon also lists a 32.0 mm ID HDPE tube (05/100/01/456) that is not in the store.
Selecting the right option
Choose the tube to match your ANFO loader, the blast hole size and the loading pressure. Check the resistance figures and the standard requirements for your site before you use the tube. Use the correct Minsup couplings and fittings for the tube material. See the Related products for hose clamps and couplings.
