Dixon BR100DC 25 mm (1") Bronze Sand Cast Cam & Groove Type DC Dust Cap
Available

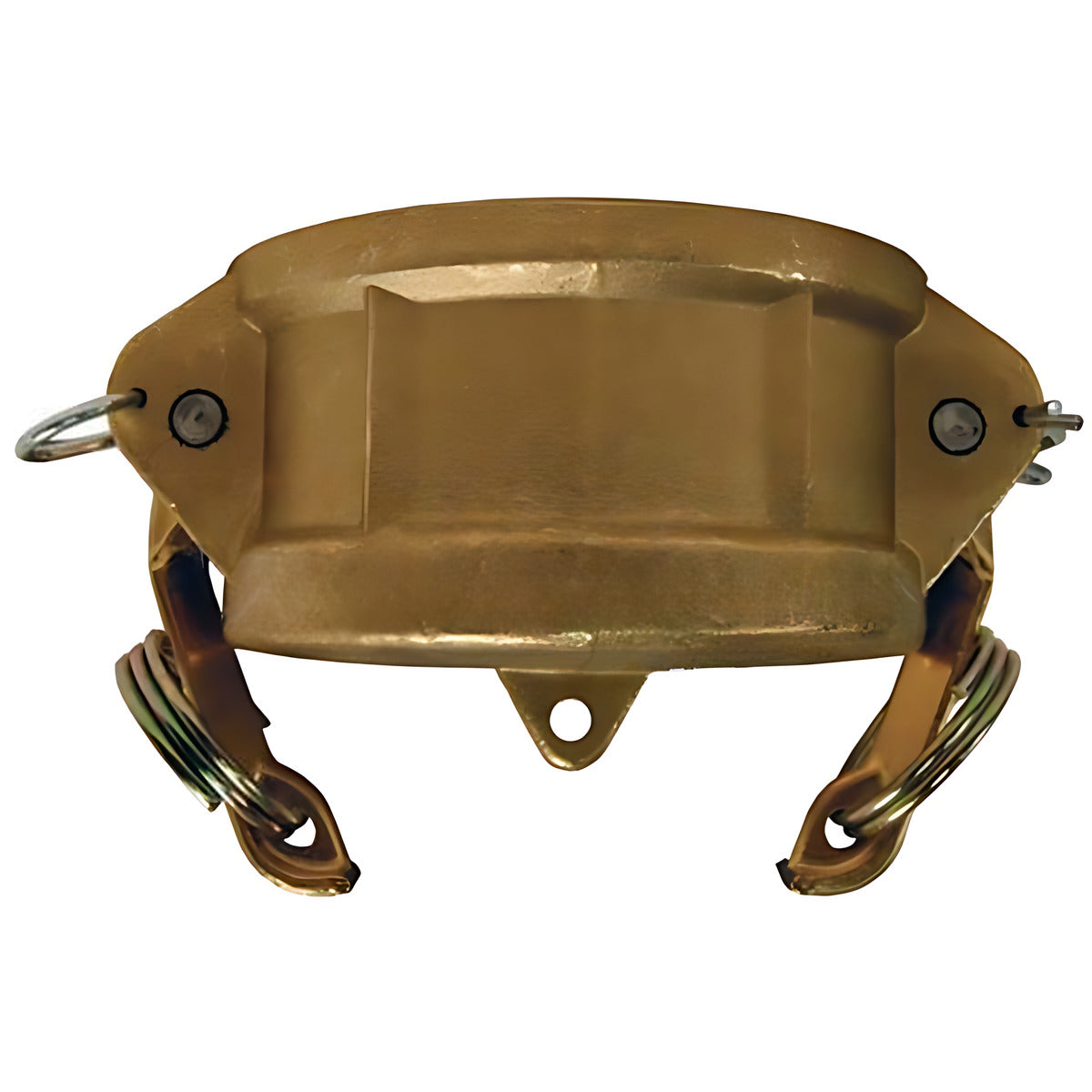

This Dixon bronze sand cast dust cap closes off a male cam and groove adaptor. It is a Type DC cap, which locks onto the adaptor with its cam arms. Dixon lists the bronze sand cast range in 11 sizes, from 15 mm (1/2") to 150 mm (6") (manufacturer-stated).
The body is sand-cast bronze, grade UNS C84400, which Dixon lists to ASTM-B584 (manufacturer-stated). Dust caps and dust plugs are not to be used in any pressure applications for safety and environmental reasons (manufacturer-stated).
Where this product is used
- Closing off a male camlock adaptor on a hose, pipe or tank outlet that is not in use, so dirt and debris stay out of the cam and groove profile.
- Bronze cover for bronze camlock fittings on hose and tank outlets.
- Spare covers for hose assemblies that are stored in a workshop or carried on a vehicle.
Features
- Type DC dust cap for cam and groove couplings, 11 sizes from 15 mm (1/2") to 150 mm (6") (manufacturer-stated)
- Body: Bronze (sand cast), grade UNS C84400 to ASTM-B584 (manufacturer-stated)
- Not for use in pressure applications (manufacturer-stated)
- Dixon camlock materials table for this body type: Levers: 210 stainless steel; pins: zinc plated steel; pull rings: zinc plated steel; seal: nitrile buna rubber (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Type | Type DC dust cap |
| Body material | Bronze (sand cast), grade UNS C84400 to ASTM-B584 (manufacturer-stated) |
| Sizes | 15 mm (1/2"), 20 mm (3/4"), 25 mm (1"), 32 mm (1-1/4"), 40 mm (1-1/2"), 50 mm (2"), 65 mm (2-1/2"), 75 mm (3"), 100 mm (4"), 125 mm (5"), 150 mm (6") |
| Levers, pins, pull rings and seal (Dixon camlock materials table) | Levers: 210 stainless steel; pins: zinc plated steel; pull rings: zinc plated steel; seal: nitrile buna rubber |
| Pressure use | Not for use in pressure applications (manufacturer-stated) |
Key specifications
| Dixon part number | Size (mm) | Nominal size (in) |
|---|---|---|
| BR050DC | 15 | 1/2 |
| BR075DC | 20 | 3/4 |
| BR100DC | 25 | 1 |
| BR125DC | 32 | 1-1/4 |
| BR150DC | 40 | 1-1/2 |
| BR200DC | 50 | 2 |
| BR250DC | 65 | 2-1/2 |
| BR300DC | 75 | 3 |
| BR400DC | 100 | 4 |
| BR500DC | 125 | 5 |
| BR600DC | 150 | 6 |
Selecting the right option
Choose the size from the camlock fitting it will close: a dust cap is sized to match the coupling size, so a 50 mm dust cap goes with a 50 mm male adaptor. Match the body material to the fitting as well. Dixon states that no standard exists for the 15 mm (1/2 in) and 200 mm (8 in) camlock sizes and that these sizes generally do not interchange with other manufacturers (manufacturer-stated). Dixon's size table also prints a working pressure beside each size, but Dixon states that dust caps and dust plugs are not to be used in any pressure applications (manufacturer-stated), so treat this dust cap as a cover only and never as a pressure seal.
