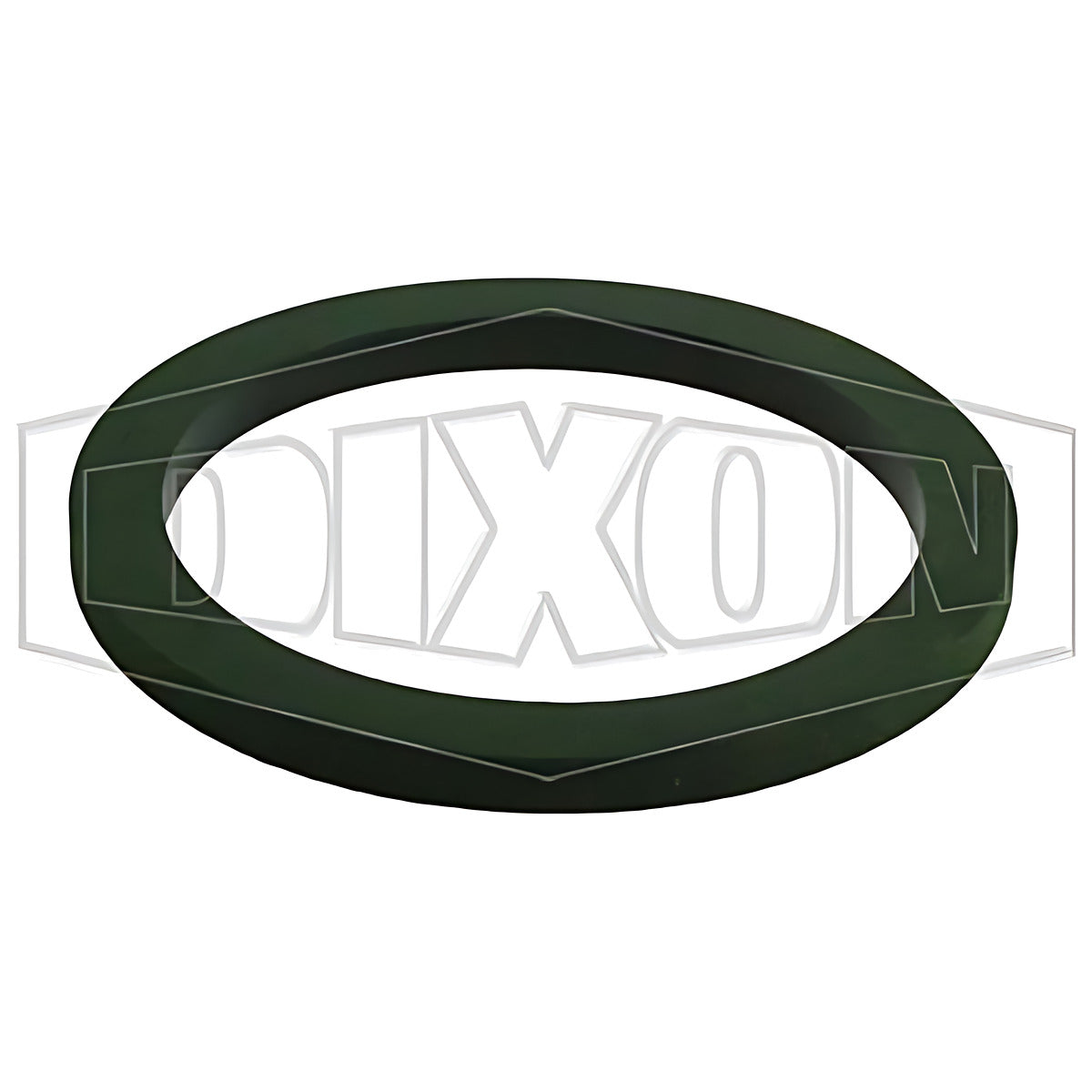

Dixon 100-G-VI 1" (25 mm) Cam & Groove Gasket FKM-A
Available
This Dixon cam and groove (camlock) gasket is made from FKM-A and carries the -VI code in Dixon's catalogue (manufacturer-stated). It is available in 12 coupling sizes, from 15 mm (1/2 in) to 200 mm (8 in).
Dixon lists FKM-A in two gasket codes, -VI and -VIA, and the two codes carry different colour markings in Dixon's colour code table. This page covers the -VI part numbers shown in the table below. Dixon's table gives nominal outside diameter, inside diameter and thickness for each size (manufacturer-stated).
Where this product is used
- Replacement gasket for Dixon cam and groove couplings and adaptors, 15 mm to 200 mm.
- Camlock joints where FKM-A suits the media; check the media against the material before use.
Features
- Material: FKM-A (manufacturer-stated)
- Nominal outside diameter, inside diameter and thickness listed for every size in Dixon's gasket dimension chart (manufacturer-stated)
- Coupling sizes in this listing: 15, 20, 25, 32, 40, 50, 65, 75, 100, 125, 150, 200 mm
Common specifications
| Specification | Detail |
|---|---|
| Material | FKM-A |
| Fits | Dixon cam and groove (camlock) couplings, sized in mm |
| Sizes | 15 mm (1/2 in), 20 mm (3/4 in), 25 mm (1 in), 32 mm (1-1/4 in), 40 mm (1-1/2 in), 50 mm (2 in), 65 mm (2-1/2 in), 75 mm (3 in), 100 mm (4 in), 125 mm (5 in), 150 mm (6 in), 200 mm (8 in) |
| Dimensions | Nominal outside diameter, inside diameter and thickness per size (table below) |
Key specifications
| Dixon part number | Size | Outside dia. (mm) | Inside dia. (mm) | Thickness (mm) |
|---|---|---|---|---|
| 50-G-VI | 1/2" (15 mm) | 26.19 | 17.46 | 3.96 |
| 75-G-VI | 3/4" (20 mm) | 34.93 | 22.23 | 5.54 |
| 100-G-VI | 1" (25 mm) | 39.69 | 26.98 | 6.35 |
| 125-G-VI | 1-1/4" (32 mm) | 49.21 | 34.53 | 6.35 |
| 150-G-VI | 1-1/2" (40 mm) | 55.56 | 41.28 | 6.35 |
| 200-G-VI | 2" (50 mm) | 66.68 | 50.80 | 6.35 |
| 250-G-VI | 2-1/2" (65 mm) | 79.38 | 60.33 | 6.35 |
| 300-G-VI | 3" (75 mm) | 94.46 | 78.20 | 6.35 |
| 400-G-VI | 4" (100 mm) | 123.83 | 101.60 | 6.35 |
| 500-G-VI | 5" (125 mm) | 150.81 | 123.83 | 6.35 |
| 600-G-VI | 6" (150 mm) | 179.39 | 152.40 | 6.35 |
| 800-G-VI | 8" (200 mm) | 236.54 | 206.38 | 8.71 |
Dimensions are the nominal figures in Dixon's camlock gasket dimension chart, listed by coupling size.
Selecting the right option
Start with the coupling size. The sizes in the table are camlock coupling sizes in mm, and each gasket part number is built from the size code (for example 100-G for 25 mm). Then check the material against the media you will handle, because the gasket is the part in contact with the product. Dixon notes that other manufacturers use different colour-code systems, so its colour chart should not be used to identify gaskets of unknown origin (manufacturer-stated). Dixon's colour code table lists the -VI code as green with no stripe and the -VIA code as black with one yellow stripe (manufacturer-stated). If colour matters for identification, check the part number printed in the table rather than the colour alone, and ask us if you need the -VIA version. Dixon adds that no interchange standard exists for the 1/2 in, 5 in and 8 in fittings (15 mm, 125 mm and 200 mm), so gaskets in those sizes are not suitable for use in other manufacturers' couplings (manufacturer-stated).
Related products
Related Dixon camlock gaskets: Dixon Cam & Groove Gasket Buna-N Black/1 Blue Stripe, Dixon Cam & Groove Gasket PTFE Encapsulated FKM Translucent/Black and Dixon Cam & Groove Gasket Silicone Red/No Stripe.
