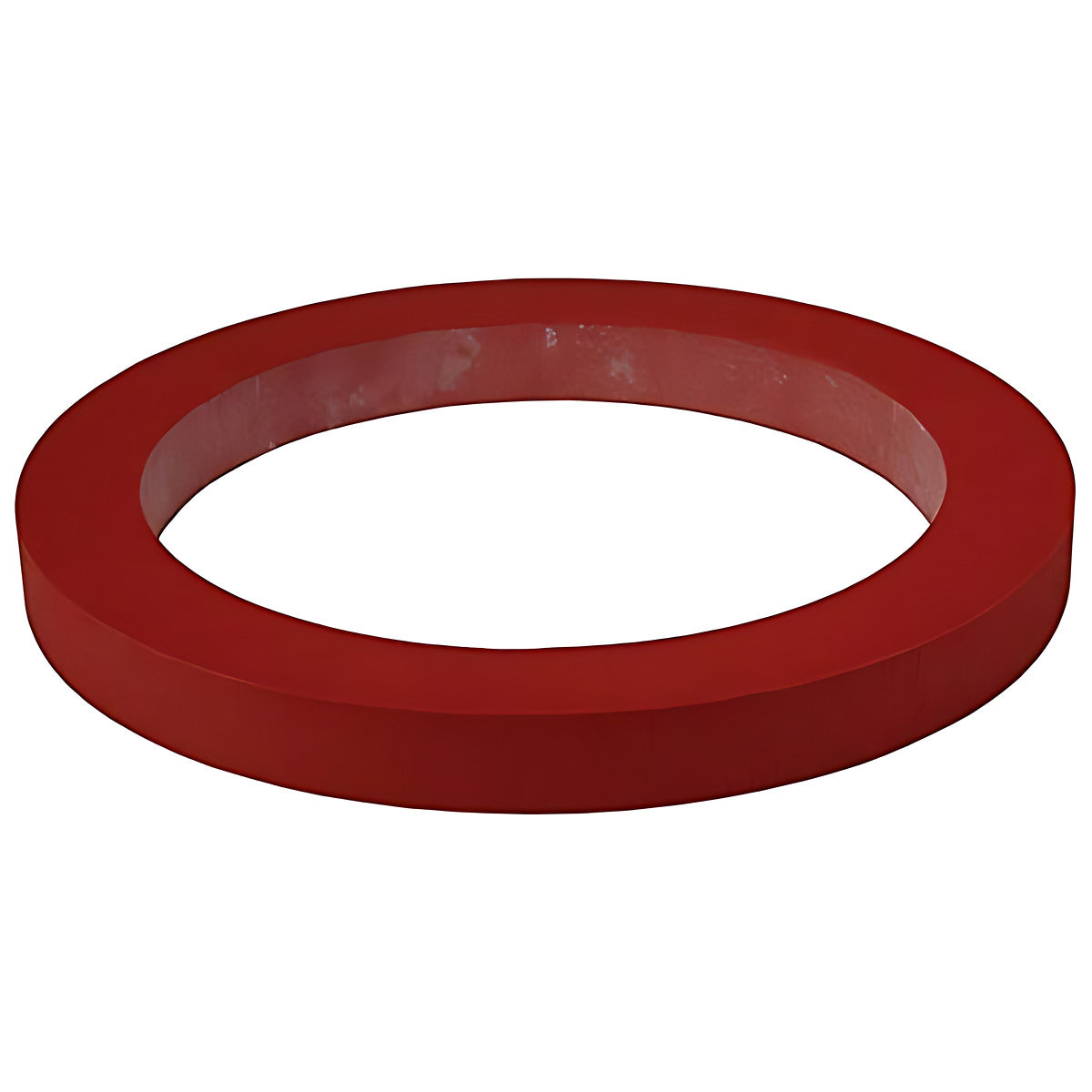

Dixon 200-G-SIL 2" (50 mm) Cam & Groove Gasket Silicone Red/No Stripe

This Dixon cam and groove (camlock) gasket is made from silicone and is red with no stripe (manufacturer-stated). This listing covers the 50 mm (2 in) and 75 mm (3 in) couplings.

The part numbers are 200-G-SIL and 300-G-SIL. Dixon's gasket chart also lists a silicone gasket for the 100 mm coupling (400-G-SIL) (manufacturer-stated), and the same size codes are used for Buna-N, neoprene and ethylene propylene.

Where this product is used

• Replacement gasket for Dixon cam and groove couplings and adaptors in the 50 mm and 75 mm sizes.
• Camlock joints where silicone suits the media; check the media against the material before use.

Features

• Material: Silicone (manufacturer-stated)
• Colour code: Red, no stripe (manufacturer-stated)
• Nominal outside diameter, inside diameter and thickness listed for every size in Dixon's gasket dimension chart (manufacturer-stated)
• Coupling sizes in this listing: 50, 75 mm

Common specifications

Key specifications

Dimensions are the nominal figures in Dixon's camlock gasket dimension chart, listed by coupling size.

Selecting the right option

Start with the coupling size. The sizes in the table are camlock coupling sizes in mm, and each gasket part number is built from the size code (for example 100-G for 25 mm). Then check the material against the media you will handle, because the gasket is the part in contact with the product. Dixon notes that other manufacturers use different colour-code systems, so its colour chart should not be used to identify gaskets of unknown origin (manufacturer-stated). For service at higher temperatures with a PTFE face, Dixon lists PTFE encapsulated silicone gaskets, which are a separate product.
