Dixon 200-G-EPR 2" (50 mm) Cam & Groove Gasket Ethylene Propylene Black/1 White Stripe
Available

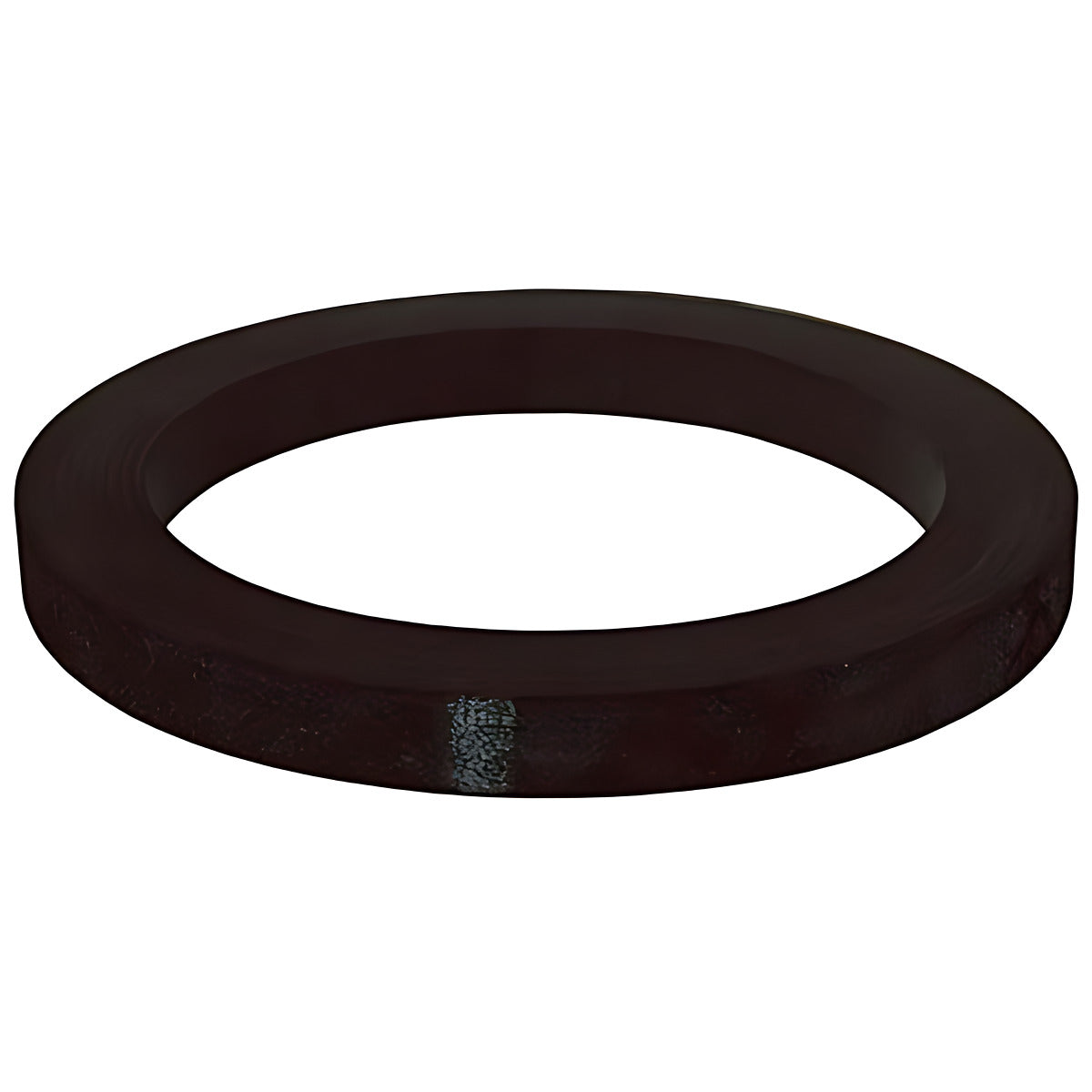

This Dixon cam and groove (camlock) gasket is made from ethylene propylene (EPR) and carries a black body with one white stripe (manufacturer-stated). It is listed in 7 coupling sizes, from 20 mm (3/4 in) to 100 mm (4 in).
Dixon's gasket chart gives the same size codes for every material, so the ethylene propylene gasket for the 25 mm coupling is 100-G-EPR, alongside 100-G-BU in Buna-N and 100-G-NE in neoprene (manufacturer-stated).
Where this product is used
- Replacement gasket for Dixon cam and groove couplings and adaptors from 20 mm to 100 mm.
- Camlock joints where ethylene propylene suits the media; check the media against the material before use.
Features
- Material: Ethylene propylene (EPR) (manufacturer-stated)
- Colour code: Black, 1 white stripe (manufacturer-stated)
- Nominal outside diameter, inside diameter and thickness listed for every size in Dixon's gasket dimension chart (manufacturer-stated)
- Coupling sizes in this listing: 20, 25, 40, 50, 65, 75, 100 mm
Common specifications
| Specification | Detail |
|---|---|
| Material | Ethylene propylene (EPR) |
| Colour code | Black, 1 white stripe |
| Fits | Dixon cam and groove (camlock) couplings, sized in mm |
| Sizes | 20 mm (3/4 in), 25 mm (1 in), 40 mm (1-1/2 in), 50 mm (2 in), 65 mm (2-1/2 in), 75 mm (3 in), 100 mm (4 in) |
| Dimensions | Nominal outside diameter, inside diameter and thickness per size (table below) |
Key specifications
| Dixon part number | Size | Outside dia. (mm) | Inside dia. (mm) | Thickness (mm) |
|---|---|---|---|---|
| 75-G-EPR | 3/4" (20 mm) | 34.93 | 22.23 | 5.54 |
| 100-G-EPR | 1" (25 mm) | 39.69 | 26.98 | 6.35 |
| 150-G-EPR | 1-1/2" (40 mm) | 55.56 | 41.28 | 6.35 |
| 200-G-EPR | 2" (50 mm) | 66.68 | 50.80 | 6.35 |
| 250-G-EPR | 2-1/2" (65 mm) | 79.38 | 60.33 | 6.35 |
| 300-G-EPR | 3" (75 mm) | 94.46 | 78.20 | 6.35 |
| 400-G-EPR | 4" (100 mm) | 123.83 | 101.60 | 6.35 |
Dimensions are the nominal figures in Dixon's camlock gasket dimension chart, listed by coupling size.
Selecting the right option
Start with the coupling size. The sizes in the table are camlock coupling sizes in mm, and each gasket part number is built from the size code (for example 100-G for 25 mm). Then check the material against the media you will handle, because the gasket is the part in contact with the product. Dixon notes that other manufacturers use different colour-code systems, so its colour chart should not be used to identify gaskets of unknown origin (manufacturer-stated). Ethylene propylene is not a general substitute for Buna-N or FKM, so confirm the media with the material before you swap one for the other.
Related products
Related Dixon camlock gaskets: Dixon Cam & Groove Gasket Buna-N Black/1 Blue Stripe, Dixon Cam & Groove Gasket Neoprene Black/1 Red Stripe and Dixon Cam & Groove Gasket Silicone Red/No Stripe.
