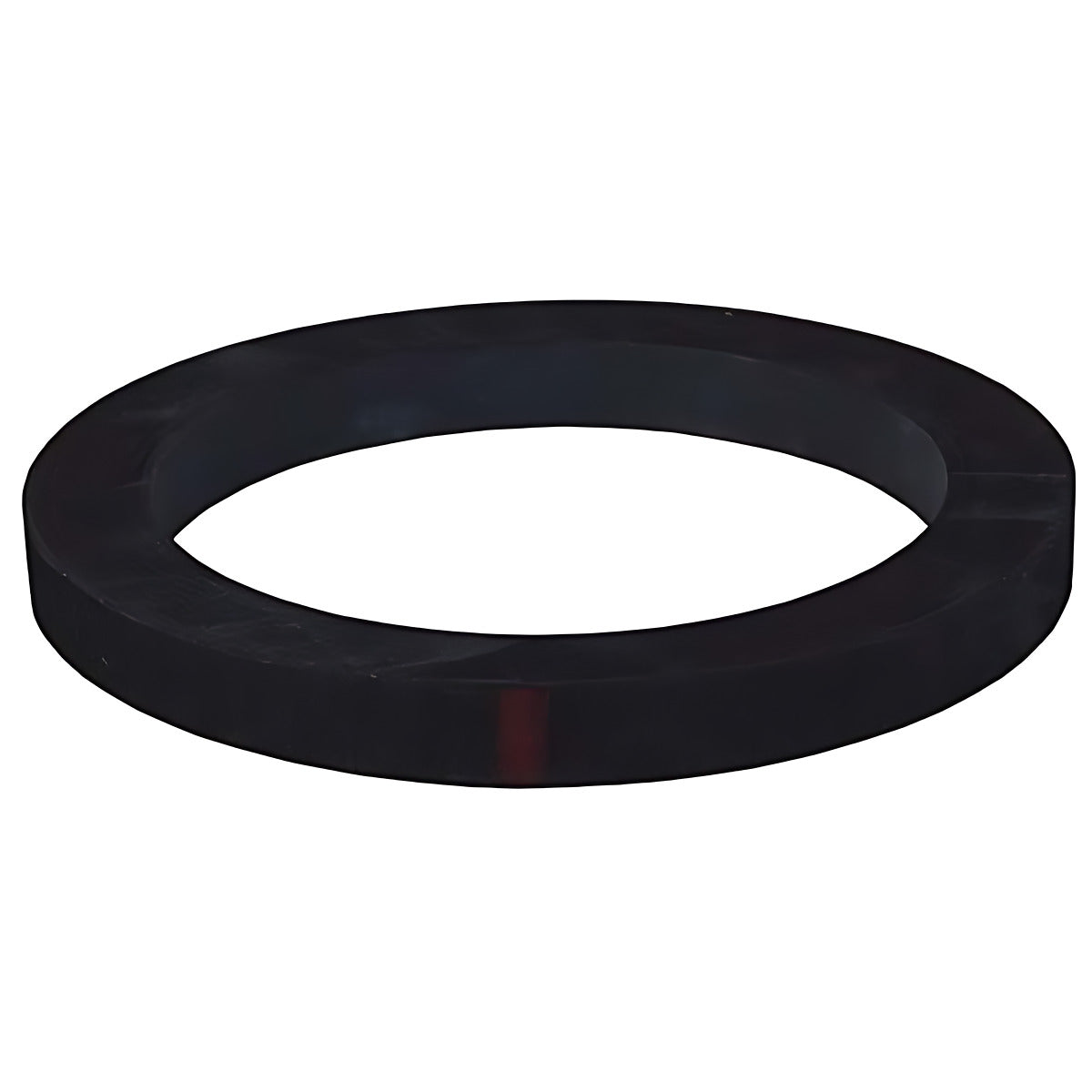

Dixon 75-G-NE 3/4" (20 mm) Cam & Groove Gasket Neoprene Black/1 Red Stripe
Out of stock
This Dixon cam and groove (camlock) gasket is made from neoprene and is colour coded black with one red stripe (manufacturer-stated). The listing covers 7 coupling sizes, from 20 mm (3/4 in) to 100 mm (4 in).
Part numbers follow the size code plus -G-NE, for example 100-G-NE for the 25 mm coupling. Dixon lists a white neoprene version (-WNE) separately and describes it as an FDA approved material (manufacturer-stated).
Where this product is used
- Replacement gasket for Dixon cam and groove couplings and adaptors from 20 mm to 100 mm.
- Camlock joints where neoprene suits the media; check the media against the material before use.
Features
- Material: Neoprene (manufacturer-stated)
- Colour code: Black, 1 red stripe (manufacturer-stated)
- Nominal outside diameter, inside diameter and thickness listed for every size in Dixon's gasket dimension chart (manufacturer-stated)
- Coupling sizes in this listing: 20, 25, 40, 50, 65, 75, 100 mm
Common specifications
| Specification | Detail |
|---|---|
| Material | Neoprene |
| Colour code | Black, 1 red stripe |
| Fits | Dixon cam and groove (camlock) couplings, sized in mm |
| Sizes | 20 mm (3/4 in), 25 mm (1 in), 40 mm (1-1/2 in), 50 mm (2 in), 65 mm (2-1/2 in), 75 mm (3 in), 100 mm (4 in) |
| Dimensions | Nominal outside diameter, inside diameter and thickness per size (table below) |
Key specifications
| Dixon part number | Size | Outside dia. (mm) | Inside dia. (mm) | Thickness (mm) |
|---|---|---|---|---|
| 75-G-NE | 3/4" (20 mm) | 34.93 | 22.23 | 5.54 |
| 100-G-NE | 1" (25 mm) | 39.69 | 26.98 | 6.35 |
| 150-G-NE | 1-1/2" (40 mm) | 55.56 | 41.28 | 6.35 |
| 200-G-NE | 2" (50 mm) | 66.68 | 50.80 | 6.35 |
| 250-G-NE | 2-1/2" (65 mm) | 79.38 | 60.33 | 6.35 |
| 300-G-NE | 3" (75 mm) | 94.46 | 78.20 | 6.35 |
| 400-G-NE | 4" (100 mm) | 123.83 | 101.60 | 6.35 |
Dimensions are the nominal figures in Dixon's camlock gasket dimension chart, listed by coupling size.
Selecting the right option
Start with the coupling size. The sizes in the table are camlock coupling sizes in mm, and each gasket part number is built from the size code (for example 100-G for 25 mm). Then check the material against the media you will handle, because the gasket is the part in contact with the product. Dixon notes that other manufacturers use different colour-code systems, so its colour chart should not be used to identify gaskets of unknown origin (manufacturer-stated). If you need a white gasket, the white neoprene version is listed as a separate product.
