Dixon 300-HRP-SP 75-125 mm (3 to 5") Handle, Ring and Pin 316 Sintered SS

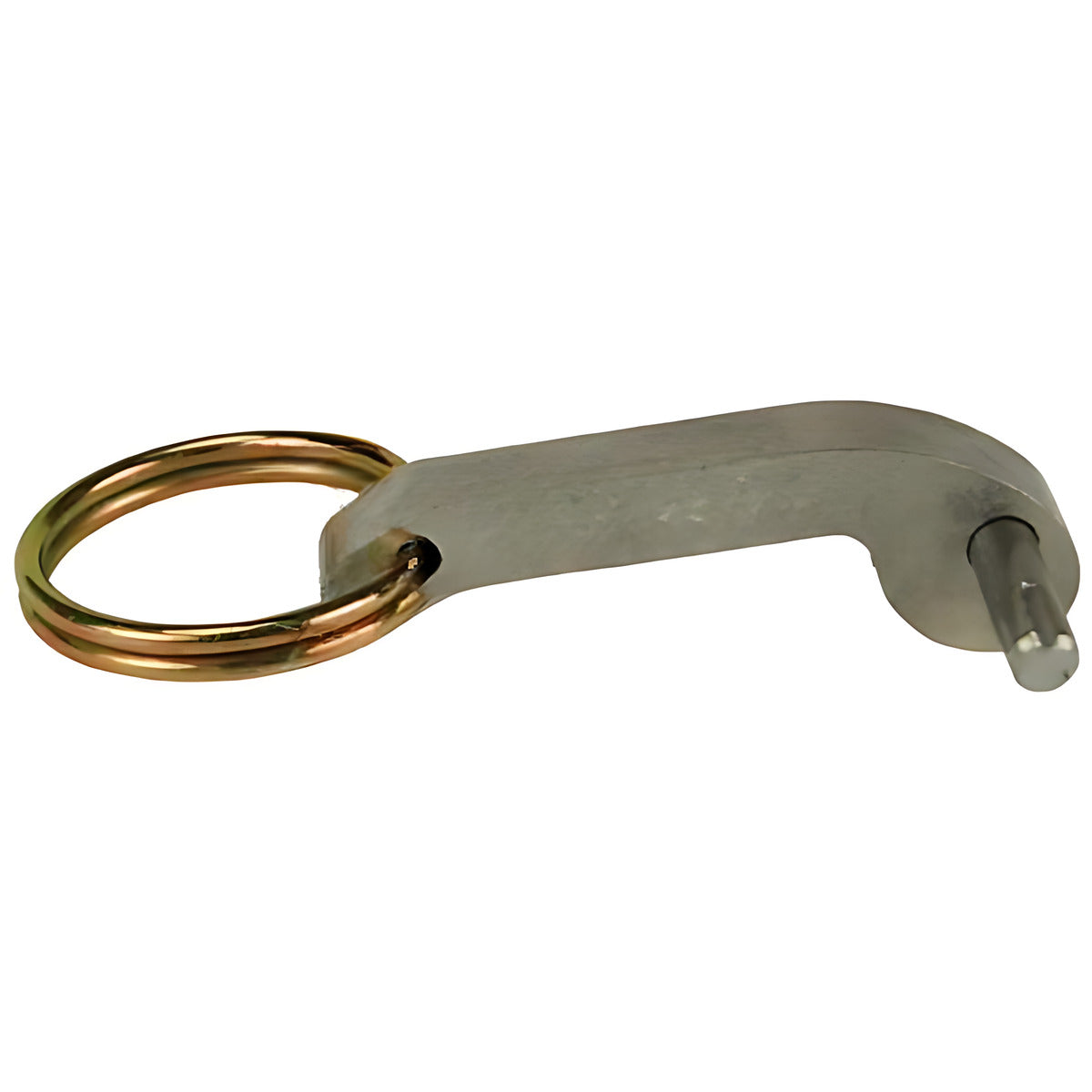

This Dixon handle assembly is a 316 sintered stainless steel cam arm with pull ring and pin, used to replace a handle on a cam and groove coupling. It is sold in three size bands: 32-65 mm (1-1/4 to 2-1/2 in), 75-125 mm (3 to 5 in) and 150 mm (6 in).

Dixon's cam and groove brochure lists 316 sintered stainless steel cam arm, ring and pin assemblies for 1-1/4 in to 2-1/2 in (200-HRP-SP) and 3 in to 5 in (300-HRP-SP) couplings. Stainless steel pins are standard on its assemblies and pull rings are standard from 1-1/4 in up (manufacturer-stated).

Where this product is used

• Replacing a bent, worn or broken cam arm on a stainless steel cam and groove coupling.
• Maintenance spares for stainless steel hose assemblies and tank fittings in the 32 to 150 mm range.

Features

• 316 sintered stainless steel cam arm with pull ring and pin (manufacturer-stated)
• Pull rings are standard on sizes 1-1/4 in and up (manufacturer-stated)
• Stainless steel pins are standard on Dixon handle assemblies (manufacturer-stated)
• Three size bands: 32-65 mm, 75-125 mm and 150 mm

Common specifications

Key specifications

Dixon's brochure lists the 316 sintered stainless steel assemblies for 1-1/4 to 2-1/2 in and 3 to 5 in. A 6 in sintered assembly is not shown there; Dixon's Australian catalogue lists a 150 mm sintered stainless steel handle, ring and pin under a different part number.

Selecting the right option

Match the handle to the coupling, not only to the size. Dixon states that its handles do not interchange with other manufacturers' handles or couplers (manufacturer-stated). Dixon also publishes more than one handle series, so quote the part number of the coupling you are repairing if you are unsure which handle it takes.
