Dixon 200-HRP-SI 32-65 mm (1-1/4 to 2-1/2") Handle, Ring and Pin Investment 316 SS

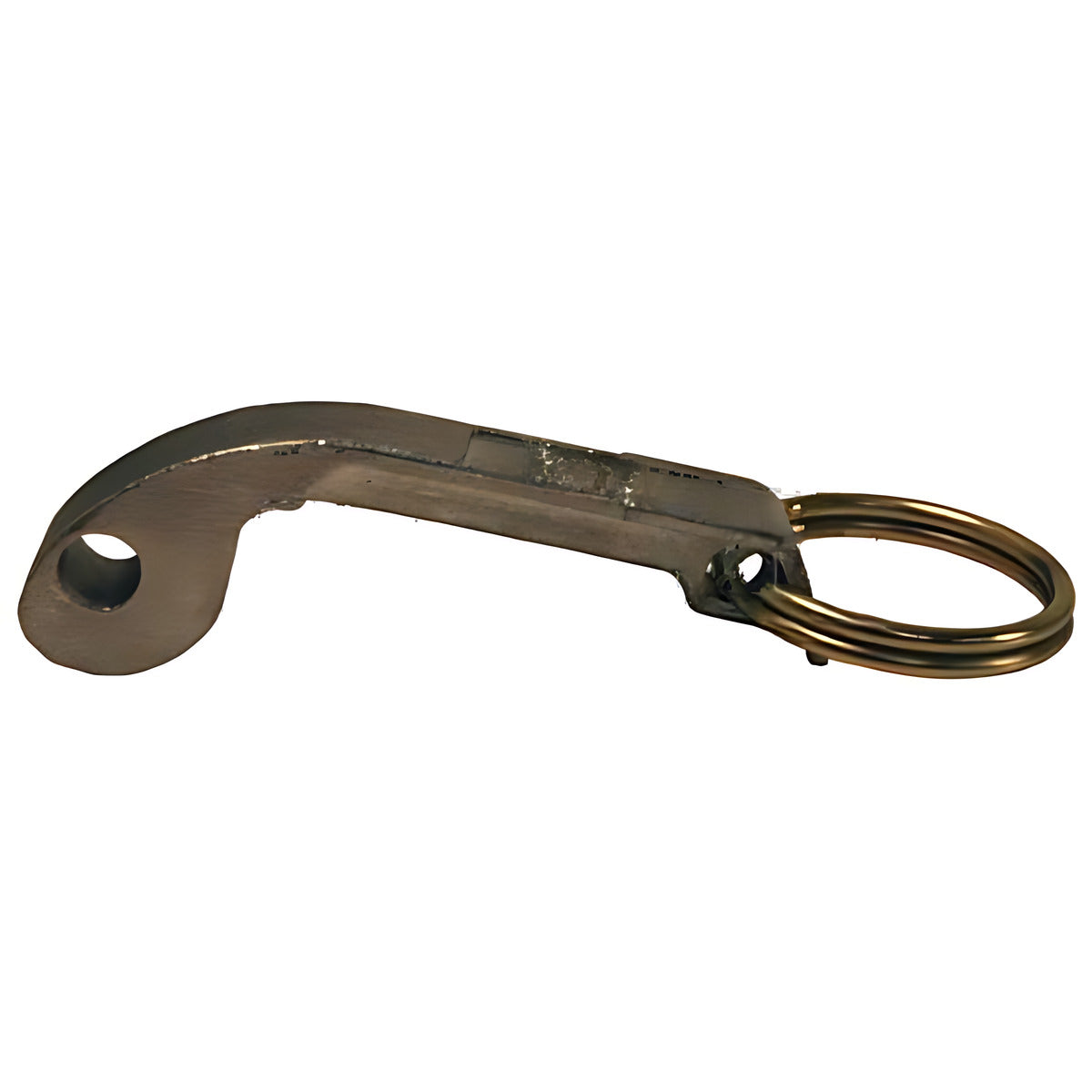

This Dixon handle assembly is an investment cast 316 stainless steel cam arm with pull ring and pin, used to replace a handle on a cam and groove coupling. It is sold in three size bands: 32-65 mm (1-1/4 to 2-1/2 in), 75-125 mm (3 to 5 in) and 150 mm (6 in).

Dixon's cam and groove brochure lists 600-HRP-SI as the 316 investment stainless steel cam arm, ring and pin assembly for 6 in couplings. Stainless steel pins are standard on its handle assemblies and the pull ring is trivalent chrome plated steel (manufacturer-stated).

Where this product is used

• Replacing a bent, worn or broken cam arm on a stainless steel cam and groove coupling.
• Maintenance spares for stainless steel hose assemblies and tank fittings in the 32 to 150 mm range.

Features

• 316 investment stainless steel cam arm, ring and pin (manufacturer-stated)
• Stainless steel pins are standard on Dixon handle assemblies (manufacturer-stated)
• Trivalent chrome plated steel pull ring (manufacturer-stated)
• Three size bands: 32-65 mm, 75-125 mm and 150 mm

Common specifications

Key specifications

Dixon's cam and groove brochure lists its 316 investment stainless steel assemblies as 200-HSCRP-SI (2 in), 300-HSCRP-SI (3 in) and 600-HRP-SI (6 in). Only the 600-HRP-SI number matches this product line exactly, so confirm the 200-HRP-SI and 300-HRP-SI fit with us before ordering.

Selecting the right option

Match the handle to the coupling, not only to the size. Dixon states that its handles do not interchange with other manufacturers' handles or couplers (manufacturer-stated). Dixon also publishes more than one handle series, so quote the part number of the coupling you are repairing if you are unsure which handle it takes.
