Dixon BRSS200F 2" (50 mm) Brass Camlock Type F Adaptor x Male BSP
Available

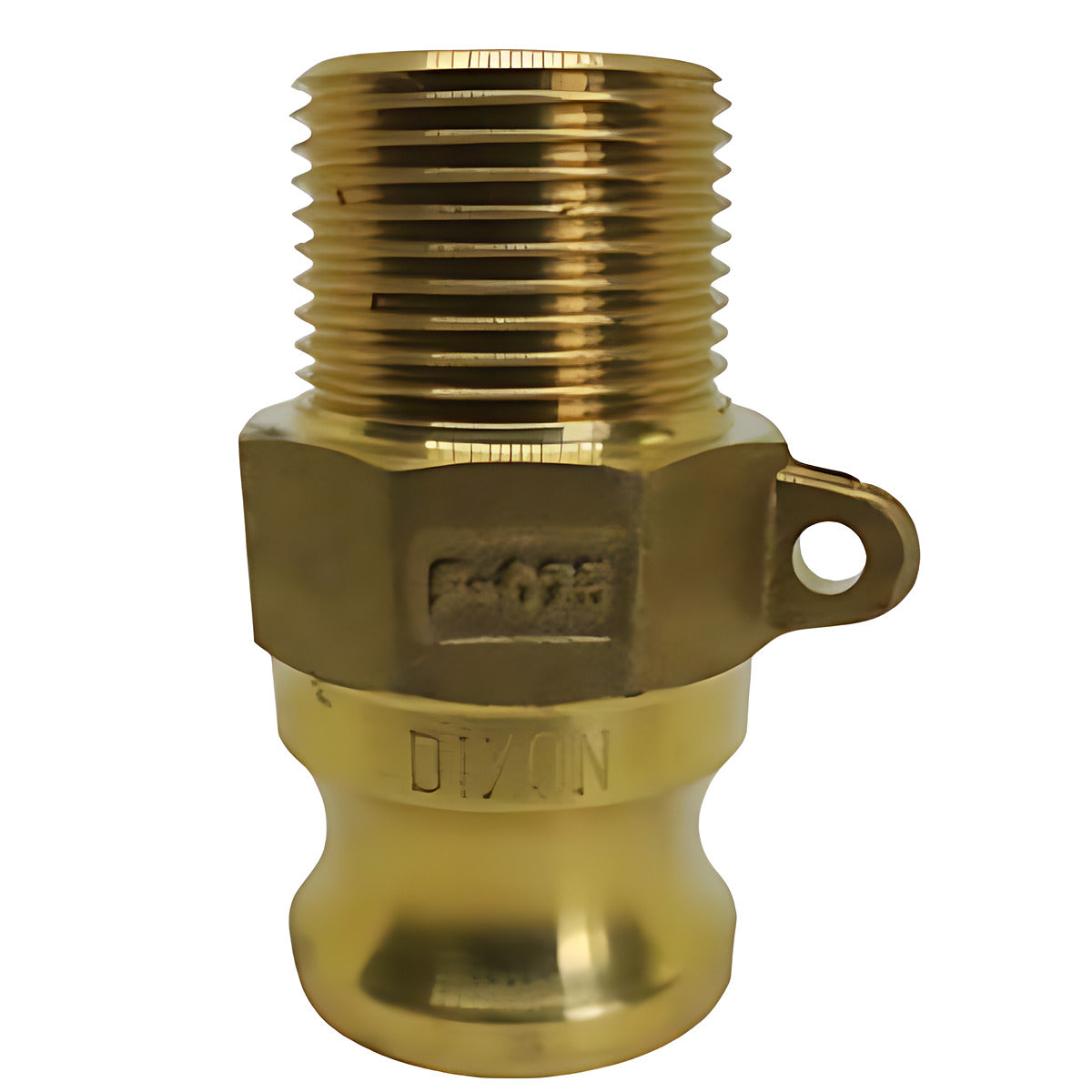

This Dixon camlock is an adaptor with a male BSP thread in brass. In Dixon's cam and groove system it is the male half of the joint: it slides into a coupler and the coupler cam levers are pressed down to lock it (manufacturer-stated). The store lists 7 sizes, from 3/4" (20 mm) to 4" (100 mm).
Dixon lists the body as brass grade UNS C38500 to ASTM-B455 (manufacturer-stated). An adaptor carries no seal of its own: the standard seal for this material, nitrile Buna rubber, sits in the mating coupler, and Dixon bases the pressure rating on the seal of the mating part (manufacturer-stated).
Dixon rates the sizes in the store at 250 PSI for 20, 25, 40 and 50 mm; 150 PSI for 65 mm; 125 PSI for 75 mm; 100 PSI for 100 mm (manufacturer-stated). Dixon bases its pressure ratings on mating Dixon fittings at an ambient temperature of 21 degrees C with the standard seal, and asks you to consult Dixon for higher temperatures or other unusual conditions (manufacturer-stated).
Dixon states that camlock couplings are designed for use with liquids and must not be used in compressed air or steam applications (manufacturer-stated).
Where this product is used
- Quick-connect transfer of liquids such as cooling water, fuels, chemicals, adhesives and dyes through hose, pipe, tubing and tanks (manufacturer-stated).
- Giving a female-threaded port or fitting a quick-connect adaptor end, so a hose with a coupler can be connected to it.
- Hose and pipework where the brass body and the nitrile Buna rubber seal suit the media; check both against your media before ordering.
Features
- Type F: adaptor x male BSP (manufacturer-stated)
- Body: brass, grade UNS C38500 to ASTM-B455 (manufacturer-stated)
- Seal fitted in the mating coupler: nitrile Buna rubber; pressure rating is based on the seal of the mating part (manufacturer-stated)
- Working pressure: 250 PSI for 20, 25, 40 and 50 mm; 150 PSI for 65 mm; 125 PSI for 75 mm; 100 PSI for 100 mm (manufacturer-stated)
- Interchanges with products made to commercial item description A-A-59326D (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Configuration | Type F, adaptor x male BSP |
| Body | Brass grade UNS C38500 to ASTM-B455 (manufacturer-stated) |
| Connection | Male BSP |
| Seal in mating coupler | Nitrile Buna rubber (manufacturer-stated) |
| Working pressure | 250 PSI for 20, 25, 40 and 50 mm; 150 PSI for 65 mm; 125 PSI for 75 mm; 100 PSI for 100 mm (manufacturer-stated) |
| Interchange | Commercial item description A-A-59326D (manufacturer-stated) |
| Sizes in store | 3/4" (20 mm), 1" (25 mm), 1-1/2" (40 mm), 2" (50 mm), 2-1/2" (65 mm), 3" (75 mm), 4" (100 mm) |
Key specifications
| Dixon part number | Size | Working pressure |
|---|---|---|
| BRSS075F | 3/4" (20 mm) | 250 PSI |
| BRSS100F | 1" (25 mm) | 250 PSI |
| BRSS150F | 1-1/2" (40 mm) | 250 PSI |
| BRSS200F | 2" (50 mm) | 250 PSI |
| BRSS250F | 2-1/2" (65 mm) | 150 PSI |
| BRSS300F | 3" (75 mm) | 125 PSI |
| BRSS400F | 4" (100 mm) | 100 PSI |
Pressure ratings are the figures Dixon prints for this material and size (manufacturer-stated).
Selecting the right option
Type F has a male BSP thread, so it screws into a female BSP port. It connects to a Type B, C or D coupler of the same size. Check your media against the brass body and the nitrile Buna rubber seal before ordering. Dixon states that dust caps and dust plugs must not be used in any pressure application (manufacturer-stated).
Related products
Related Dixon products: Dixon Brass Standard BSP Cam & Groove Type C Coupler x Hose Shank, Cam & Groove Type F Adaptor x Male BSP Aluminium Die Cast and Dixon Cam & Groove Type F Adaptor x Male BSP Stainless. Dust caps and plugs for the unused end: Dixon Brass Standard BSP Cam & Groove Type DC Dust Cap.
