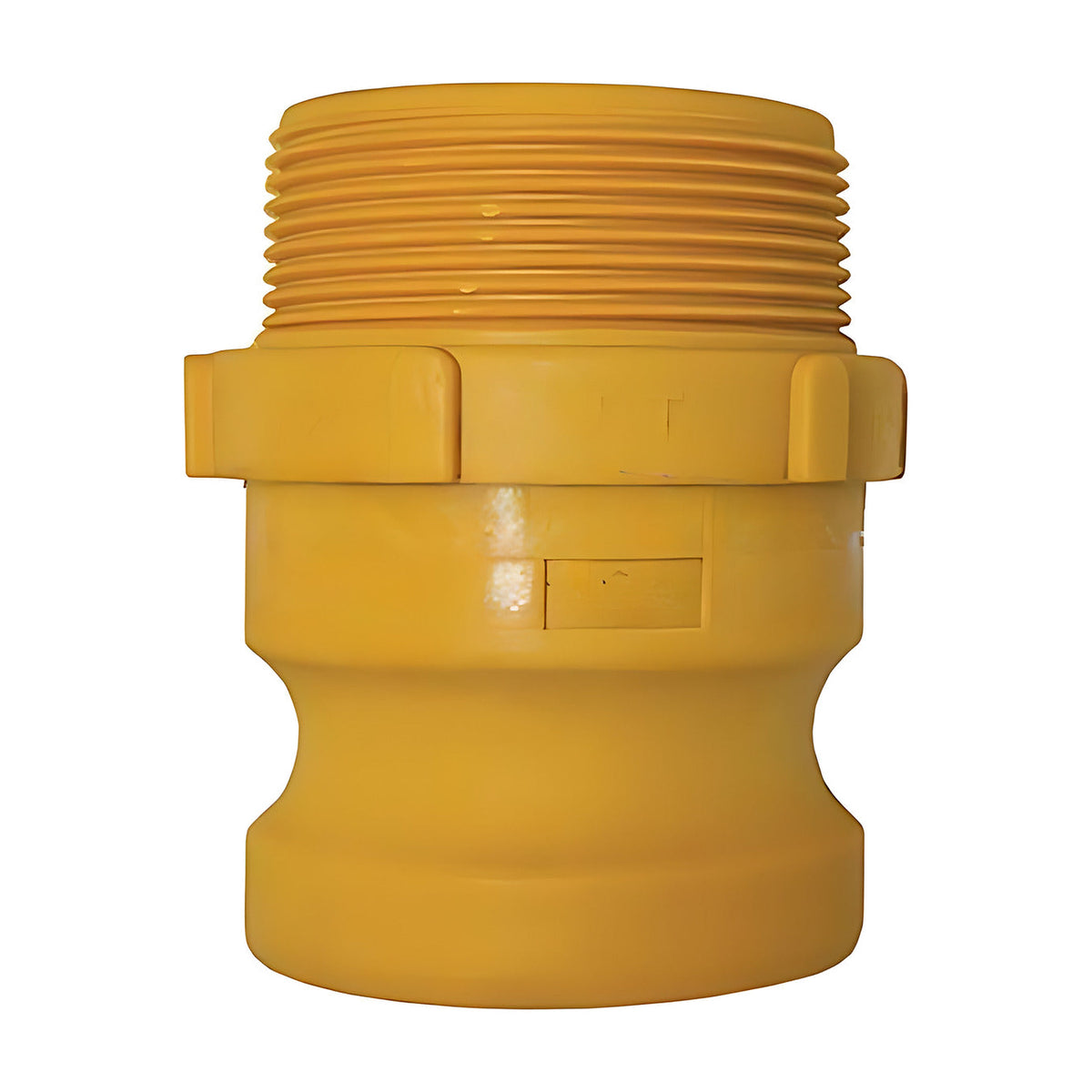

Dixon NGF100A 1" (25 mm) Glass-Filled Nyglass Camlock Type F Adaptor x Male BSP
Available
This Dixon camlock is an adaptor with a male BSP thread in 30% glass-filled nyglass. In Dixon's cam and groove system it is the male half of the joint: it slides into a coupler and the coupler cam levers are pressed down to lock it (manufacturer-stated). The store lists 8 sizes, from 1/2" (15 mm) to 4" (100 mm).
Dixon lists the body as nyglass, 30% glass filled (manufacturer-stated). An adaptor carries no seal of its own: the standard seal for this material, EPDM, sits in the mating coupler, and Dixon bases the pressure rating on the seal of the mating part (manufacturer-stated).
Dixon rates the other sizes in the store at 125 PSI for 15 and 20 mm; 100 PSI for 32, 40 and 50 mm; 60 PSI for 75 mm; 50 PSI for 100 mm (manufacturer-stated). Dixon's rating table for polypropylene and nyglass has no figure for 25 mm, so ask us for the 25 mm rating before you specify it. Dixon bases its pressure ratings on mating Dixon fittings at an ambient temperature of 21 degrees C with the standard seal, and asks you to consult Dixon for higher temperatures or other unusual conditions (manufacturer-stated).
Dixon states that camlock couplings are designed for use with liquids and must not be used in compressed air or steam applications (manufacturer-stated). Dixon also states that polypropylene and nyglass fittings should not be mixed with aluminium fittings (manufacturer-stated).
Where this product is used
- Quick-connect transfer of liquids such as cooling water, fuels, chemicals, adhesives and dyes through hose, pipe, tubing and tanks (manufacturer-stated).
- Giving a female-threaded port or fitting a quick-connect adaptor end, so a hose with a coupler can be connected to it.
- Hose and pipework where the nyglass body and the EPDM seal suit the media; check both against your media before ordering.
Features
- Type F: adaptor x male BSP (manufacturer-stated)
- Body: nyglass, 30% glass filled (manufacturer-stated)
- Seal fitted in the mating coupler: EPDM; pressure rating is based on the seal of the mating part (manufacturer-stated)
- Working pressure: 125 PSI for 15 and 20 mm; 100 PSI for 32, 40 and 50 mm; 60 PSI for 75 mm; 50 PSI for 100 mm; no figure is printed for 25 mm (manufacturer-stated)
- Interchanges with products made to commercial item description A-A-59326D (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Configuration | Type F, adaptor x male BSP |
| Body | Nyglass, 30% glass filled (manufacturer-stated) |
| Connection | Male BSP |
| Seal in mating coupler | EPDM (manufacturer-stated) |
| Working pressure | 125 PSI for 15 and 20 mm; 100 PSI for 32, 40 and 50 mm; 60 PSI for 75 mm; 50 PSI for 100 mm; none printed for 25 mm (manufacturer-stated) |
| Interchange | Commercial item description A-A-59326D (manufacturer-stated) |
| Sizes in store | 1/2" (15 mm), 3/4" (20 mm), 1" (25 mm), 1-1/4" (32 mm), 1-1/2" (40 mm), 2" (50 mm), 3" (75 mm), 4" (100 mm) |
Key specifications
| Dixon part number | Size | Working pressure |
|---|---|---|
| NGF050A | 1/2" (15 mm) | 125 PSI |
| NGF075A | 3/4" (20 mm) | 125 PSI |
| NGF100A | 1" (25 mm) | Confirm with Dixon |
| NGF125A | 1-1/4" (32 mm) | 100 PSI |
| NGF150A | 1-1/2" (40 mm) | 100 PSI |
| NGF200A | 2" (50 mm) | 100 PSI |
| NGF300A | 3" (75 mm) | 60 PSI |
| NGF400A | 4" (100 mm) | 50 PSI |
Pressure ratings are the figures Dixon prints for this material and size (manufacturer-stated). The 25 mm size is not covered by the 15 to 20 mm and 32 to 50 mm bands in Dixon's polypropylene and nyglass rating table, so no figure is shown for it. Dixon footnotes NGF050A with: "Adaptor size is 20mm". The store size option for that part is 15 mm, so check the size you need before ordering.
Selecting the right option
Type F has a male BSP thread, so it screws into a female BSP port. It connects to a Type B, C or D coupler of the same size. Do not mix nyglass fittings with aluminium fittings (manufacturer-stated). Check your media against the glass-filled body and the EPDM seal; the polypropylene and nyglass ratings are lower than the metal ones and fall as the size goes up. Dixon footnotes the 15 mm part NGF050A as "Adaptor size is 20mm" (manufacturer-stated), which does not match the 15 mm size option in the store. Check the coupling size you need against the part number and ask us if you are unsure. For 25 mm, Dixon does not print a pressure figure in its Australian rating table; ask us before you specify it. Dixon states that dust caps and dust plugs must not be used in any pressure application (manufacturer-stated).
Related products
Related Dixon products: Dixon Nyglass Cam & Groove Type B Coupler x Male BSP, Dixon Nyglass Cam & Groove Type C Coupler x Hose Shank, Dixon Cam & Groove Type F Adaptor x Male BSP Polypropylene and Dixon Cam & Groove Type F Adaptor x Male BSP Stainless. Dust caps and plugs for the unused end: Dixon Nyglass Cam & Groove Type DC Dust Cap.
