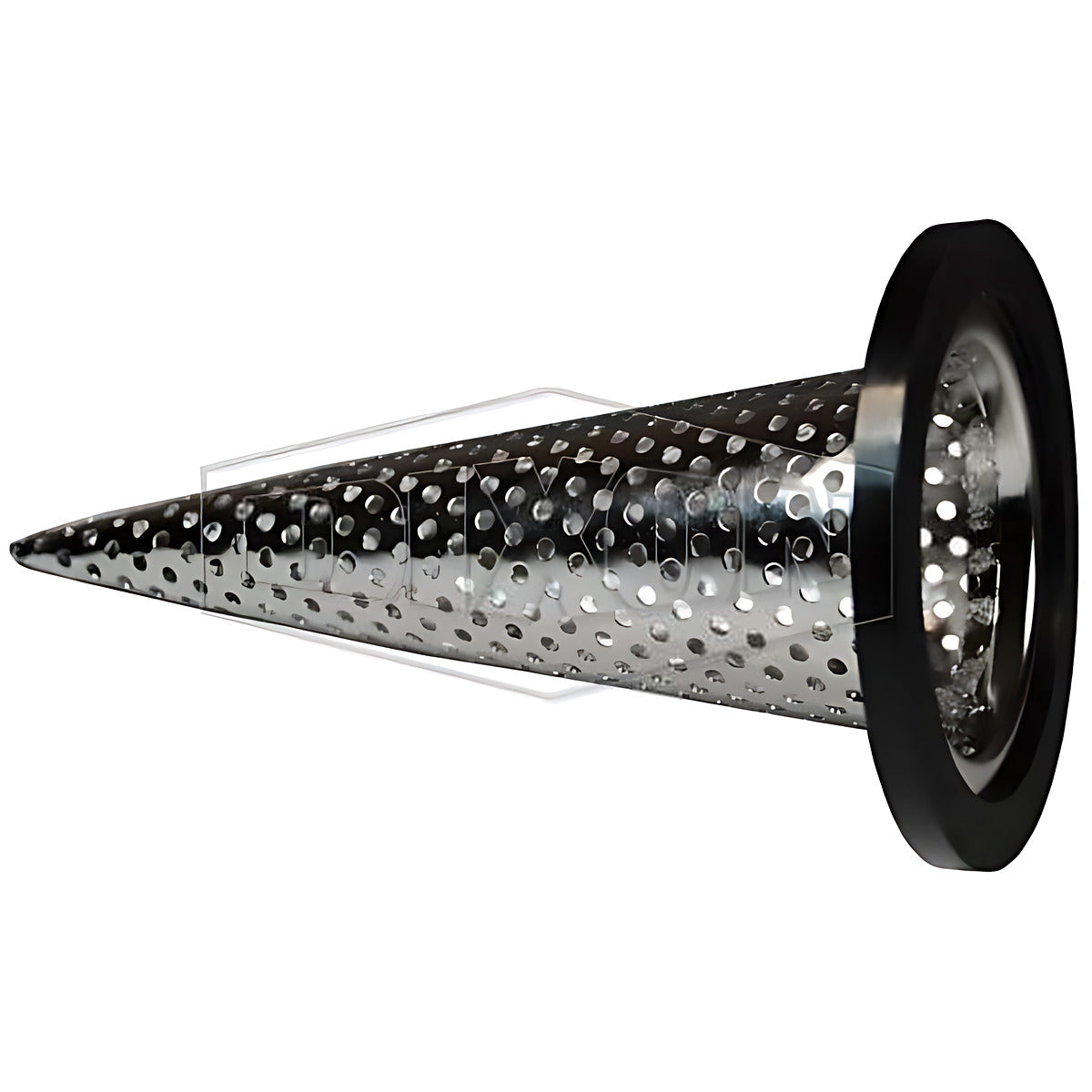

Dixon WH300-A 80 mm (3") Cam & Groove Witches Hat Strainer 304 Stainless Steel

This Dixon witches hat strainer is made from 304 stainless steel and has a nitrile buna gasket already attached. Dixon lists it for use with female camlock couplings (manufacturer-stated).

This listing covers two sizes: WH300-A for 80 mm (3 in) and WH400-A for 100 mm (4 in). Dixon lists matching replacement nitrile buna gaskets as WH300-G and WH400-G (manufacturer-stated).

Where this product is used

• Screening large debris on lines that end in a female camlock coupling; Dixon lists the strainer for use with female camlock couplings (manufacturer-stated).
• Hose suction and transfer lines where a coarse strainer can protect a pump or downstream equipment.

Features

• 304 stainless steel strainer (manufacturer-stated)
• Pre-attached nitrile buna gasket (manufacturer-stated)
• For use with female camlock couplings (manufacturer-stated)
• Two sizes: 80 mm (3 in) and 100 mm (4 in)

Common specifications

Key specifications

Selecting the right option

Match the strainer to the female coupler size: WH300-A is the 3 in size and WH400-A the 4 in size. Fine particles will pass a witches hat strainer, so choose a finer strainer if you need to protect equipment from small contaminants. Replacement gaskets are listed under the -G part numbers in the table.
