Dixon HA0640 1" Clamp Type / Tri-Clover External Crimp Stem

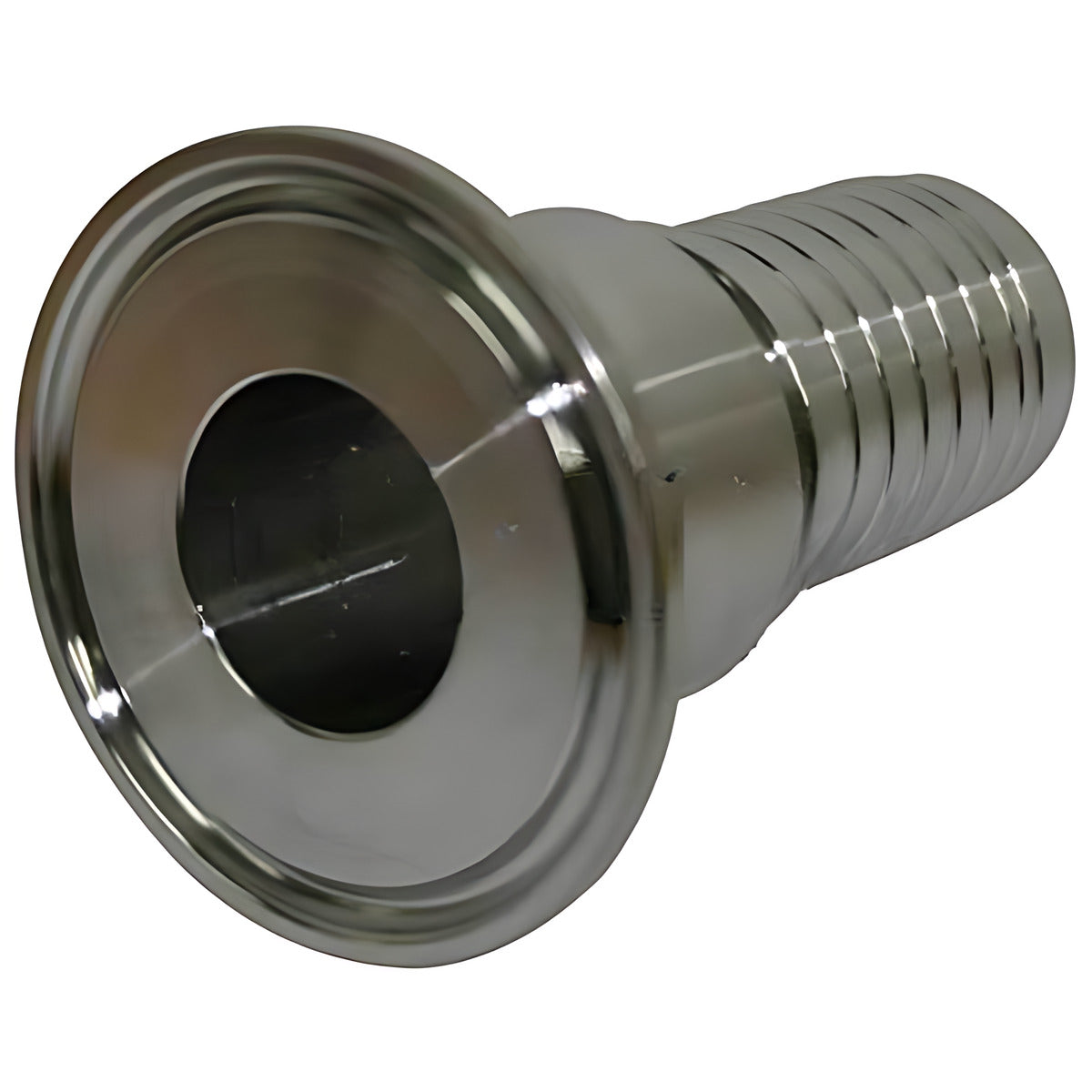

This Dixon Holedall stem has a male clamp-type (Tri-Clover) end and an external crimp hose end, in 316 stainless steel. Dixon lists it in six sizes from 1" (HA0640) to 4" (HA0645), and it is made for inch-bore hose.

The stem is crimped onto the hose with a Holedall external crimp ferrule and joins a mating clamp-type fitting with a sanitary clamp and gasket. Dixon states that its stems are made to suit inch-bore hose and not metric hose, so measure the hose inside diameter before you order (manufacturer-stated).

Where this product is used

• Hygienic hose assemblies that connect to clamp-type (Tri-Clover) process fittings.
• Stainless steel hose assemblies for hygienic duty that need a male clamp-type end.

Features

• 316 stainless steel external crimp stem (manufacturer-stated)
• Male clamp-type (Tri-Clover) end (manufacturer-stated)
• Made to suit inch-bore hose, not metric hose (manufacturer-stated)
• Six sizes from 1" to 4" (manufacturer-stated)

Common specifications

Key specifications

Millimetre sizes are the figures in Dixon's hygienic catalogue.

Selecting the right option

Choose the stem by the inside diameter of the hose, in inches, then choose a ferrule to suit the hose outside diameter. Dixon lists the matching 304 stainless steel Holedall external crimp ferrules as HA0249 (1"), HA0250 (1-1/2"), HA0251 (2"), HA0252 (2-1/2"), HA0253 (3") and HA0301 (4"), each with a dash number that is chosen by the hose outside diameter (manufacturer-stated). A clamp-type joint also needs a sanitary clamp and a gasket in a material that suits your product; see the related products for other Dixon hygienic stems.

Related products

Related Dixon products: Dixon External Crimp Female Stem Holedall BSM (RJT) and Dixon Tube Crimp Stem Buttweld.
