Dixon CODE1003050 50 mm x 5 m Composite Petrol & Oil Suction & Discharge Hose
Out of stock

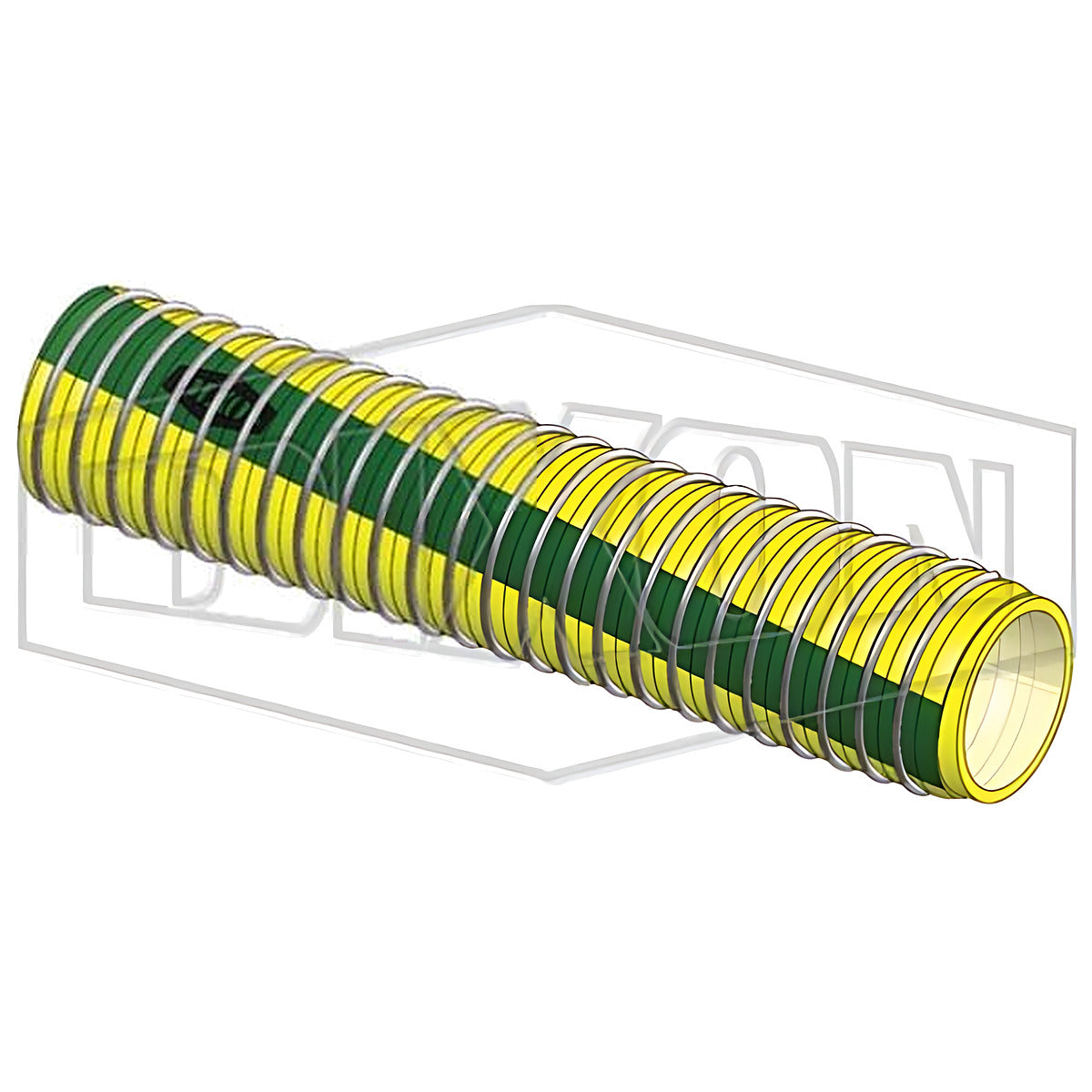

This Dixon anti-static composite hose is made for suction and discharge on plant equipment, road tankers and rail tankers, for a wide range of hydrocarbons with 100% aromatic resistance (manufacturer-stated). It has a white composite tube, a yellow composite cover, polypropylene film and fabric reinforcement, galvanised steel outer wire and aluminium inner wire, and it is mandrel built, lightweight and flexible (manufacturer-stated).
Dixon says the hose is constructed to AS 2683:2000 Type 1 Grade 3 and EN 13765:2018 Type 3 (manufacturer-stated). It is rated at 100 PSI (7 bar) working pressure, 500 PSI (35 bar) burst and 0.9 bar vacuum for temperatures from -30 to 80 degrees C (manufacturer-stated). The store lists 50, 76 and 100 mm hose in 5 m and 40 m lengths.
Where this product is used
- Suction and discharge on plant equipment, road tankers and rail tankers (manufacturer-stated).
- Transfer of a wide range of hydrocarbons where 100% aromatic resistance is required (manufacturer-stated).
Features
- Tube: composite, white; cover: composite, yellow; polypropylene film and fabric reinforcement (manufacturer-stated)
- Outer wire: galvanised steel; inner wire: aluminium; mandrel built (manufacturer-stated)
- Working pressure 100 PSI (7 bar), burst 500 PSI (35 bar), vacuum 0.9 bar (manufacturer-stated)
- Temperature range -30 to 80 degrees C (manufacturer-stated)
- Dixon lists AS 2683:2000 Type 1 Grade 3 and EN 13765:2018 Type 3 (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Tube | Composite, white |
| Cover | Composite, yellow |
| Reinforcement | Polypropylene film and fabric |
| Outer wire | Galvanised steel |
| Inner wire | Aluminium |
| Standards | AS 2683:2000 Type 1 Grade 3, EN 13765:2018 Type 3 (manufacturer-stated) |
| Working pressure | 100 PSI (7 bar) |
| Burst pressure | 500 PSI (35 bar) |
| Vacuum | 0.9 bar |
| Temperature | -30 to 80 degrees C |
| Sizes on this page | 50, 76, 100 mm |
Key specifications
| Dixon part number | Size | Length | Catalogue ID (mm) | Bend radius (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| CODE1003050 | 50 mm | 5 m | 50.8 | 150 | 1.38 |
| CODE1003050040 | 50 mm | 40 m | 50.8 | 150 | 1.38 |
| CODE1003080 | 76 mm | 5 m | 76.2 | 250 | 2.20 |
| CODE1003080040 | 76 mm | 40 m | 76.2 | 250 | 2.20 |
| CODE1003100 | 100 mm | 5 m | 101.6 | 300 | 3.22 |
| CODE1003100040 | 100 mm | 40 m | 101.6 | 300 | 3.22 |
Figures are from the CODE1003 table in Dixon's Composite Hose and Fittings catalogue, which lists the base part numbers (for example CODE1003050) with no pack length. The 5 m and 40 m lengths (part numbers ending 040 for 40 m) are store options. The store sizes 50, 76 and 100 mm are the 50.8, 76.2 and 101.6 mm catalogue sizes.
Selecting the right option
Check the fuel or chemical against the hose materials and the aromatic resistance, and have end fittings made up by a competent person to the hose maker's instructions. The aluminium inner wire distinguishes this light duty hose from the medium duty CODE1000 hose, which has a galvanised inner wire and a higher pressure rating; see Related products. Check the bend radius for your set-up.
Related products
Related Dixon hose: Dixon Composite Petrol & Oil Medium Duty Suction & Delivery Hose, Dixon Composite Vapour Recovery Hose, Dixon Rubber Petrol & Oil Suction & Delivery Hose and Dixon Code 951 Composite Chemical Medium Duty Suction & Delivery Hose.
