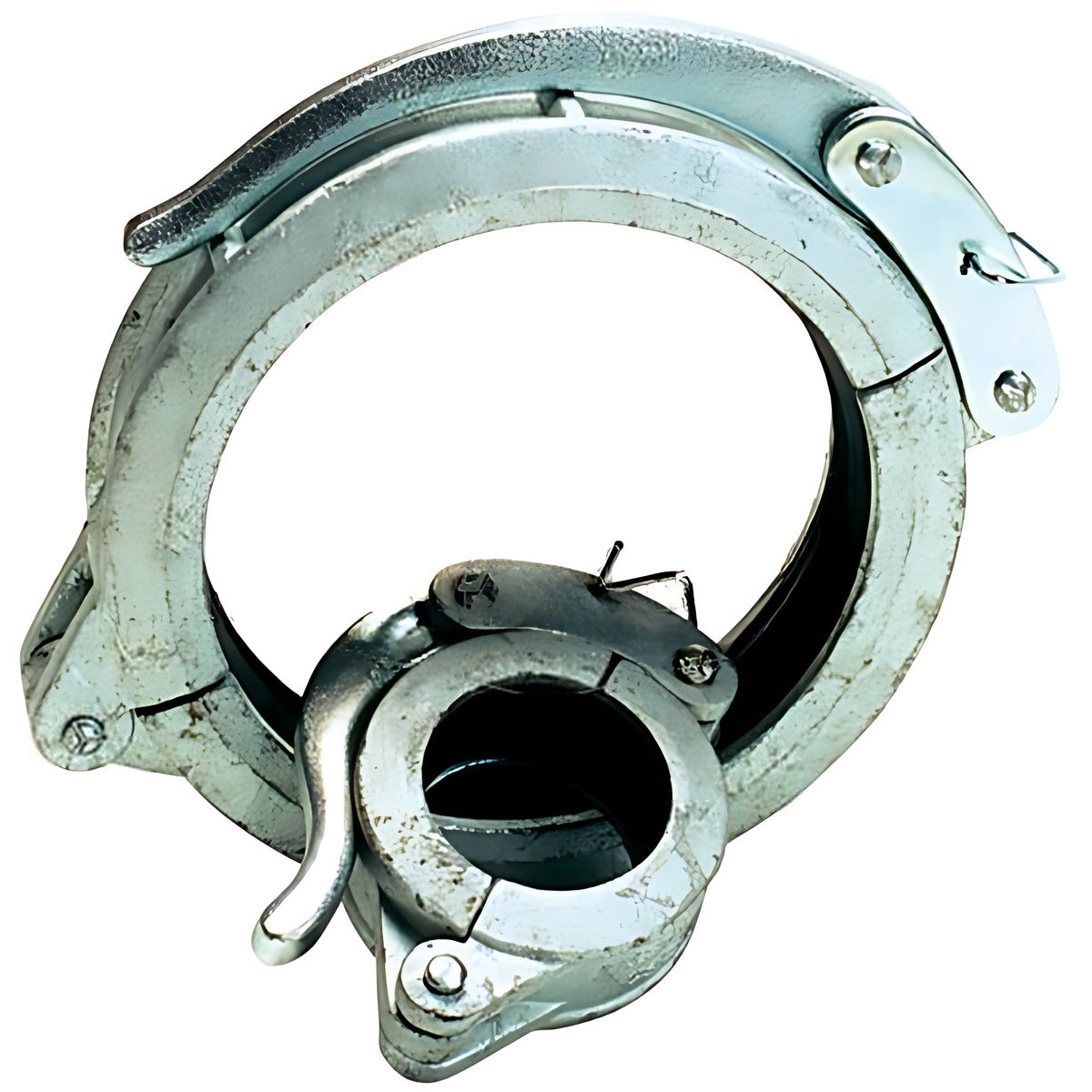

Dixon 08/048/19/000G 50 NB Minsup Quick Release Shouldered Coupling - SG Iron
Available
This Dixon Minsup quick release shouldered coupling joins shouldered-end pipe without nuts and bolts. A lever and hinge close the housing, so there is nothing to lose, no thread to damage and no tool needed (manufacturer-stated). The housing, lever and side plates are SG iron to ISO 1083 grade 400-250-15 (manufacturer-stated), with a nitrile Buna gasket and a zinc plated finish. Five sizes are listed, from 50 NB (08/048/19/000G) to 200 NB (08/048/19/006G).
Dixon rates all five sizes at 348 PSI working pressure, as tested to AWWA C606 requirements with a 2:1 safety factor (manufacturer-stated). An internal tongue and groove feature stops the seal pinching as the coupling closes. Dixon states that couplings of this type are not recommended for use with air (manufacturer-stated).
Where this product is used
- Temporary pipelines where fast assembly and disassembly reduces downtime (manufacturer-stated).
- Joining shouldered-end pipe from 50 NB to 200 NB, with pipe OD from 60.2 mm to 219.1 mm.
Features
- Quick release lever and hinge: no nuts, bolts or tools (manufacturer-stated)
- SG iron housing, lever and side plates to ISO 1083, 400-250-15 (manufacturer-stated)
- Nitrile Buna gasket and zinc plated finish (manufacturer-stated)
- Working pressure: 348 PSI for all five sizes, tested to AWWA C606 with a 2:1 safety factor (manufacturer-stated)
- Not recommended for use with air (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Housing, lever and side plates | SG iron to ISO 1083, 400-250-15 (manufacturer-stated) |
| Side plates (50, 80 and 200 NB) | Pressed mild steel |
| Gasket | Nitrile Buna |
| Finish | Zinc plated |
| Working pressure | 348 PSI, tested to AWWA C606 requirements (2:1 safety factor) |
| Sizes | 50 to 200 NB |
Key specifications
| Dixon part number | Size (NB) | Pipe OD (mm) | Working pressure |
|---|---|---|---|
| 08/048/19/000G | 50 | 60.2 | 348 PSI |
| 08/048/19/002G | 80 | 88.9 | 348 PSI |
| 08/048/19/003G | 100 | 114.3 | 348 PSI |
| 08/048/19/005G | 150 | 165.1 | 348 PSI |
| 08/048/19/006G | 200 | 219.1 | 348 PSI |
Sizes, pipe OD and pressure are the figures in Dixon's catalogue. Gaskets for these couplings are listed separately by Dixon.
Selecting the right option
Match the coupling to the pipe OD in the table: the pipe must have a shouldered end. Dixon does not recommend these couplings for air, so confirm the media before you order. A stainless steel quick release version is listed by Dixon in 50, 100 and 150 NB (linked below).
