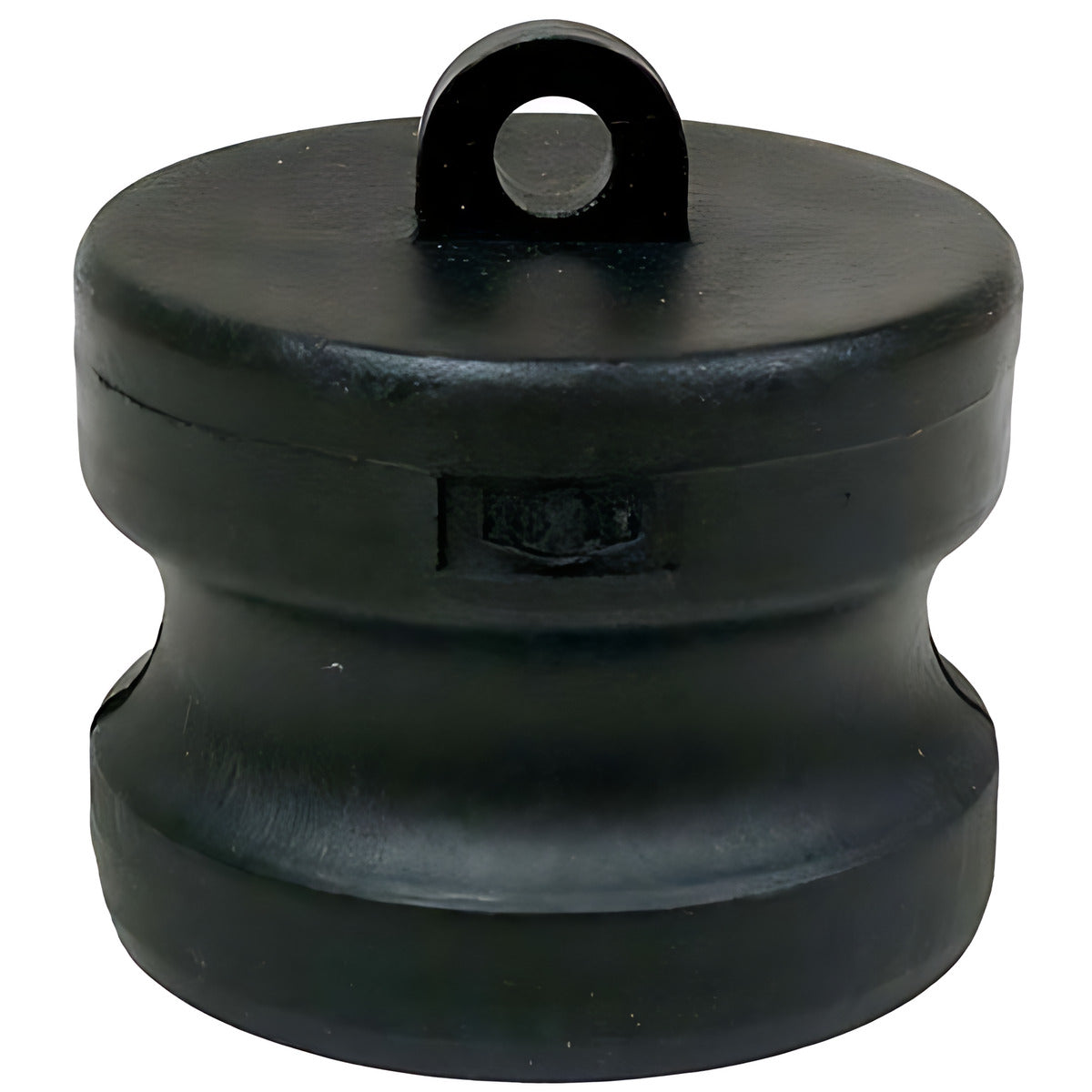

Dixon PPP075A 20 mm (3/4") Polypropylene Cam & Groove Type DP Dust Plug
Available
This Dixon polypropylene dust plug closes off a female cam and groove coupler. It is a Type DP plug, which is held in by the cam arms of the coupler. Dixon lists the polypropylene range in 7 sizes, from 20 mm (3/4") to 100 mm (4") (manufacturer-stated).
The body is polypropylene, 30% glass filled (manufacturer-stated). Dixon states that polypropylene and Nyglass should not be mixed with aluminium fittings (manufacturer-stated). Dust caps and dust plugs are not to be used in any pressure applications for safety and environmental reasons (manufacturer-stated).
Where this product is used
- Closing off a female camlock coupler on a hose, pipe or tank outlet that is not in use, so dirt and debris stay out of the cam and groove profile.
- Plastic cover for polypropylene camlock fittings, where the hose and tank fittings are also plastic.
- Spare covers for hose assemblies that are stored in a workshop or carried on a vehicle.
Features
- Type DP dust plug for cam and groove couplings, 7 sizes from 20 mm (3/4") to 100 mm (4") (manufacturer-stated)
- Body: Polypropylene, 30% glass filled (manufacturer-stated)
- Not for use in pressure applications (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Type | Type DP dust plug |
| Body material | Polypropylene, 30% glass filled (manufacturer-stated) |
| Sizes | 20 mm (3/4"), 25 mm (1"), 32 mm (1-1/4"), 40 mm (1-1/2"), 50 mm (2"), 75 mm (3"), 100 mm (4") |
| Pressure use | Not for use in pressure applications (manufacturer-stated) |
Key specifications
| Dixon part number | Size (mm) | Nominal size (in) |
|---|---|---|
| PPP075A | 20 | 3/4 |
| PPP100A | 25 | 1 |
| PPP125A | 32 | 1-1/4 |
| PPP150A | 40 | 1-1/2 |
| PPP200A | 50 | 2 |
| PPP300A | 75 | 3 |
| PPP400A | 100 | 4 |
Dixon's catalogue also prints a 15 mm polypropylene and Nyglass cap and plug with the note "Adaptor size is 20mm"; those 15 mm part numbers are not part of this listing.
Selecting the right option
Choose the size from the camlock fitting it will close: a dust plug is sized to match the coupling size, so a 50 mm dust plug goes with a 50 mm female coupler. Match the body material to the fitting as well. Do not mix this plastic dust plug with aluminium fittings (manufacturer-stated). Dixon's size table also prints a working pressure beside each size, but Dixon states that dust caps and dust plugs are not to be used in any pressure applications (manufacturer-stated), so treat this dust plug as a cover only and never as a pressure seal. Dixon does not list a polypropylene dust plug in the 65, 125 and 150 mm sizes.
Related products
Related Dixon products: Dixon Polypropylene Standard BSP Cam & Groove Type DC Dust Cap, Dixon Stainless Steel Standard BSP Cam & Groove Type DP Dust Plug, Dixon Aluminium Die Cast Standard BSP Cam & Groove Type DP Dust Plug and Dixon Polypropylene Standard BSP Cam & Groove Type C Coupler x Hose Shank.
