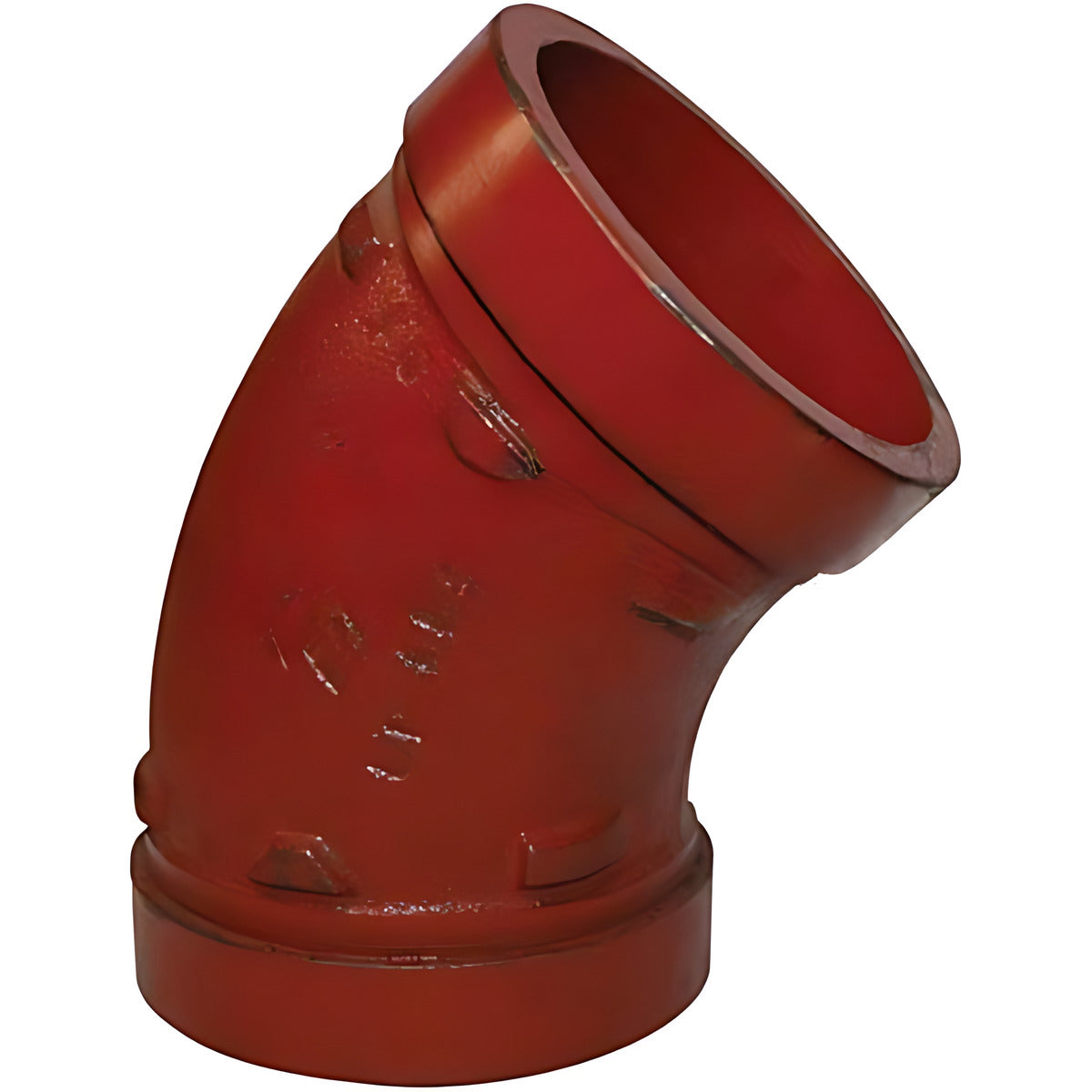

Dixon FWP-11-42 1-1/4" (32 mm) Roll Grooved 45° Elbow Style 101 Painted - Galvanised

This Dixon roll grooved 45° elbow is the painted, galvanised version, sold as Style 101 in the store. It is a single-size listing in 1-1/4" (32 NB), part number FWP-11-42.

Dixon's catalogue lists galvanised 45° elbows in 32 to 300 NB (FWG-11-42S for 32 NB) at 300 PSI, in ductile iron (ASTM A536) with a hot dip galvanised finish (AS4680). The painted FWP series does not appear in the catalogue, so ratings and dimensions are not stated here and should be confirmed with us (manufacturer-stated).

Where this product is used

• Changes of direction at 45° in roll grooved pipework (the store lists this part as the painted version of the galvanised elbow).
• Small-bore roll grooved pipework in fire protection, water and irrigation systems where a grooved system is used (manufacturer-stated).

Features

• 45° elbow with roll grooved ends (manufacturer-stated)
• Painted, galvanised finish (from the product title)
• Size: 1-1/4" (32 NB) (manufacturer-stated)

Common specifications

Key specifications

Dixon's catalogue does not list FWP-11-42, so no pressure rating, pipe OD or centre-to-end dimension is shown. For the galvanised equivalent Dixon lists FWG-11-42S.

Selecting the right option

Confirm the working pressure and the paint specification with us before you order, because neither is in Dixon's catalogue. If you need the catalogue-rated galvanised pattern, look at the 45° elbow listed in Related products. Each end needs a grooved coupling and a gasket suited to the fluid.
