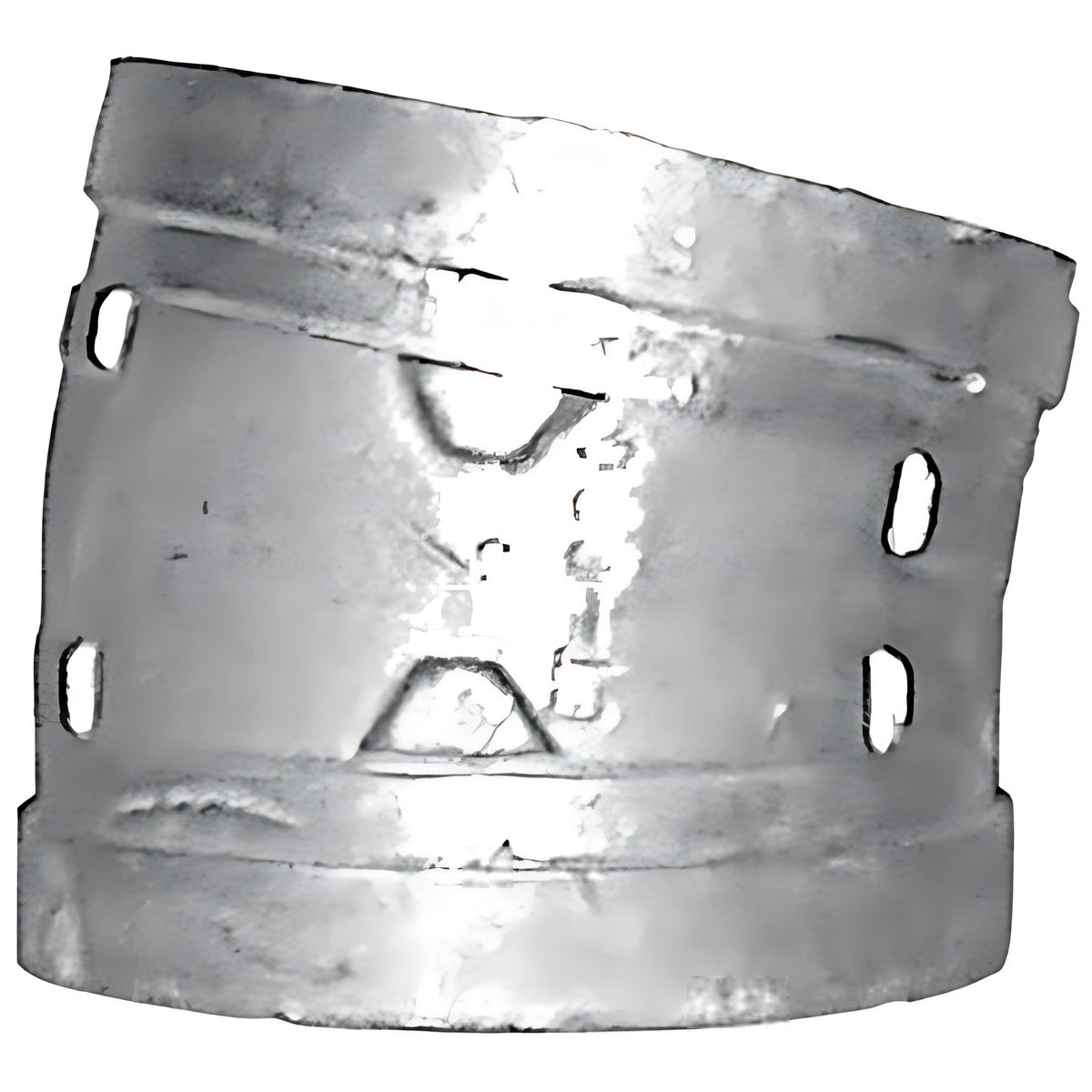

Dixon FWG-111/4-114 4" (100 mm) Standard 11.25° Roll Grooved Elbow - Galvanised
Available
This Dixon 11.25° elbow makes a very small change of direction in a roll grooved pipeline. It is ductile iron (ASTM A536) with a hot dip galvanised finish (AS4680) (manufacturer-stated).
The store lists it in 3", 4", 6" and 8" (80, 100, 150 and 200 NB). Dixon rates the range at 300 PSI and gives centre-to-end dimensions of 38, 44, 51 and 51 mm for these sizes. Dixon compares it with Victaulic No. 13 (manufacturer-stated).
Where this product is used
- Fire protection, water transmission and treatment, and irrigation pipework where a grooved system is used instead of flanged or welded joints (manufacturer-stated).
- Small angle corrections in roll grooved pipework where a 22.5° or 45° elbow would turn the line too far.
Features
- 11.25° bend for roll grooved pipe (manufacturer-stated)
- Ductile iron (ASTM A536), hot dip galvanised finish (AS4680) (manufacturer-stated)
- Working pressure: 300 PSI (manufacturer-stated)
- Dixon lists the grooved elbow range as UL listed and FM approved (manufacturer-stated)
- Comparable to Victaulic No. 13 (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Angle | 11.25° |
| Material | Ductile iron (ASTM A536) |
| Finish | Hot dip galvanised (AS4680) (manufacturer-stated) |
| Ends | Roll grooved |
| Working pressure | 300 PSI |
| Approvals | UL listed and FM approved (manufacturer-stated) |
| Comparable to | Victaulic No. 13 (manufacturer-stated) |
| Sizes | 80, 100, 150 and 200 NB |
Key specifications
| Dixon part number | Size (NB) | Pipe OD (mm) | Working pressure | Centre-to-end (mm) |
|---|---|---|---|---|
| FWG-111/4-114 | 4" (100 mm) | 114.3 | 300 PSI | 44 |
| FWG-111/4-165 | 6" (150 mm) | 165.1 | 300 PSI | 51 |
| FWG-111/4-219 | 8" (200 mm) | 219.1 | 300 PSI | 51 |
| FWG-111/4-88 | 3" (80 mm) | 88.9 | 300 PSI | 38 |
Dixon prints the same centre-to-end dimension (51 mm) for the 150 NB and 200 NB sizes.
Selecting the right option
An 11.25° elbow is the smallest angle in Dixon's grooved elbow range, which also has 22.5°, 45° and 90° patterns. Pick the angle that matches the change of direction you need, and confirm the pipe OD before ordering. Each end needs a grooved coupling and a gasket suited to the fluid.
Related products
Related Dixon grooved elbows: Dixon Roll Grooved 45° Elbow Short - Style 101S - Galvanised and Dixon Roll Grooved 90° Elbow Short - Style 100S - Galvanised. Couplings: Dixon Roll Grooved Rigid Coupling - Galvanised and Dixon Roll Grooved Coupling Flexible Heavy Duty Galvanised.
