Dixon FWG-HDC-88 3" (80 mm) Roll Grooved Coupling Flexible Heavy Duty Galvanised
Available

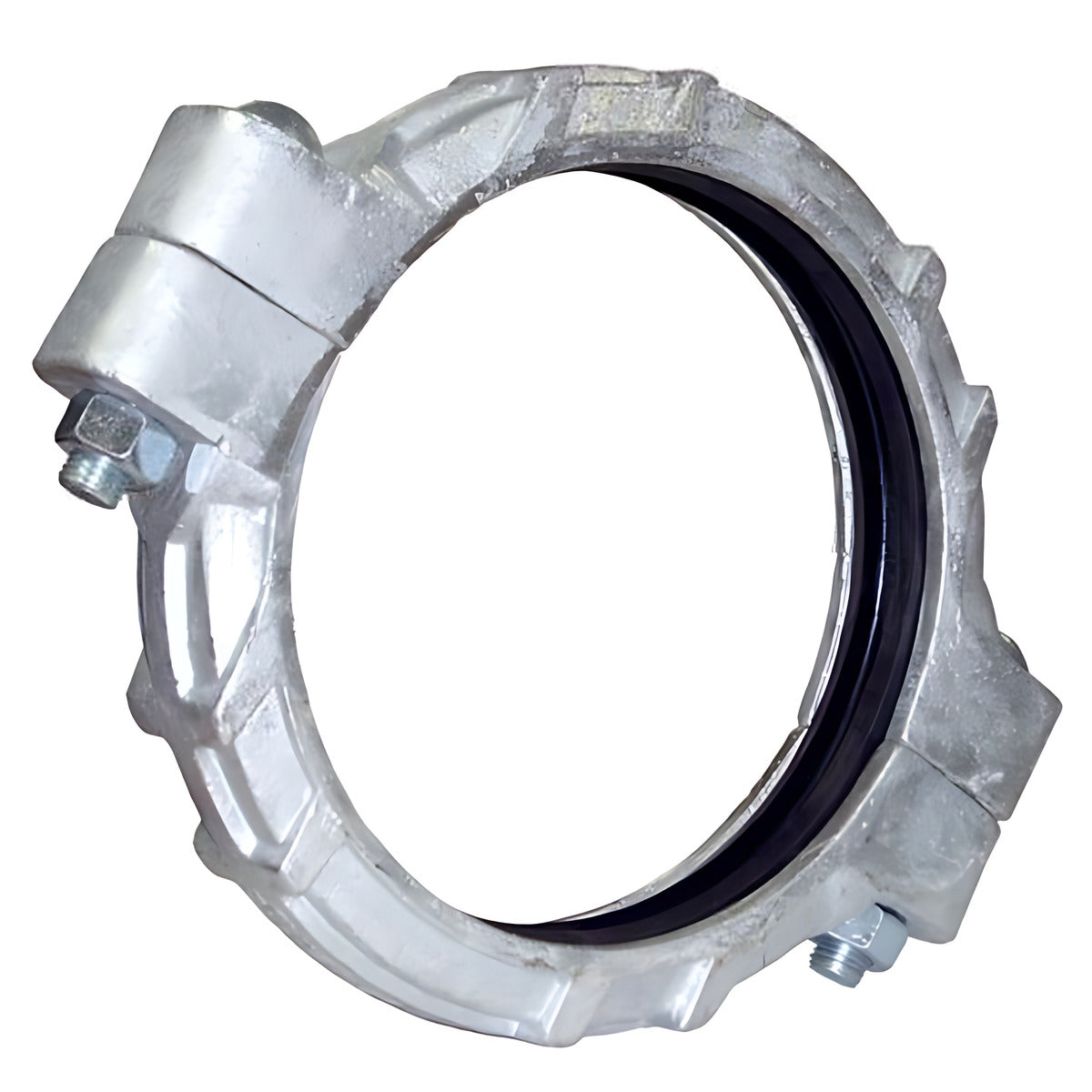

This Dixon heavy duty flexible coupling joins two roll grooved pipe ends and allows some movement at the joint. Its ribbed housing is ductile iron to ASTM A536 with a hot dip galvanised finish (AS4680), and the standard gasket is black EPDM (manufacturer-stated).
Dixon rates the 80, 100 and 150 NB sizes at 1,000 PSI, the 200 NB size at 800 PSI and the 250 and 300 NB sizes at 500 PSI, with an operating temperature of -30 to 110 degrees C. The coupling is listed as UL listed and FM approved and as comparable to Victaulic No. 77 (manufacturer-stated).
Where this product is used
- Fire sprinkler and hydrant systems, and hot and potable water lines, where a flexible coupling is wanted (manufacturer-stated).
- Pipe runs that expand, contract, settle or vibrate, because flexible couplings allow controlled angular, linear and rotational movement at each joint (manufacturer-stated).
Features
- Ribbed, heavy duty construction for working pressures up to 1,000 PSI (manufacturer-stated)
- Housing: ductile iron (ASTM A536) with hot dip galvanised finish (AS4680) (manufacturer-stated)
- Standard gasket: EPDM, black; temperature -30 to 110 degrees C (manufacturer-stated)
- Dixon lists the range as UL listed and FM approved (manufacturer-stated)
- Not for hydrocarbons such as petroleum, kerosene and diesel with the standard EPDM gasket (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Housing | Ductile iron (ASTM A536) |
| Finish | Hot dip galvanised (AS4680) (manufacturer-stated) |
| Standard gasket | EPDM, black |
| Temperature | -30 to 110 degrees C |
| Working pressure | Up to 1,000 PSI (see table) |
| Approvals | UL listed and FM approved (manufacturer-stated) |
| Comparable to | Victaulic No. 77 (manufacturer-stated) |
| Model number | Style 11 |
Key specifications
| Dixon part number | Size (NB) | Pipe OD (mm) | Working pressure |
|---|---|---|---|
| FWG-HDC-114 | 4" (100 mm) | 114.3 | 1000 PSI |
| FWG-HDC-165 | 6" (150 mm) | 165.1 | 1000 PSI |
| FWG-HDC-219 | 8" (200 mm) | 219.1 | 800 PSI |
| FWG-HDC-250 | 10" (250 mm) | 273.1 | 500 PSI |
| FWG-HDC-300 | 12" (300 mm) | 323.9 | 500 PSI |
| FWG-HDC-88 | 3" (80 mm) | 88.90 | 1000 PSI |
The rating drops as the size rises, from 1,000 PSI up to 150 NB to 500 PSI at 250 and 300 NB, so check the figure for your size before you specify the coupling.
Selecting the right option
Choose a flexible coupling where the line needs to move; choose a rigid coupling where the line must stay stiff, such as long straight runs that carry torsional or bending loads. Match the pipe OD exactly, and match the gasket to the fluid: EPDM suits water, and Dixon lists a nitrile gasket for petroleum products (-31 to 80 degrees C, not for hot water) (manufacturer-stated).
Related products
Related Dixon couplings and gaskets: Dixon Roll Grooved Rigid Coupling - Galvanised, Dixon 165.1 x 168.3mm Roll Grooved Rigid Transition Coupling - Galvanised, Dixon EPDM Gasket For Roll Grooved Coupling, Dixon Nitrile Gasket For Roll Grooved Coupling and Dixon Gasket Lube For All Rubber Gasket Roll Grooved Coupling - 500g.
