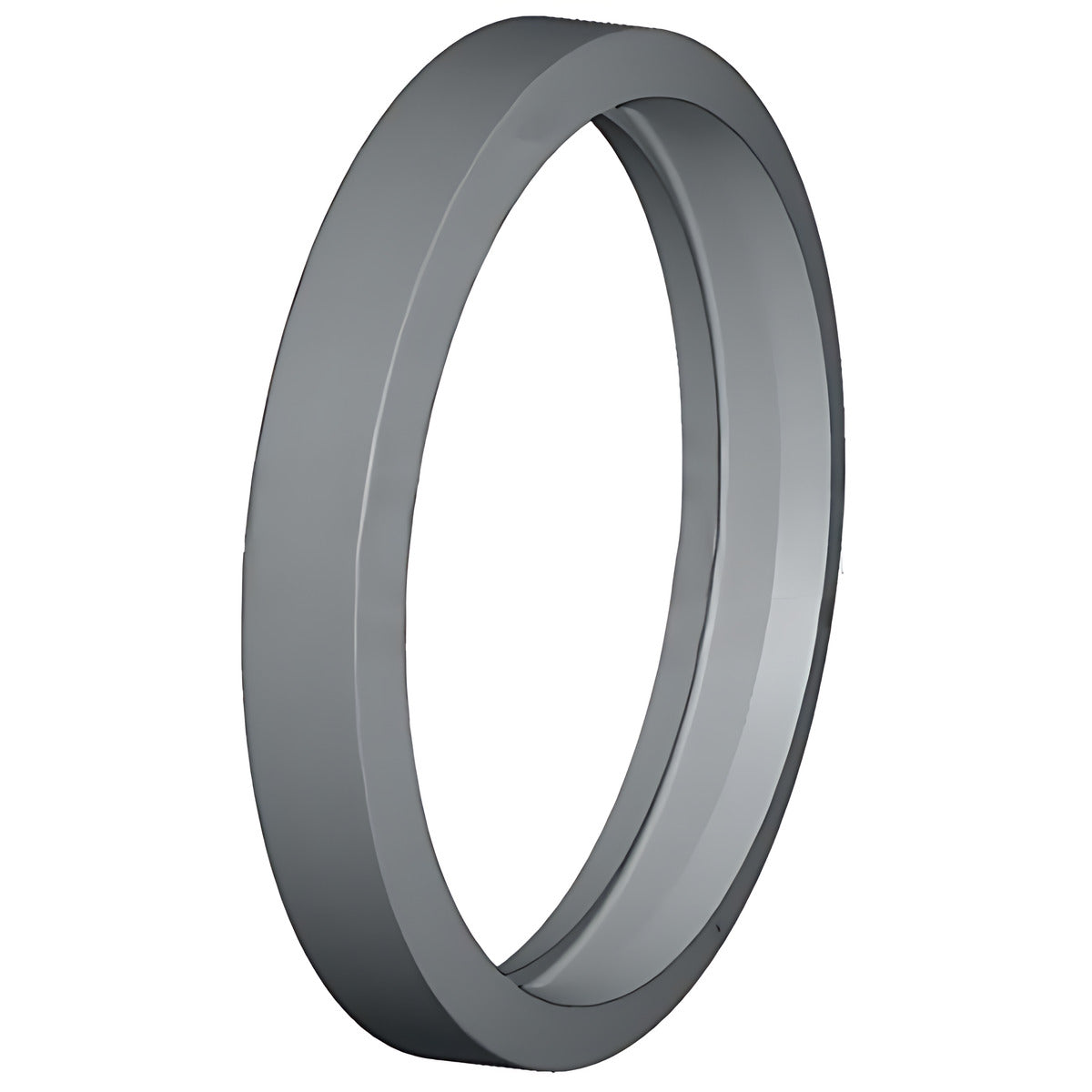

Dixon GAS-RG-60-E 2" (50 NB) EPDM Gasket For Roll Grooved Coupling
Available
This Dixon EPDM gasket fits roll grooved couplings. The listing covers 6 sizes, from 2" (50 NB) to 8" (200 NB), with the pipe outside diameter shown for each part number (manufacturer-stated).
Dixon describes the EPDM gasket as suited to water, dilute acids, alkalis, salts and many chemical services that do not involve hydrocarbons, oils or gases, with a temperature range of -30 to 110 degrees C. It is not for use with hydrocarbons (manufacturer-stated).
Where this product is used
- Roll grooved coupling gaskets for water, dilute acids, alkalis, salts and many chemical services not involving hydrocarbons, oils or gases (manufacturer-stated).
- Replacement gasket for Dixon roll grooved couplings in the matching pipe size.
Features
- Material: EPDM (manufacturer-stated)
- For water, dilute acids, alkalis, salts and many chemical services not involving hydrocarbons, oils or gases (manufacturer-stated)
- Temperature range: -30 to 110 degrees C (manufacturer-stated)
- Not for use with hydrocarbons (manufacturer-stated)
- Pipe outside diameter listed for each size (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Material | EPDM |
| Temperature range | -30 to 110 degrees C |
| Not suited to | Hydrocarbons |
| Sizes | 2" (50 NB), 2-1/2" (65 NB), 3" (80 NB), 4" (100 NB), 6" (150 NB), 8" (200 NB) |
Key specifications
| Dixon part number | Size (in) | Size (NB) | Pipe OD (mm) |
|---|---|---|---|
| GAS-RG-60-E | 2" | 50 | 60.3 |
| GAS-RG-76-E | 2-1/2" | 65 | 76.1 |
| GAS-RG-88-E | 3" | 80 | 88.9 |
| GAS-RG-114-E | 4" | 100 | 114.3 |
| GAS-RG-165-E | 6" | 150 | 165.1 |
| GAS-RG-219-E | 8" | 200 | 219.1 |
Sizes and pipe outside diameters are from Dixon's Gasket for Roll Grooved Couplings table. For the 150 NB row, Dixon's catalogue prints the part number GAS-RG-150-E, while the store part number is GAS-RG-165-E. Dixon also lists EPDM gaskets for 40 NB (G150E) and other sizes that are not in this listing.
Selecting the right option
Match the gasket to the pipe outside diameter shown in the table and to the coupling. Use a gasket lubricant made for rubber gaskets: Dixon warns that incorrect lubricants such as grease can shorten gasket life and stop the gasket seating correctly (manufacturer-stated). Do not use EPDM on hydrocarbons or oils; for petroleum products use the nitrile gasket instead.
Related products
Related Dixon products: Dixon Nitrile Gasket For Roll Grooved Coupling, Dixon Gasket Lube For All Rubber Gasket Roll Grooved Coupling - 500g and Dixon Roll Grooved Coupling Flexible Heavy Duty Galvanised.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
2
Model Number: GAS-RG-60-E
-
2-1/2
Model Number: GAS-RG-76-E
-
3
Model Number: GAS-RG-88-E
-
4
Model Number: GAS-RG-114-E
-
6
Model Number: GAS-RG-165-E
-
8
Model Number: GAS-RG-219-E
