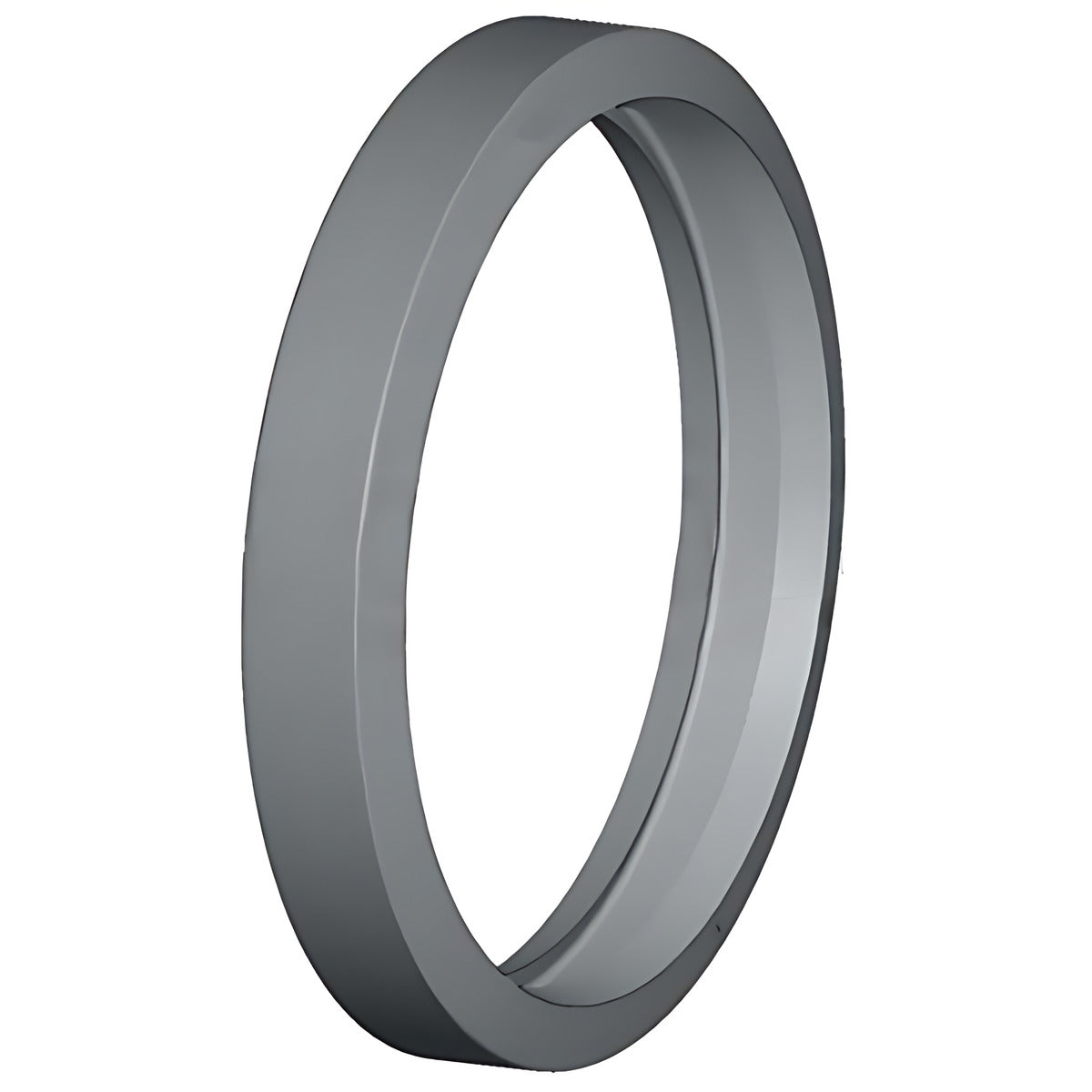

Dixon GAS-RG-N80 3" (80 NB) Nitrile Gasket For Roll Grooved Coupling
Available
This Dixon nitrile (Buna) gasket fits roll grooved couplings. The listing covers 6 sizes, from 1-1/2" (40 NB) to 6" (150 NB), and the table gives the pipe outside diameter for each part number (manufacturer-stated).
Dixon describes the nitrile rubber gasket as suited to petroleum products, vegetable oils, mineral oils and air contaminated with petroleum oils, with a temperature range of -31 to 80 degrees C. It is not for use with hot water (manufacturer-stated).
Where this product is used
- Roll grooved coupling gaskets for petroleum products, vegetable oils, mineral oils and air contaminated with petroleum oils (manufacturer-stated).
- Replacement gasket for Dixon roll grooved couplings in the matching pipe size.
Features
- Material: nitrile rubber (Buna) (manufacturer-stated)
- For petroleum products, vegetable oils, mineral oils and air contaminated with petroleum oils (manufacturer-stated)
- Temperature range: -31 to 80 degrees C (manufacturer-stated)
- Not for use with hot water (manufacturer-stated)
- Pipe outside diameter listed for each size (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Material | Nitrile rubber (Buna) |
| Temperature range | -31 to 80 degrees C |
| Not suited to | Hot water |
| Sizes | 1-1/2" (40 NB), 2" (50 NB), 2-1/2" (65 NB), 3" (80 NB), 4" (100 NB), 6" (150 NB) |
Key specifications
| Dixon part number | Size (in) | Size (NB) | Pipe OD (mm) |
|---|---|---|---|
| GAS-RG-N40 | 1-1/2" | 40 | 48.3 |
| GAS-RG-N50 | 2" | 50 | 60.3 |
| GAS-RG-N65 | 2-1/2" | 65 | 76.1 |
| GAS-RG-N80 | 3" | 80 | 88.9 |
| GAS-RG-N100 | 4" | 100 | 114.3 |
| GAS-RG-N150 | 6" | 150 | 165.1 |
Sizes and pipe outside diameters are from Dixon's Gasket for Roll Grooved Couplings table. Dixon also lists 65 NB USA (73.0 mm, GAS-RG-N65-73), 300 NB and other USA sizes that are not in this listing.
Selecting the right option
Match the gasket to the pipe outside diameter shown in the table and to the coupling. Use a gasket lubricant made for rubber gaskets: Dixon warns that incorrect lubricants such as grease can shorten gasket life and stop the gasket seating correctly (manufacturer-stated). For water, dilute acids, alkalis and salts, Dixon lists the EPDM gasket instead (manufacturer-stated).
Related products
Related Dixon products: Dixon EPDM Gasket For Roll Grooved Coupling, Dixon Gasket Lube For All Rubber Gasket Roll Grooved Coupling - 500g and Dixon Roll Grooved Rigid Coupling - Galvanised.
