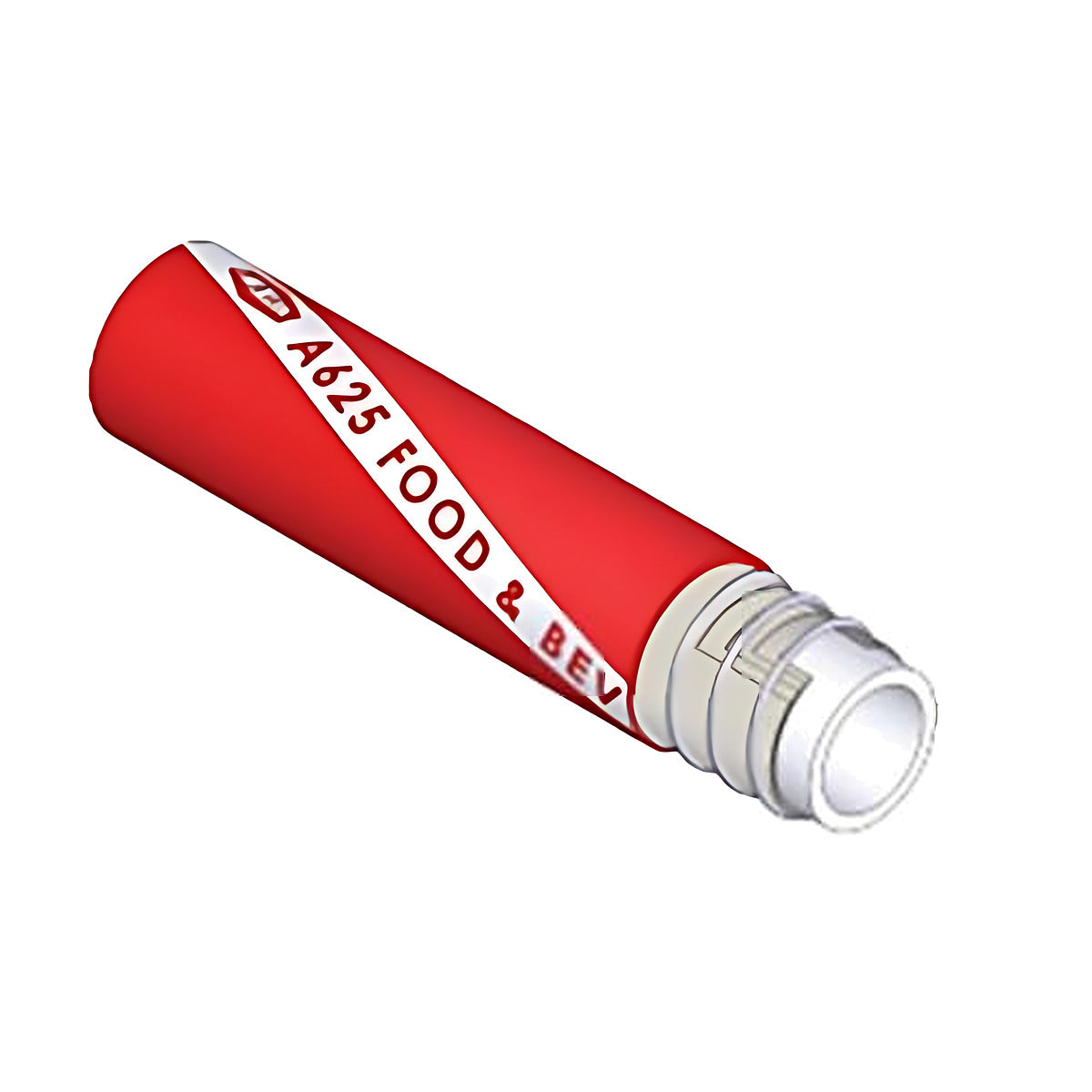

Dixon 25.4mm x 20m Rubber Premium Food & Wine Suction & Delivery HoseRed
Regular price
$2,937.00
Sale price
$2,937.00
Regular price
Inc. GST
Out of stock
Length: 20 m. Rated to 150 PSI (10 bar), so you can match it to line pressure with confidence. Construction. Lining: IIRButyl Rubber White Non Toxic. Reinforcement: Synthetic textile fabrics and two PET helix. Cover: Oil heat abrasion ozone and weather resistant RED EPDM rubber Crush Resistant Cover. Available Lengths. Cut Length: 5 m.
Key Specifications
| Size | 25 mm / 40 mm / 50 mm / 65 mm |
| Length | 20 m |
| ID | 25.4 mm / 38.1 mm / 50.8 mm / 63.5 mm |
| OD | 41.0 mm / 54.0 mm / 67.0 mm / 80.0 mm |
| Hose ID (mm) | 25.4 / 38 / 50.8 / 63.5 |
| Working Pressure | 150 PSI (10 bar) |
| Burst Pressure | 450 PSI (30 bar) |
| Vacuum Rating | 0.6 bar / 0.5 bar |
| Temperature Range | -40°C to 120°C |
| Color | Red |
| Unit weight | 0.9 kg/m / 1.57 kg/m / 1.91 kg/m / 2.82 kg/m |
| Bend Radius | 100 mm / 160 mm / 260 mm / 300 mm |
| Burst Pressure Bar | 31 |
| Hose Outside Diameter (mm) | 41 / 45 / 67 / 79 |
| Weight kg/m | 1.03 / 1.42 / 1.78 / 2.15 |
| Application | Food & Alcohol |
| Hose Length | 20 m |
| Negative Pressure M/H20 | 0.8 |
| Vacuum Rating M/h20 | 9 |
Where This Is Used
- Premium quality flexible suction and discharge hose featuring a crush-resistant PE helix and high-temperature resistant Chlorobutyl rubber tube, ideal for the transfer of beverages containing up to 96% alcohol content including beer and wine, also suitable for many other beverages and foodstuffs including soft drinks, fruit juices and potable water.
- Special food suction and discharge hose, particularly suitable for transferring.Special food suction and discharge hose, particularly suitable for transferring milk, wine, beer and potable water either in-plant or tank truck service.
Features
- Food grade FDA.
- Crush resistant PET helix.
- Abrasion resistant.
- Weather resistant.
- Ozone resistant.
- Mylar layline & embossed tape line tube.
- Resistant to 96% alcohol content.
- Mandrel built.
Product Highlights
Resources
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Available Options:
-
25.4
Model Number: A625025020
-
38
Model Number: A625040020
-
50.8
Model Number: A625050020
-
63.5
Model Number: A625065020
