Dixon A635020 20 mm x 5 m Rubber Foodboss Milk Food & Beverage Hose
Out of stock

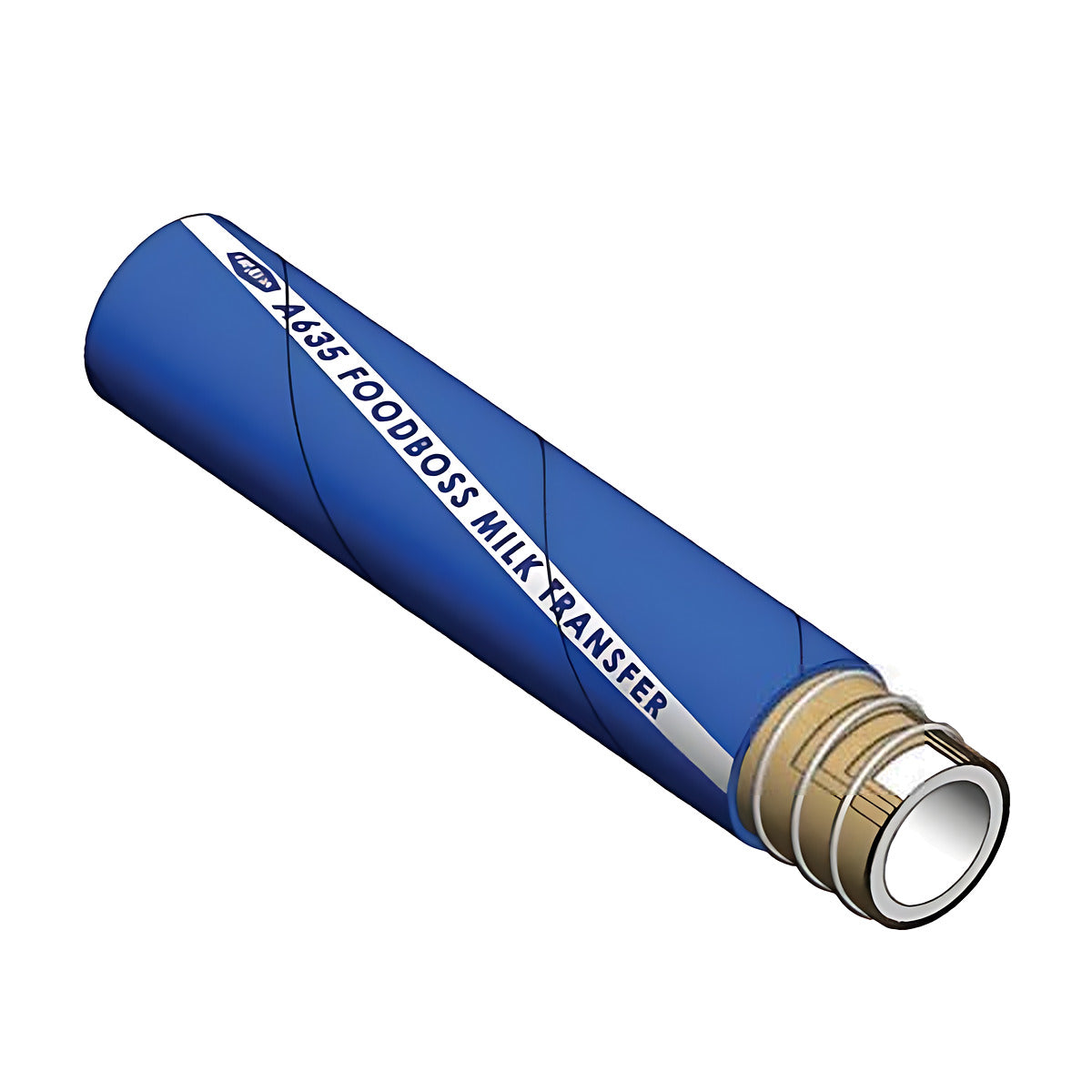

This Dixon Foodboss hose is a flexible, spiral-reinforced hose with a food grade natural rubber tube (white), a blue natural rubber blend cover and textile cords with a double embedded steel wire helix (manufacturer-stated). It is mandrel built, with a smooth wrapped finish.
Dixon's industrial hose catalogue describes it for milk transfer, tanker loading and unloading, and dairy bays, and rates it at 90 PSI (6 bar) working pressure, 270 PSI burst and 0.9 bar vacuum, for -40°C to 95°C (manufacturer-stated). This listing covers the 20 mm and 63.5 mm hose in cut lengths, 20 m coils and a 60 m coil.
Where this product is used
- Transporting milk and loading and unloading tankers, dairy unloading bays, and equipment within processing and filling facilities (manufacturer-stated).
- Moving alcoholic beverages up to 36% alcohol content, including beer, wine and cider, and liquid foods such as soft drinks, fruit juices and potable water (manufacturer-stated).
- Hose runs that are steam cleaned without pressure, up to 130°C for a maximum of 30 minutes (manufacturer-stated).
Features
- Food grade tube: natural rubber, white (manufacturer-stated)
- Cover: smooth wrapped natural rubber blend, blue (manufacturer-stated)
- Reinforcement: high tensile synthetic textile cords with double embedded steel wire helix (manufacturer-stated)
- Abrasion, weather and ozone resistant (manufacturer-stated)
- Working pressure 90 PSI (6 bar); burst pressure 270 PSI; vacuum 0.9 bar (manufacturer-stated)
- Temperature range -40°C to 95°C (manufacturer-stated)
- Listed as FDA approved, with FDA title 21 art. 177.2600 (e) for liquid foods, BfR, KTW and phthalate free (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Tube | Natural rubber, food grade, white |
| Cover | Natural rubber blend, smooth wrapped finish, blue |
| Reinforcement | High tensile synthetic textile cords, double embedded steel wire helix |
| Working pressure | 90 PSI (6 bar) |
| Burst pressure | 270 PSI |
| Vacuum | 0.9 bar |
| Temperature range | -40°C to 95°C |
| Steam cleaning | Without pressure, up to 130°C for a maximum of 30 minutes |
| Food contact listing | FDA title 21 art. 177.2600 (e) for liquid foods; BfR; KTW; phthalate free (manufacturer-stated) |
| Sizes | 20 mm and 63.5 mm hose ID |
Key specifications
| Dixon part number | Pack | Hose ID (mm) | OD (mm) | Working PSI (bar) | Burst PSI | Vacuum (bar) | Bend radius (mm) | Weight (kg/m) |
|---|---|---|---|---|---|---|---|---|
| A635020 | 5 m cut length | 19.1 | 30.0 | 90 (6) | 270 | 0.9 | 50 | 0.65 |
| A635020020 | 20 m coil | 19.1 | 30.0 | 90 (6) | 270 | 0.9 | 50 | 0.65 |
| A635065 | 5 m cut length | 63.5 | 75.0 | 90 (6) | 270 | 0.9 | 130 | 2.20 |
| A635065020 | 20 m coil | 63.5 | 75.0 | 90 (6) | 270 | 0.9 | 130 | 2.20 |
| A635065060 | 60 m coil | 63.5 | 75.0 | 90 (6) | 270 | 0.9 | 130 | 2.20 |
Figures are from Dixon's industrial hose catalogue, which lists the 20 mm hose as 19.1 mm ID. The 60 m part number A635065060 is not printed in that catalogue; the Hygienic Product Range catalogue lists A635065 in 20 m and 60 m lengths, and the 60 m coil carries the A635065 ratings.
Selecting the right option
Check the temperature and the product: the hose is rated -40°C to 95°C, and steam cleaning is without pressure only. For long, fixed runs the 20 m and 60 m coils avoid cutting; Dixon's Hygienic Product Range catalogue states a minimum cut length of 5 m, and charges apply for cutting hose (manufacturer-stated). Confirm the details with Dixon for critical dairy duty.
