Dixon A621080 76 mm x 5 m Rubber Food, Milk & Beverage Suction Hose
Out of stock

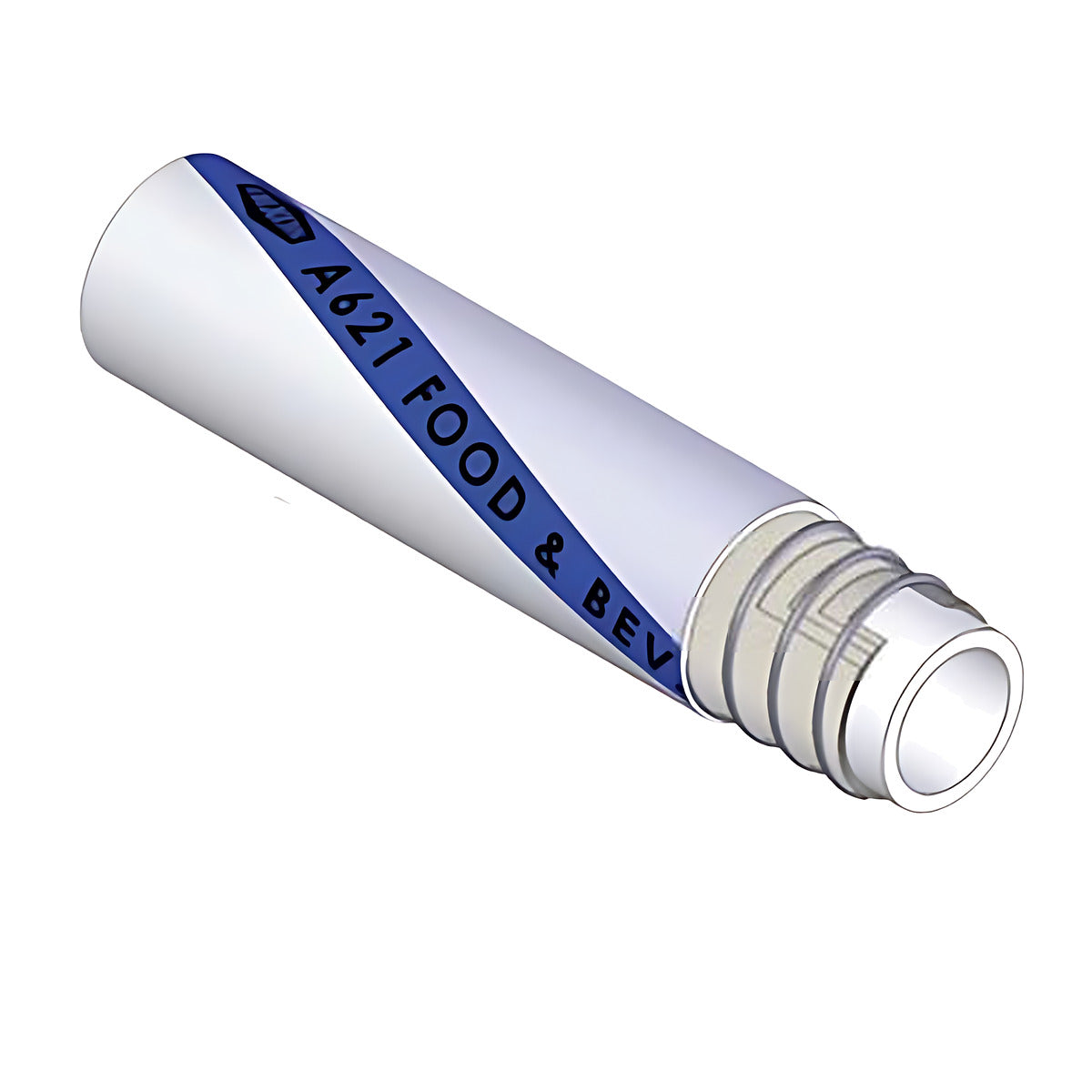

This Dixon hose is a special food suction and discharge hose with a blue and white NBR/EPDM blend tube, a blue cover with a white band and textile cord and wire helix reinforcement (manufacturer-stated). It is a 76 mm hose, supplied as a 5 m cut length or a 20 m coil.
Dixon's Hygienic Product Range catalogue rates it at 150 PSI working pressure and 450 PSI burst, with a vacuum rating of 9 m of water, and gives -40°C to 120°C for oily products and -30°C to 100°C for non-oily products (manufacturer-stated). It lists the hose as FDA compliant and conforming to the 3A sanitary standard 18-03 (manufacturer-stated).
Where this product is used
- In-plant or tank truck transfer of milk, wine, beer up to 96% alcohol, and potable water (manufacturer-stated).
- Suction and discharge lines for food and beverage duty where the tube must meet food contact requirements.
Features
- Tube: blue/white NBR/EPDM blend, food grade rubber (manufacturer-stated)
- Cover: blue with white band, smooth wrapped finish, abrasion and ozone resistant (manufacturer-stated)
- Reinforcement: high strength synthetic cord and wire helix (manufacturer-stated)
- Working pressure 150 PSI; burst pressure 450 PSI; vacuum 9 m of water (manufacturer-stated)
- Temperature -40°C to 120°C for oily products; -30°C to 100°C for non-oily products (manufacturer-stated)
- Listed as FDA compliant and conforming to 3A sanitary standard 18-03 (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Tube | NBR/EPDM blend, blue/white, food grade rubber |
| Cover | Blue with white band, smooth wrapped finish |
| Reinforcement | High strength synthetic cord and wire helix |
| Hose ID | 76.0 mm |
| Hose OD | 90.0 mm |
| Working pressure | 150 PSI |
| Burst pressure | 450 PSI |
| Vacuum | 9 m of water |
| Bend radius | 300 mm |
| Hose weight | 2.89 kg/m |
| Temperature range | -40°C to 120°C for oily products; -30°C to 100°C for non-oily products |
| Standards | FDA compliant; 3A sanitary standard 18-03 (manufacturer-stated) |
Key specifications
| Dixon part number | Pack | Hose ID (mm) | OD (mm) | Working PSI | Burst PSI | Vacuum (m of water) | Bend radius (mm) | Weight (kg/m) |
|---|---|---|---|---|---|---|---|---|
| A621080 | 5 m cut length | 76.0 | 90.0 | 150 | 450 | 9 | 300 | 2.89 |
| A62108020 | 20 m coil | 76.0 | 90.0 | 150 | 450 | 9 | 300 | 2.89 |
Figures are from Dixon's Hygienic Product Range catalogue, the only Dixon document that lists A621080. The catalogue prints the working pressure in bar as 1, which does not match 150 PSI, so no bar figure is shown. The 20 m coil part number A62108020 is not printed; it carries the A621080 ratings.
Selecting the right option
Note that this is the A621 hose, not the A621R hose (red cover) that appears in Dixon's industrial hose catalogue. For oily food products use the -40°C to 120°C range and for non-oily products the -30°C to 100°C range, as listed by Dixon (manufacturer-stated). Dixon's Hygienic Product Range catalogue states a minimum cut length of 5 m, and charges apply for cutting hose (manufacturer-stated).
Related products
Related Dixon hoses: Dixon Rubber Foodboss Milk Food & Beverage Suction & Delivery Hose, Dixon Rubber Premium Food & Wine Suction & Delivery Hose Crush Proof and Dixon Rubber Food & Beverage Delivery Hose.
