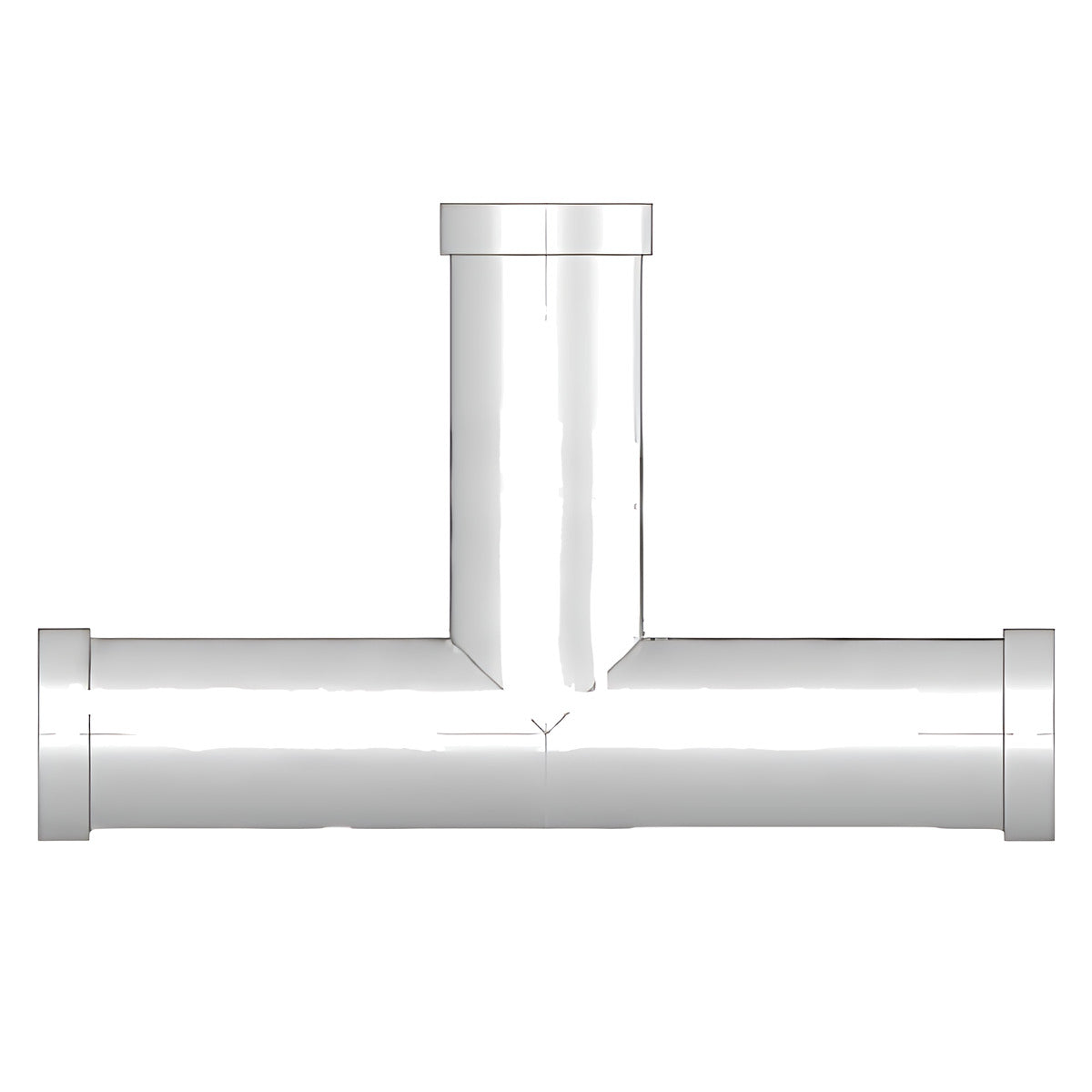

Dixon 08/048/05/000T 2" (50 mm) Shouldered Equal Tee Galvanised Mild Steel

This Dixon shouldered equal tee takes a branch of the same size off a shouldered end pipeline. It is made from galvanised mild steel for use with bolted shouldered couplings, and the store lists it in 50, 80, 100 and 150 NB (2" to 6") (manufacturer-stated).

Dixon rates the 50, 80 and 100 NB sizes at 750 PSI and the 150 NB size at 580 PSI, and publishes the L and L2 lengths for each size. It sits in Dixon's shouldered fittings range for mining and construction (manufacturer-stated).

Where this product is used

• Branch points on shouldered end pipelines in mining and construction (manufacturer-stated).
• Water lines built from shouldered pipe and bolted couplings, where a branch needs the same size as the main run.

Features

• Equal tee for shouldered end pipe, galvanised mild steel (manufacturer-stated)
• Working pressure: 750 PSI for 50 to 100 NB; 580 PSI for 150 NB (manufacturer-stated)
• Pipe OD: 60.2 mm (50 NB), 88.9 mm (80 NB), 114.3 mm (100 NB), 165.1 mm (150 NB) (manufacturer-stated)
• L and L2 lengths published for every size (manufacturer-stated)

Common specifications

Key specifications

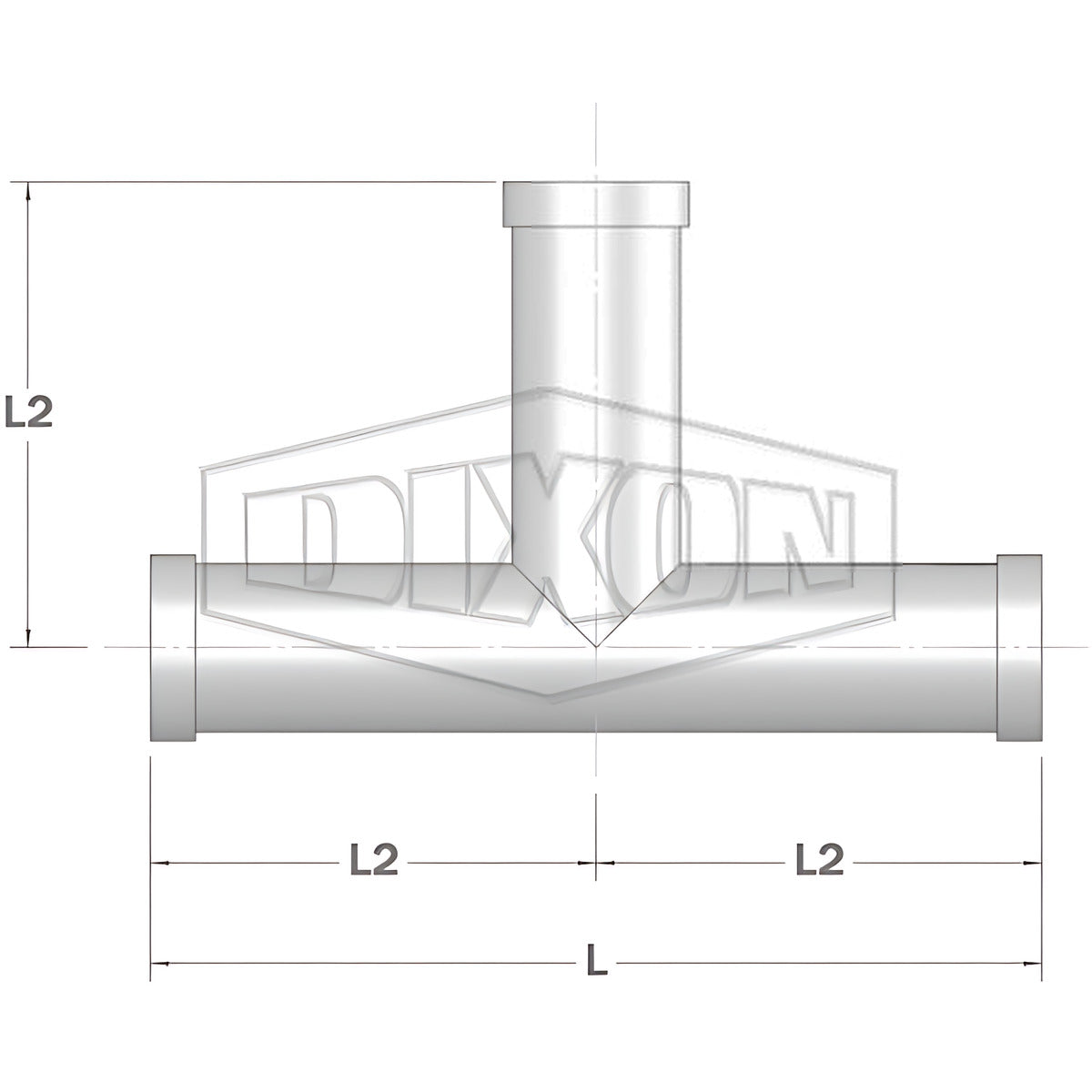

L and L2 are the lengths shown in Dixon's catalogue table. Dixon also lists a 200 NB equal tee (08/048/05/006T) and a shouldered offset equal tee; they are not part of this product.

Selecting the right option

Match the tee to the pipe OD of your shouldered pipe, which is 60.2 mm for 50 NB, 88.9 mm for 80 NB, 114.3 mm for 100 NB and 165.1 mm for 150 NB. You need a bolted shouldered coupling and a coupling gasket at each of the three ends, and the 150 NB size has the lower 580 PSI rating.

Related products

Related Dixon shouldered fittings: Dixon Shouldered Y Piece Galvanised Mild Steel, Dixon Shouldered Blank End - Galvanised Mild Steel and Dixon Shouldered Bolted Coupling - Iron. Seals: Dixon Seal For Shouldered Coupling Buna-N.
