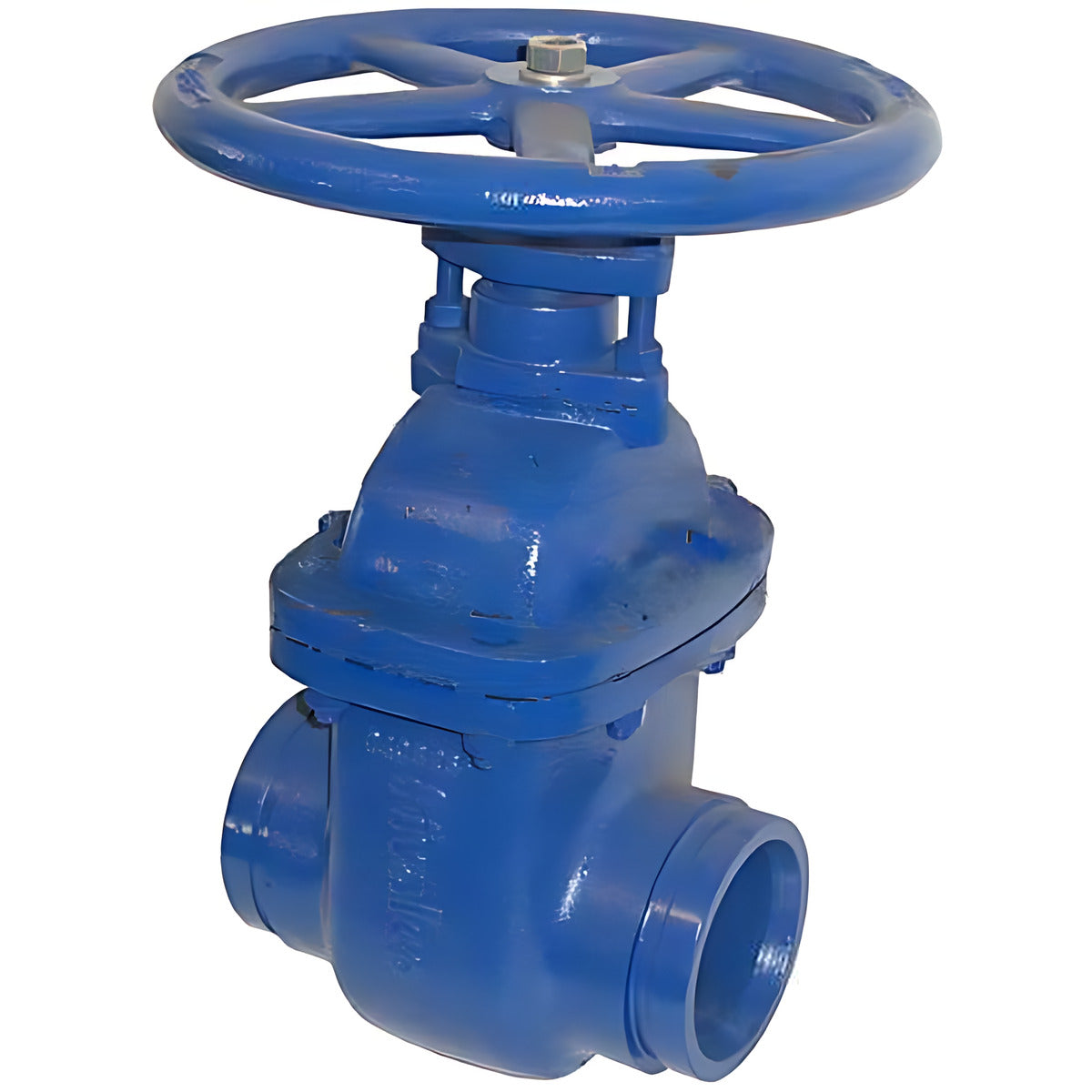

Dixon GVNR-S-1161-150 6" (150 mm) Shouldered Ductile Iron Gate Valve

This Dixon gate valve has a ductile iron body, a non-rising stem and shouldered ends, with the shoulder dimensions made to suit metric pipe. It is listed in Dixon's mining range for water and slurry (manufacturer-stated).

Dixon gives the body as ductile iron, the stem as stainless steel, the seat as bronze and the wedge as cast iron, and states that the valve conforms to BS5150 and is PN20 rated (manufacturer-stated). This listing covers 100 mm (4 in) and 150 mm (6 in).

Where this product is used

• Water and slurry lines in mining (manufacturer-stated).
• Isolation points on pipework with shouldered ends sized to metric pipe.

Features

• Ductile iron body, stainless steel stem, bronze seat, cast iron wedge (manufacturer-stated)
• Non-rising stem (manufacturer-stated)
• Shouldered ends made to suit metric pipe (manufacturer-stated)
• Conforms to BS5150, PN20 rated (manufacturer-stated)
• Face to face: 229 mm (100 mm) and 292 mm (150 mm) (manufacturer-stated)

Common specifications

Key specifications

Face-to-face lengths are from Dixon's catalogue table (Figure GVNR-S-1161).

Selecting the right option

These are mining valves for shouldered pipe, not flanged or threaded: check the shoulder profile on your pipe or adaptors before ordering. The stem does not rise, so the valve suits tight spaces, but you cannot see the position from the stem. Dixon's catalogue gives no temperature range for this valve.
