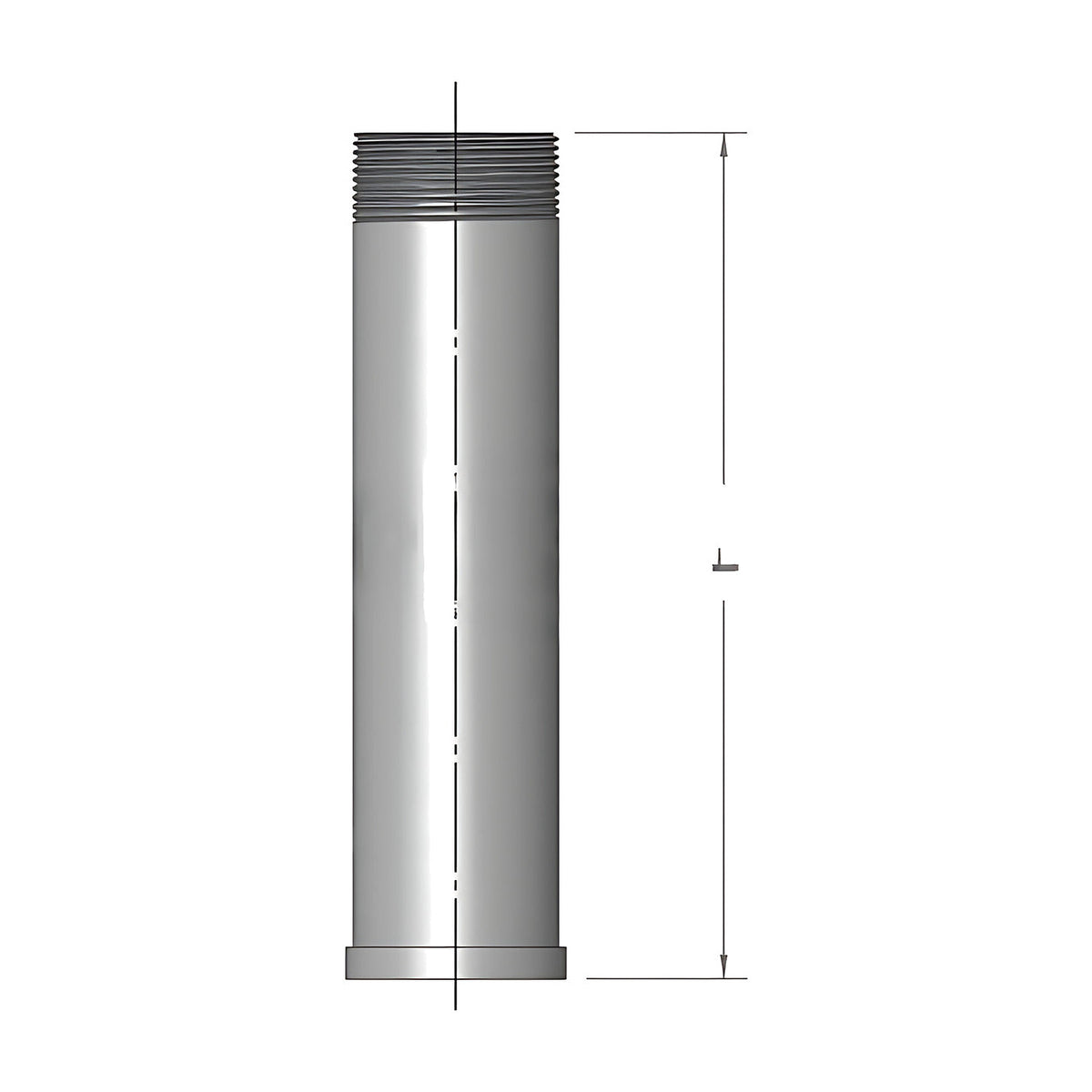

Dixon 08/048/10/000 2" (50 mm) Shouldered Screwed Adaptor Short Series
Available
This Dixon shouldered screwed adaptor has a shouldered end for a bolted shouldered coupling and a BSPT male thread, so a shouldered line can connect to threaded valves and fittings. The store lists the short series in 50, 80, 100 and 150 NB (2" to 6") (manufacturer-stated).
Dixon rates the 50, 80 and 100 NB sizes at 750 PSI and the 150 NB at 580 PSI, with short lengths of 150, 150, 75 and 150 mm. The 50 and 100 NB parts (08/048/10/000 and 08/048/10/003) are marked in the catalogue as a one piece casting design in plated SG iron, which differs from the galvanised mild steel in the store title (manufacturer-stated).
Where this product is used
- Connecting a threaded BSPT valve or fitting to shouldered end pipe in mining and construction (manufacturer-stated).
Features
- Shouldered x BSPT male threaded adaptor, short series (manufacturer-stated)
- BSP thread size equals the NB size: 50, 80, 100 or 150 mm (manufacturer-stated)
- Working pressure: 750 PSI (50 to 100 NB), 580 PSI (150 NB) (manufacturer-stated)
- 08/048/10/000 and 08/048/10/003: one piece casting design, plated SG iron (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Ends | Shouldered x BSPT male thread |
| Material | Mild steel, galvanised, except one piece plated SG iron casting for 08/048/10/000 and 08/048/10/003 |
| Working pressure | 750 PSI (50 to 100 NB); 580 PSI (150 NB) |
| Series | Short (long series parts carry a T suffix) |
| Sizes | 50, 80, 100 and 150 NB |
Key specifications
| Dixon part number | Size (NB) | Pipe OD (mm) | BSP (mm) | Working pressure | Length (mm) | Construction |
|---|---|---|---|---|---|---|
| 08/048/10/000 | 2" (50 mm) | 60.2 | 50 | 750 PSI | 150 | One piece casting, plated SG iron |
| 08/048/10/002 | 3" (80 mm) | 88.9 | 80 | 750 PSI | 150 | Per product title |
| 08/048/10/003 | 4" (100 mm) | 114.3 | 100 | 750 PSI | 75 | One piece casting, plated SG iron |
| 08/048/10/005 | 6" (150 mm) | 165.1 | 150 | 580 PSI | 150 | Per product title |
Dixon also lists long series versions, 08/048/10/000T (318 mm long) and 08/048/10/003T (470 mm long), which are not part of this product. The one piece casting footnote in Dixon's catalogue is attached to 08/048/10/000 and 08/048/10/003 only.
Selecting the right option
Check whether you need the short series (this product) or the long series, which is more than twice as long on the 50 and 100 NB sizes. Match the BSPT thread to your valve or fitting, and use a thread sealant suited to the fluid. A bolted shouldered coupling joins the shouldered end to the pipe.
Related products
Related Dixon shouldered fittings: Dixon Reducing Shouldered Adapter x BSP Galvanised Mild Steel, Dixon Shouldered Bolted Coupling - Iron and Dixon Shouldered Blank End With Female BSP Outlet Galvanised Mild Steel.
