Hobson WRMSZSQ100018 1" x 3/16" Imperial Spring Washer, Square Section, Zinc Plated
Available
This page lists 21 items of the Hobson imperial spring washer, square section (mild steel, zinc plated): 1/8" to 1".

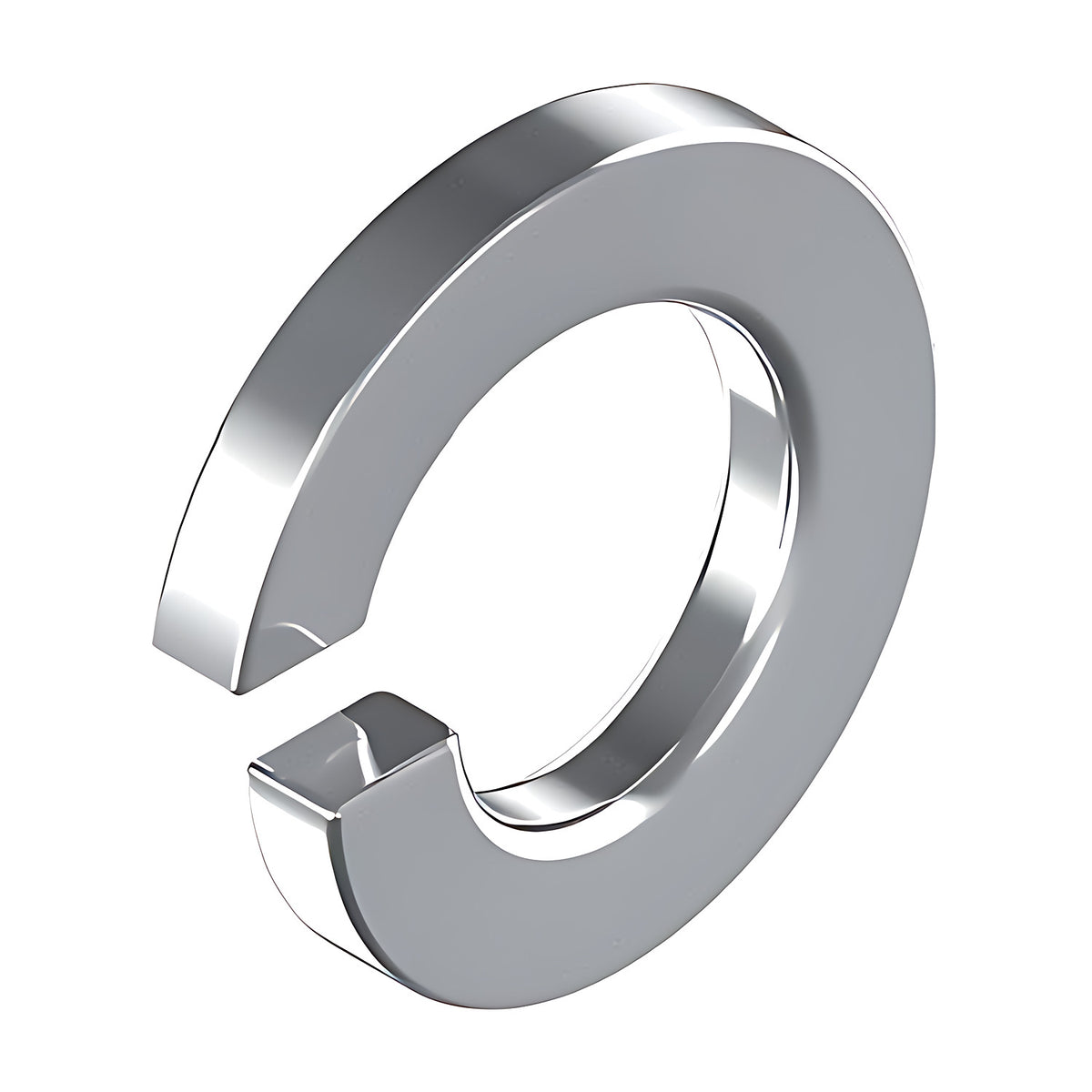

A spring washer is a split ring fitted under a nut or bolt head. In a square section spring washer the ring has a square cross-section.
Pack quantity varies by size and is shown for each item in the table.
Where this product is used
- Fitted under a nut or bolt head as a spring washer
- Where an assembly calls for a spring washer under the nut
Features
- 21 items: 1/8" to 1"
- Mild steel, zinc plated
- Dimensions labelled where the store option or stock list states them
- Pack quantity shown for each item
Common specifications
| Specification | Detail |
|---|---|
| Sizes | 1/8" to 1" |
| Material | Mild steel |
| Finish | Zinc plated |
Key specifications
| Model | Size | Inside diameter x thickness | Supplied as |
|---|---|---|---|
| WRMSZSQ012004 | 1/8" | 1/8 x 3/64" | Box of 200 |
| WRMSZSQ015004 | 5/32" | 5/32 x 3/64" | Box of 200 |
| WRMSZSQ015006 | 5/32" | 5/32 x 1/16" | Box of 200 |
| WRMSZSQ018004 | 3/16" | 3/16 x 3/64" | Box of 200 |
| WRMSZSQ018006 | 3/16" | 3/16 x 1/16" | Box of 200 |
| WRMSZSQ025006 | 1/4" | 1/4 x 1/16" | Box of 200 |
| WRMSZSQ025009 | 1/4" | 1/4 x 3/32" | Box of 200 |
| WRMSZSQ031007 | 5/16" | 5/16 x 5/64" | Box of 200 |
| WRMSZSQ031009 | 5/16" | 5/16 x 3/32" | Box of 200 |
| WRMSZSQ037009 | 3/8" | 3/8 x 3/32" | Box of 200 |
| WRMSZSQ037012 | 3/8" | 3/8 x 1/8" | Box of 200 |
| WRMSZSQ043009 | 7/16" | 7/16 x 3/32" | Box of 200 |
| WRMSZSQ050011 | 1/2" | 1/2 x 7/64" | Box of 200 |
| WRMSZSQ050012 | 1/2" | 1/2 x 1/8" | Box of 200 |
| WRMSZSQ050015 | 1/2" | 1/2 x 5/32" | Box of 200 |
| WRMSZSQ062012 | 5/8" | 5/8 x 1/8" | Box of 200 |
| WRMSZSQ075018 | 3/4" | 3/4 x 3/16" | Box of 200 |
| WRMSZSQ075025 | 3/4" | 3/4 x 1/4" | Box of 50 |
| WRMSZSQ087018 | 7/8" | 7/8 x 3/16" | Box of 100 |
| WRMSZSQ100018 | 1" | 1 x 3/16" | Box of 50 |
| WRMSZSQ100031 | 1" | 1 x 5/16" | Box of 50 |
Selecting the right option
Choose the washer by the bolt size it is made for, then check the dimensions in the table: more than one thickness is listed for some sizes. Zinc plating is a thin zinc coating; hot dip galvanised washers carry a thicker one. For a similar washer in another material, finish or size range see Hobson Imperial Spring Washer, Square Section, Hot Dip Galvanised, 1/4" to 1".
