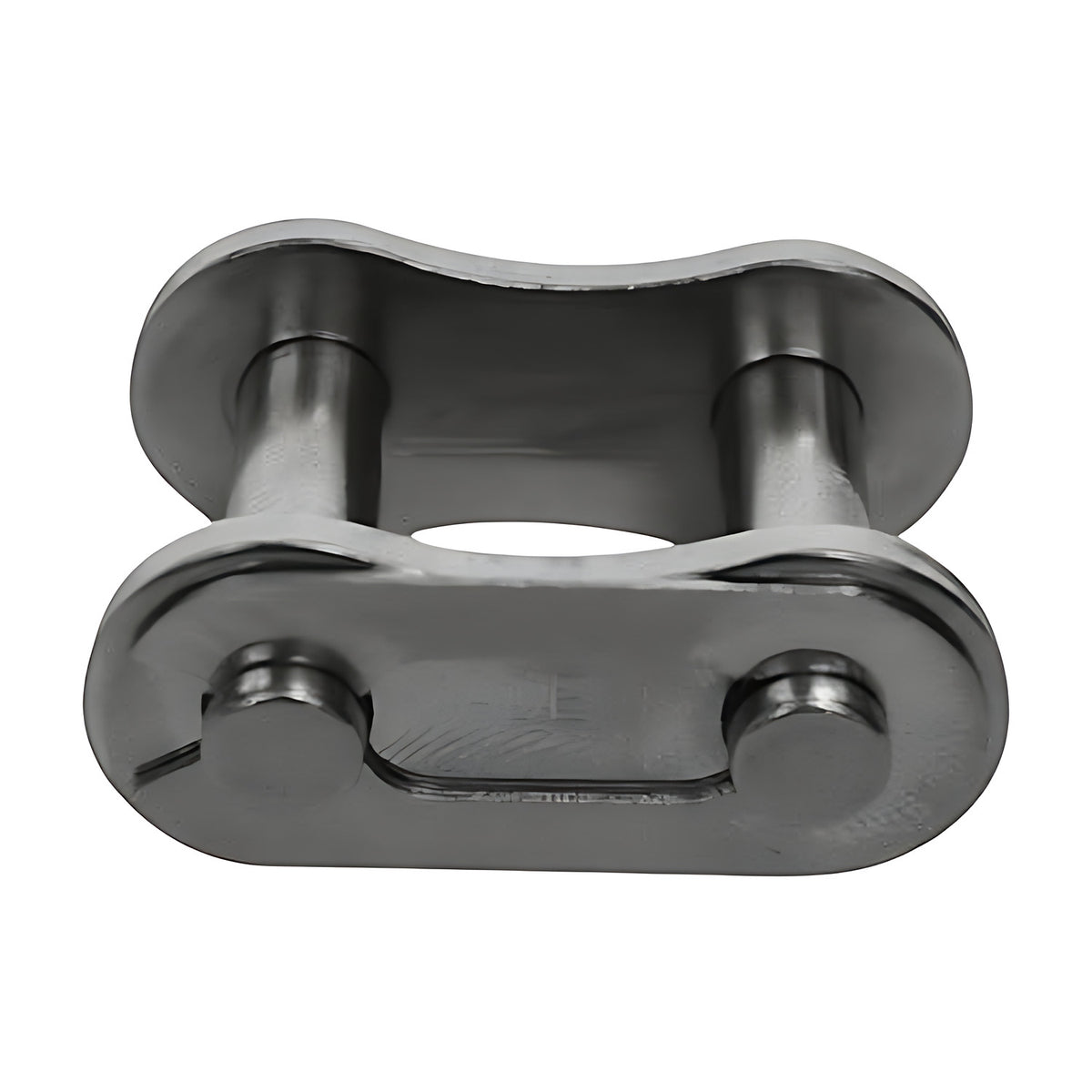

KCM 08BN BS Nickel Plated Roller Chain Connecting Link Simplex, 1/2 in Pitch

KCM connecting links join the ends of a length of BS nickel plated simplex roller chain into a continuous loop. Match the link to the KCM chain with the same chain number, strand count and series.

AIMS Industrial supplies these links individually. This listing covers 3 sizes (08BN, 10BN and 12BN). All parts plated with KCM Rustop special nickel.

Where this product is used

• Applications that need corrosion resistance and a plated finish
• Light-duty drives in damp or mild corrosive areas
• Replacing steel chain where a plated chain is preferred

Features

• Matched to the KCM chain of the same number and series
• Joins the chain ends into a continuous loop
• All parts plated with KCM Rustop special nickel
• Attractive nickel plated appearance and corrosion resistance
• Maximum allowable load is about 15% lower than standard steel chain

Key specifications

Available sizes

Selecting the right option

For BS chain the number is the pitch in sixteenths of an inch: 08B is 8/16 in (1/2 in), 12B is 12/16 in (3/4 in), 16B is 1 in. The figure after the dash is the number of strands.

Choose nickel plated chain where you want corrosion resistance on a standard steel chain design, and the temperature stays between -10 and +60 degrees C. Size it on the nickel plated allowable load, not the steel figure.

KCM does not publish a maximum allowable load for BS nickel plated chain, so none is shown. Ask AIMS if you need one before ordering.

Fitting and use

KCM says not to replace damaged parts of a chain with new ones. Replace the whole chain, and check the sprockets when changing chain.

Check that a safety cover is fitted before running a chain drive.

Related products

Matching chain: KCM Nickel Plated BS Roller Chain Simplex 08BN, 10BN and 12BN, 10 ft Box. Matching offset links: KCM Nickel Plated BS Roller Chain Offset Link (Half Link) Simplex 06BN-12BN.
