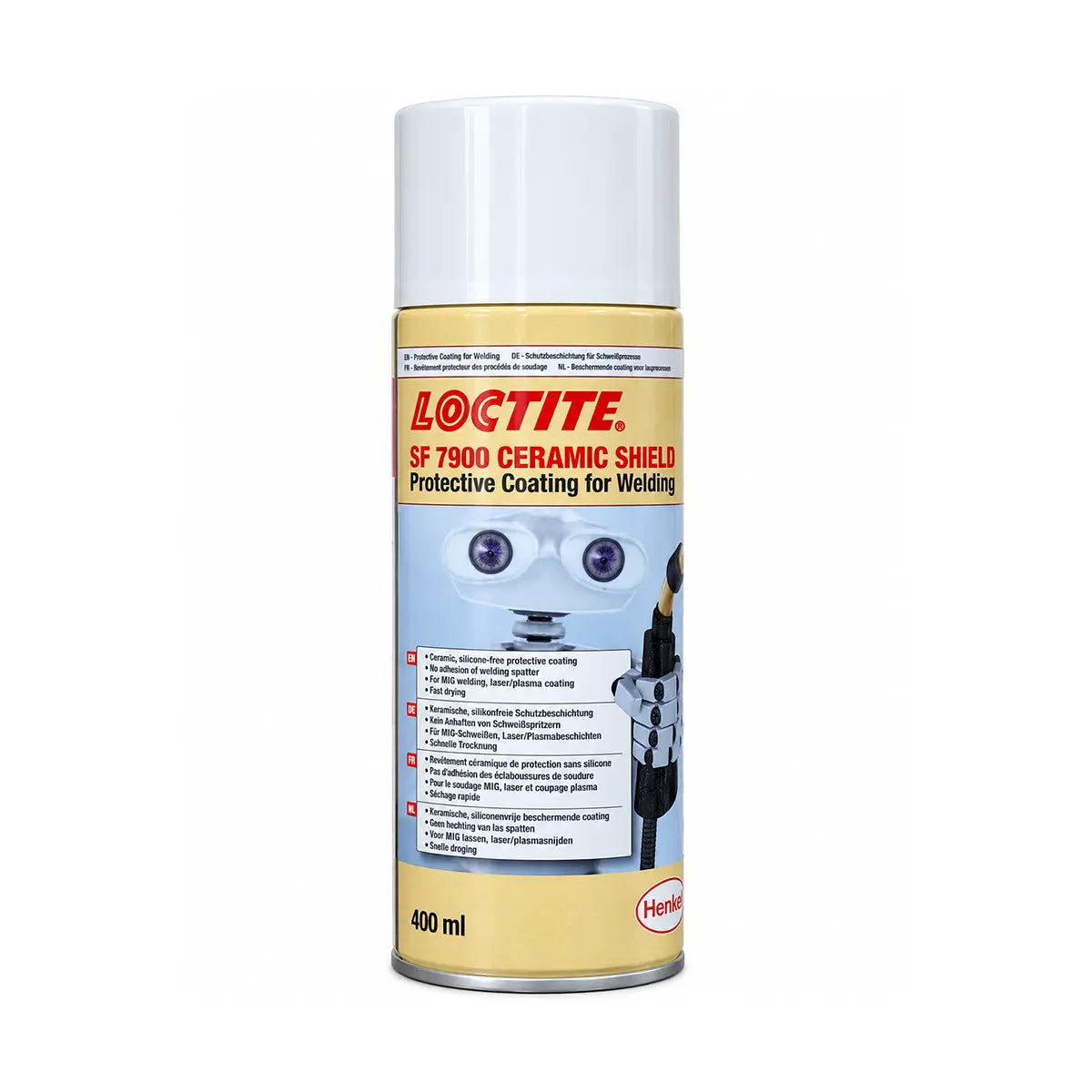

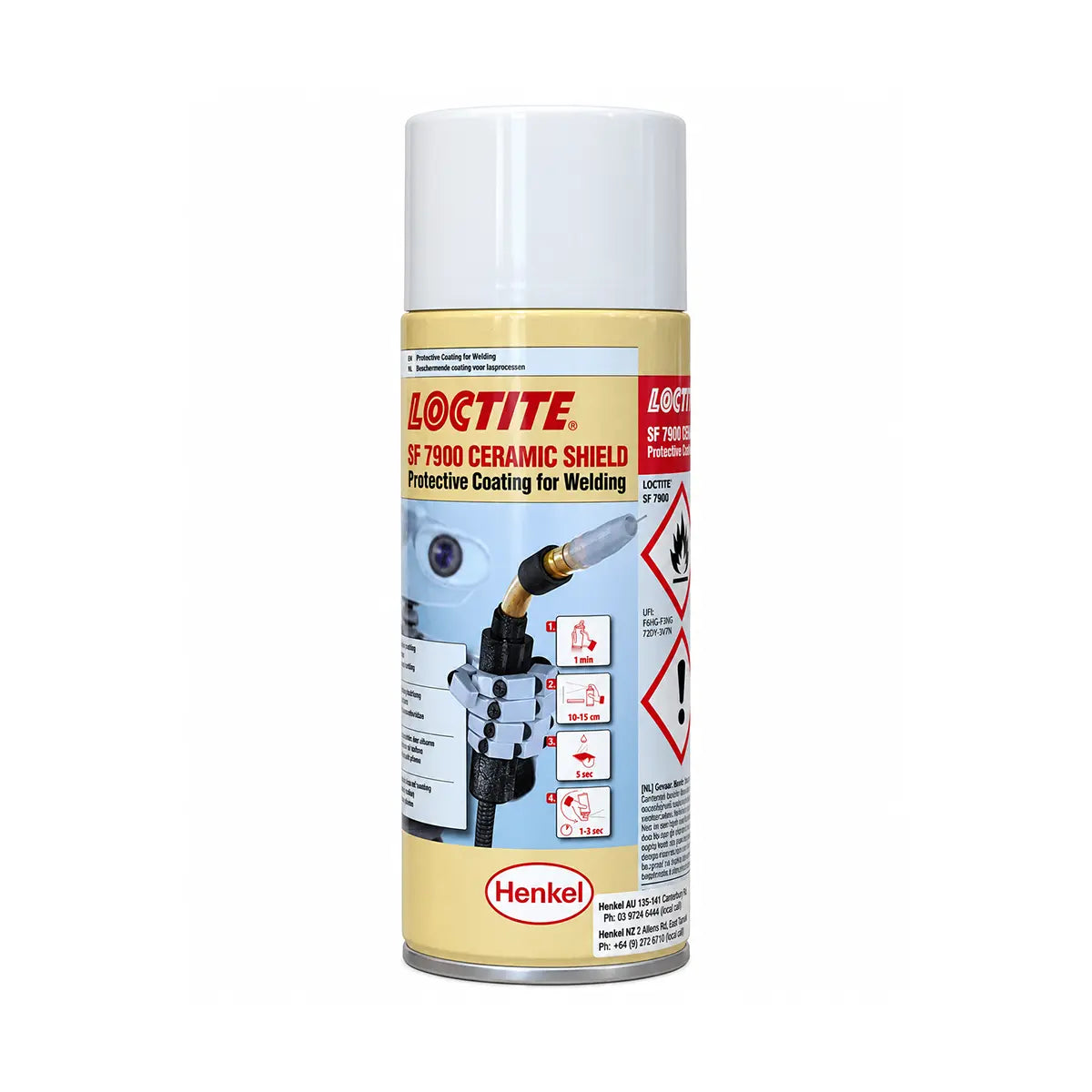

Loctite SF 7900 Anti-Spatter For Welding - 270g
Available
Loctite SF 7900 Ceramic Shield, also known as Loctite Ceramishield, is a ceramic dry-film protective coating for MIG/MAG welding processes. It is a silicone-free boron nitride coating supplied as a 270g spray with a propane/butane propellant.
Applied to contact tips and welding nozzles, it prevents spatter adhesion and gives significantly longer processing times without cleaning, with reduced downtime. It also protects jigs, fixtures or fittings, power cables, sensors, metal components and the jaws of spot welding systems.
Where this product is used
- Contact tips and welding nozzles on MIG/MAG welding equipment
- Jigs, fixtures and fittings near the weld
- Power cables and sensors
- Jaws of spot welding systems
- Plasma torch or cutter tips, with the air purge kept on during application
- Other metal components that need protection from spatter
Features
- Ceramic dry-film coating based on boron nitride
- Silicone-free
- Translucent liquid that leaves a white film as the solvents evaporate
- Dries in 5 to 10 seconds at room temperature, thicker films need longer
- Once welding begins, the film hardens on the equipment surface from the heat
- Surfaces not exposed to extra heat can be used straight after drying
- Spray application from about 10 to 15cm
Key specifications
| Specification | Detail |
|---|---|
| Brand | Loctite |
| Chemical type | Boron nitride |
| Technology | Surface treatment; ceramic dry-film protective coating for MIG/MAG welding |
| Appearance | Translucent liquid; white film after the solvents evaporate |
| Silicone content | Silicone-free |
| Pack | 270g spray |
| Propellant | Propane/butane |
| Odour | Solvent |
| Drying | 5 to 10 seconds at room temperature; thicker films need longer |
| Spray distance | About 10 to 15cm |
| Application temperature | Below 65 °C |
| Welding process | MIG/MAG |
| Storage | 8 °C to 21 °C, unopened, dry location |
Choosing the right option
To clean and degrease the surface before spraying, see Loctite SF 7063 General Purpose Cleaner - 400ml Aerosol or Loctite SF 7840 Biodegradable Cleaner Degreaser.
It is for MIG/MAG welding processes.
See also: Loctite SF 7063 General Purpose Cleaner - 400ml Aerosol, Loctite SF 7840 Biodegradable Cleaner Degreaser, Loctite SF 7617 Industrial Hand Wipes - 75 Wipe Canister, Loctite 230824 Brake And Parts Cleaner Aerosol Spray - 417g.
Using it
Clean and degrease the surface. Shake the can for at least 1 minute, then spray from about 10 to 15cm. Apply sparingly, as excessive thickness causes the film to flake off.
Apply at temperatures below 65 °C. On a plasma torch or cutter tip, keep the air purge on during application.
The film dries within 5 to 10 seconds at room temperature; thicker films need longer. Once welding begins, the film hardens on the equipment surface from the heat generated.
Storage and handling
Store in the unopened container in a dry location. Temperature range 8 °C to 21 °C as the optimal range. Storage below 8 °C or above 28 °C can adversely affect the properties of the product.
Limits and safety
Not recommended for pure oxygen or oxygen-rich systems, and do not be selected as a lubricant for chlorine or other strong oxidising materials. Read the safety data sheet before use.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Loctite SF 7900 Anti-Spatter For Welding - 270g
SKU: A0116610 | Model: 1442099-LOC
Loctite 1442099-LOC: loctite SF 7900 Ceramic Shield anti-spatter spray. Size: 270g. Type: Ceramic dry-film anti-spatter coating.
