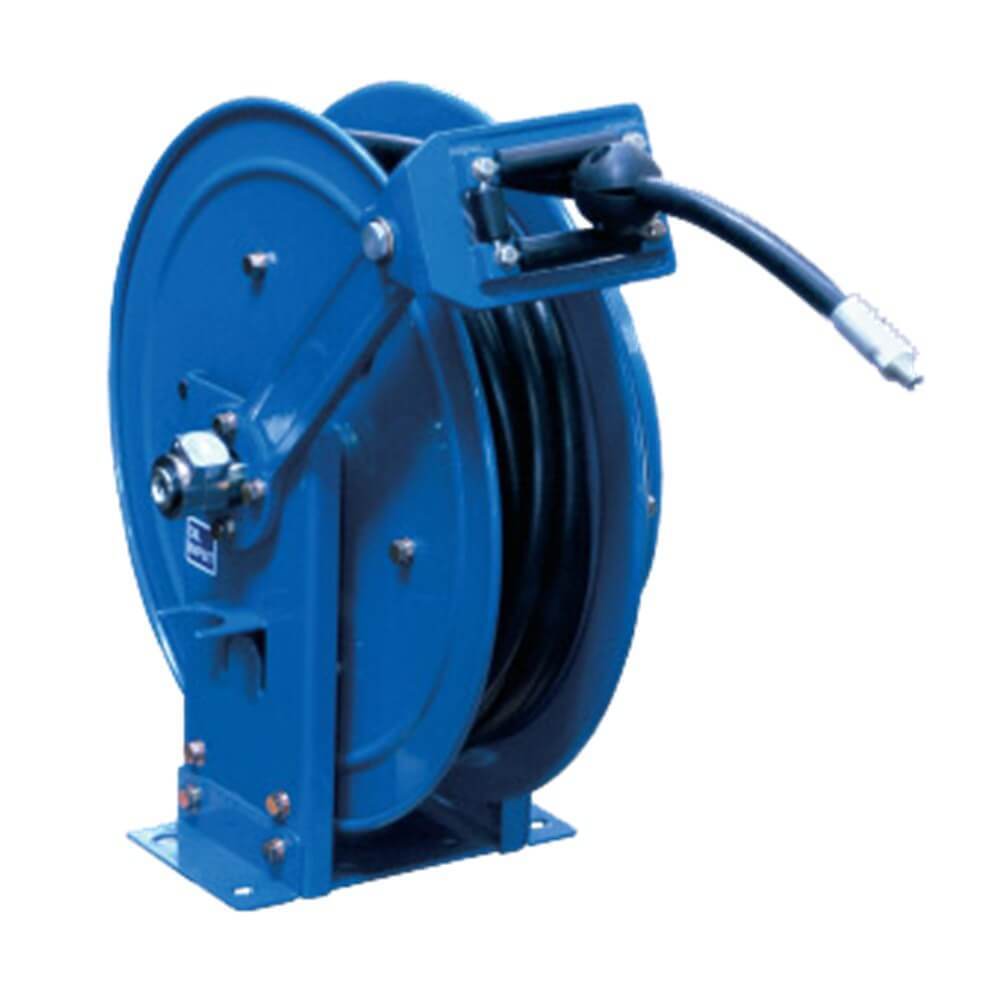

Macnaught 6mm x 15m Single Pedestal Grease Reel MGS0615-01
Available
The Macnaught MGS0615-01 is a spring-rewind grease hose reel. It comes fitted with 15m of 6mm (1/4") inside diameter SAE100 R2 rubber hose and has 1/4" BSP connections. It is suited to longer hose demands in medium and large workshops. Maximum operating pressure is 34,500 kPa (5,000 psi) and the maximum temperature is 100°C.
Single pedestal means the reel drum is carried on one support. BSP is the British Standard Pipe thread. (F) means female and (M) means male. Working pressure is the highest pressure the reel and hose are rated for, and line pressure must not exceed it. Skin contact with pressurised air or fluid could result in severe bodily injury. Mounting hardware is not included, so buy fixings separately. The swivel seals on this grease reel cannot be replaced. For heavy-duty truck mount and mine use, Macnaught offers the twin pedestal MGTP0615-01 with the same 6mm hose.
Where this product is used
- Grease lines in a medium to large workshop
- Greasing stations that need 15m of hose off the floor
- Fleet and plant maintenance bays
Features
- Fitted with 15m x 6mm i.d. SAE100 R2 rubber hose
- Rated for grease
- Maximum operating pressure of 34,500 kPa (5,000 psi)
- Maximum operating temperature of 100°C
- 1/4" BSP (F) reel inlet and 1/4" BSP (M) hose outlet
- Wall and floor mounting bracket built into the reel
- Spring-rewind: pull the hose out and it latches, then rewinds when released
- Line pressure must not exceed the reel's rated operating pressure
- Skin contact with pressurised air or fluid could result in severe bodily injury
Key specifications
| Specification | Detail |
|---|---|
| Brand | Macnaught |
| Model | MGS0615-01 |
| Part number | MGS0615-01 |
| Type | Single pedestal, spring-rewind |
| Fluid | Grease |
| Hose | 15m x 6mm i.d. SAE100 R2 rubber hose |
| Working pressure | 34,500 kPa (5,000 psi) |
| Maximum temperature | 100°C |
| Reel inlet | 1/4" BSP (F) |
| Hose outlet | 1/4" BSP (M) |
Supplied with
- Reel with 15m x 6mm i.d. Rubber hose fitted
- Built-in wall and floor mounting bracket
- Mounting hardware is not included
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Macnaught 6mm x 15m Single Pedestal Grease Reel MGS0615-01
SKU: A0082794 | Model: MGS0615-01
The MGS0615-01 is a single pedestal, spring-rewind reel for grease. It has 15m of 6mm i.d. SAE100 R2 rubber hose fitted and 1/4" BSP connections, rated up to 34,500 kPa (5,000 psi) and 100°C. Mounting hardware is not included.
