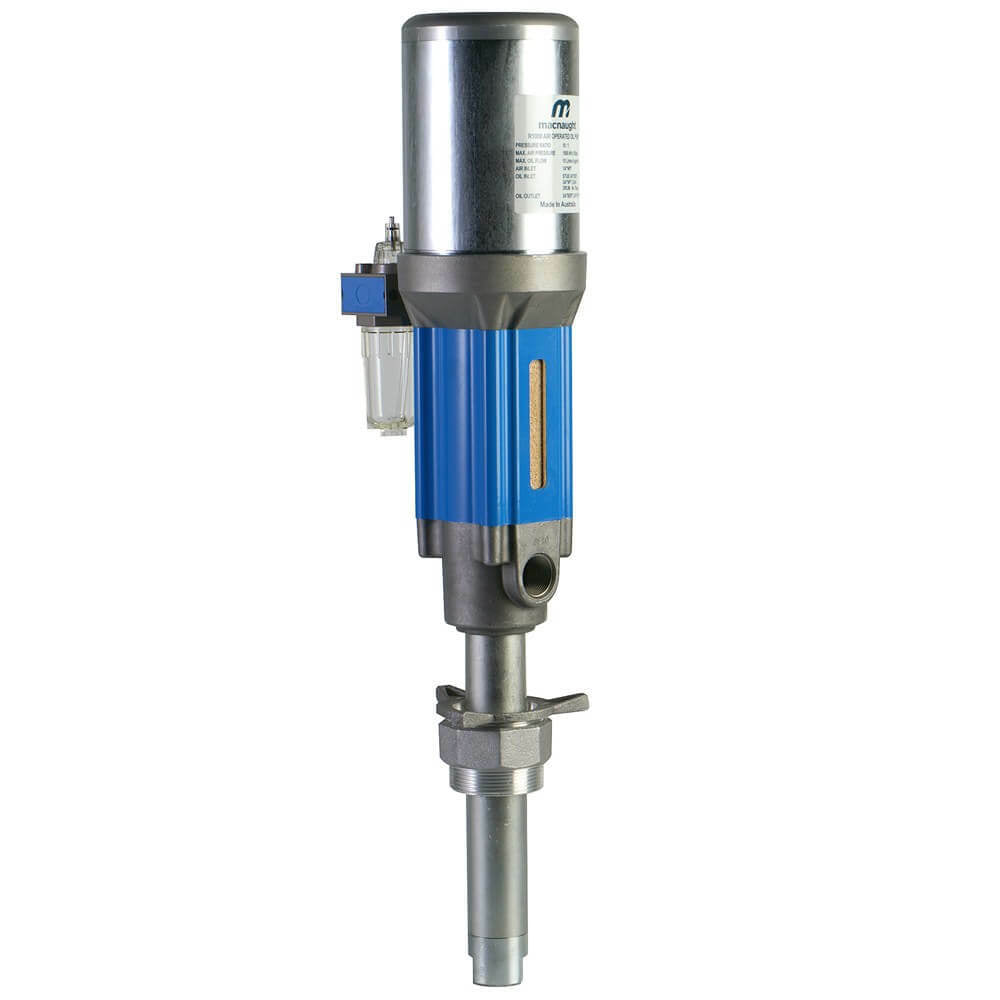

Macnaught R1000S-01 10:1 Stub Oil Pump, 18 L/min

The Macnaught R1000S-01 is a 10:1 air-operated stub oil pump for workshops and sites that pump oil a long way. It has the most push of any pump in the R-series. It is the choice for medium flow over very long distances, with a free flow of up to 18 L/min. It is rated for oils up to SAE140, coolants, kerosene and diesel.

The R-series is Macnaught's heavier-duty air-operated oil pump range. It has a heavy-duty aluminium and steel air motor with large exhaust ports to prevent icing, and it comes with an airline lubricator and a 2" bung adaptor. The ratio is how much the pump multiplies your air pressure at the oil outlet. A higher ratio gives more push for long hose runs and thick oil, but usually less oil per minute. A lower ratio usually moves more oil with less push. At 10:1 this pump pushes hard, so it suits very long hose runs, but it moves less oil than the 5:1 and 3:1 models. This is the stub version. It is the pump only, with no drum suction tube, and it is best for wall or remote mounting. The ST003AS suction tube set is sold separately. Choose the R1000S only if your hose run is very long or you need the extra push. For more oil per minute on shorter runs, the 5:1 R500S moves up to 32 L/min.

Where this product is used

• Moving oil over very long distances to remote dispensing points
• Wall or remote mounted oil pumping in medium to large workshops
• Mobile applications that need an air-operated oil pump
• Pumping oils up to SAE140, coolants, kerosene and diesel

Features

• 10:1 ratio for very long hose runs and thick oil
• Free flow of up to 18 L/min on SAE10 oil, 17 L/min on 15W-40 and 15 L/min on SAE90
• Handles oils up to SAE140, coolants, kerosene and diesel
• Heavy-duty aluminium and steel air motor with large exhaust ports to prevent icing
• Maximum air inlet pressure of 1035 kPa (150 psi), with 6.9 bar recommended
• Maximum static head of 100 m (328 ft)
• Supplied with an airline lubricator and a 2" bung adaptor
• Recommended with the TD20-BLACKS wall bracket, an HG Series oil control gun and the TB25S telescopic suction tube
• Service parts from Macnaught: R1000-1K major service kit and R1000-2K seal kit

Key specifications

Supplied with

• Pump with airline lubricator
• 2" bung adaptor
• No suction tube. The ST003AS suction tube set is sold separately
