#4-2 Blind Rivet, 304 Stainless Steel - RILA242

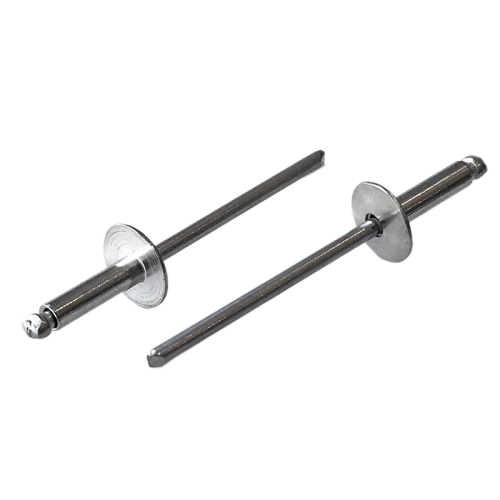

The Rivet A2 (304) Large Flange Stainless Steel is available in 17 sizes (#4-2 to #6-12) and is a blind rivet set from one side of the work with a rivet tool. The mandrel is pulled through the rivet body, which expands to clamp the sheet, and the mandrel then breaks off.

The range runs to 17 variants, covering sizes #4-2 to #6-12. Pack quantities depend on size: packs of 250 to 1000.

Made from 304 (A2) stainless steel, a standard austenitic grade with good everyday corrosion resistance. It is a sound choice away from the coast; in chloride-exposed settings, step up to 316 (A4).

In wet conditions, keep stainless steel apart from aluminium and galvanised steel with a washer or sleeve, to reduce the risk of galvanic corrosion.

Where this product is used

• Signs, furniture and fittings
• Joining sheet metal where only one side is accessible
• Ducting, signage and enclosures
• Indoor architectural and joinery work
• Bulk jobs and trade or maintenance stores buying in larger packs
• General workshop and maintenance use

Features

• Permanent mechanical joint without heat
• Choice of 17 sizes, #4-2 to #6-12
• Set from one side with a rivet tool
• Supplied in packs of 250 to 1000
• A2 (304) stainless steel for indoor, fresh water and general outdoor use

Key specifications

Selecting the right option

Choose the rivet diameter and grip range to suit the material stack thickness. Sizes are shown as diameter-length code (for example 4-2 for 4 mm diameter and grip code 2). Check that the rivet tool you own can set stainless steel rivets of that diameter. Near the coast, around pools or in marine settings, use the A4 (316) version instead: Rivet A4 (316) Open Type Stainless Steel.

Related products

Other versions in this range: Open Type Blind Rivet - 304 Stainless Steel and Rivet A2 (304) CSK Stainless Steel.
