Saber 1/4" Oval Burr, 8020-SE1
Available

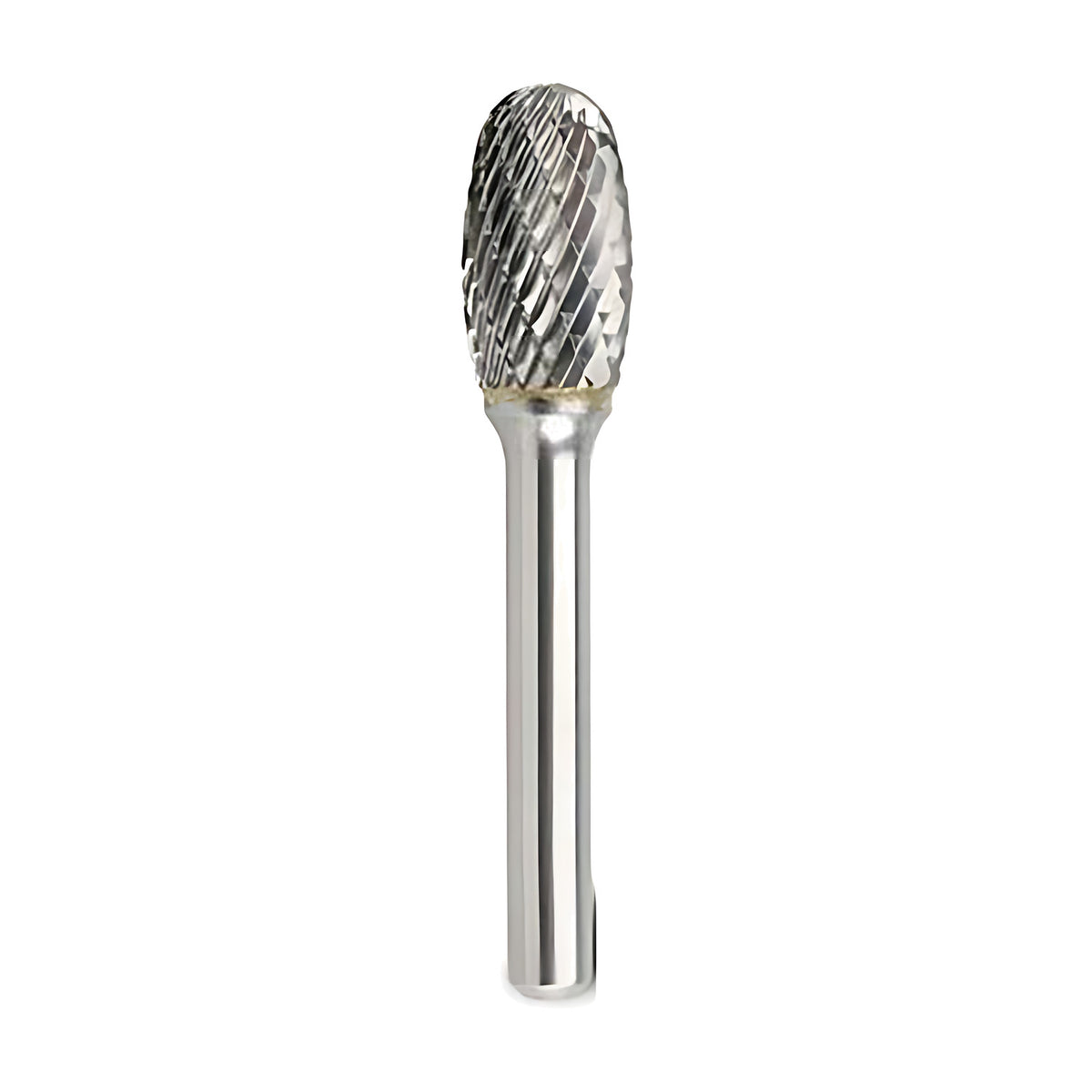

The Saber Oval Shape Burr is a tungsten carbide rotary burr with an oval head. It is an express cut (also called double cut) burr, a general purpose burr for rapid stock removal with better operator control. Tradespeople, fabricators and maintenance fitters use burrs like this to cut, shape and clean up steel, castings and welds.
Compared with a standard cut burr it makes smaller chips and can run at lower tool speeds. It is ideal for carbon steel, cast iron, high strength steel, stainless steel, steel castings, steel welds, titanium alloy and fibreglass composite. For aluminium, brass, copper, bronze or plastic, choose a non-ferrous cut burr instead. To choose, pick the head diameter: 1/4", 3/8" or 1/2". The bigger the head, the longer the flute (3/8", 5/8" or 7/8"). Every option has a 1/4" shank and is sold as one burr.
Where this product is used
- Cutting and shaping carbon steel, cast iron and high strength steel
- Working stainless steel, steel castings and steel welds
- Shaping titanium alloy and fibreglass composite
Features
- Tungsten carbide express cut (double cut) burr for rapid stock removal
- Smaller chips and lower tool speeds than a standard cut burr, with better operator control
- Oval head shape
- Head diameters of 1/4", 3/8" and 1/2" across the options
- Overall lengths of 2", 2-3/8" and 2-5/8"
- 1/4" shank on every option, sold as one burr per pack
- Use constant movement and light pressure, and do not sink the burr more than one third of its periphery
- Harder materials need slower speeds and smaller burrs need faster speeds. Running too slow causes chipping and running too fast wears the teeth early
- Do not let the burr get too hot, as the braze can soften and the head can come off the shank. Worn tools and collets also cause chipping
Key specifications
| Specification | Detail |
|---|---|
| Brand | Saber |
| Part numbers | 8020-SE1, 8020-SE3, 8020-SE5 |
| Type | Express cut (double cut) tungsten carbide rotary burr |
| Shape | Oval burr |
| Material | Tungsten carbide |
| Finish | Bright |
| Shank | 1/4" |
| Pack quantity | 1 |
| 8020-SE1 | Head 1/4", flute length 3/8", overall length 2" |
| 8020-SE3 | Head 3/8", flute length 5/8", overall length 2-3/8" |
| 8020-SE5 | Head 1/2", flute length 7/8", overall length 2-5/8" |
Supplied with
- One burr per pack
Choosing the right option
| Option | Part number | SKU |
|---|---|---|
| SE-1 | 8020-SE1 | A0207465 |
| SE-3 | 8020-SE3 | A0207466 |
| SE-5 | 8020-SE5 | A0207467 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Saber Oval Shape Burr: SE-1
SKU: A0207465 | Model: 8020-SE1
The 1/4" head oval burr (8020-SE1) has a flute length of 3/8" and is 2" long overall. It has a 1/4" shank. As the smallest oval in the range it needs a faster running speed than the larger two.
