Saber S3 Tap and Die Set - UNC/UNF and 1/8" NPT - 8050-S3
Available

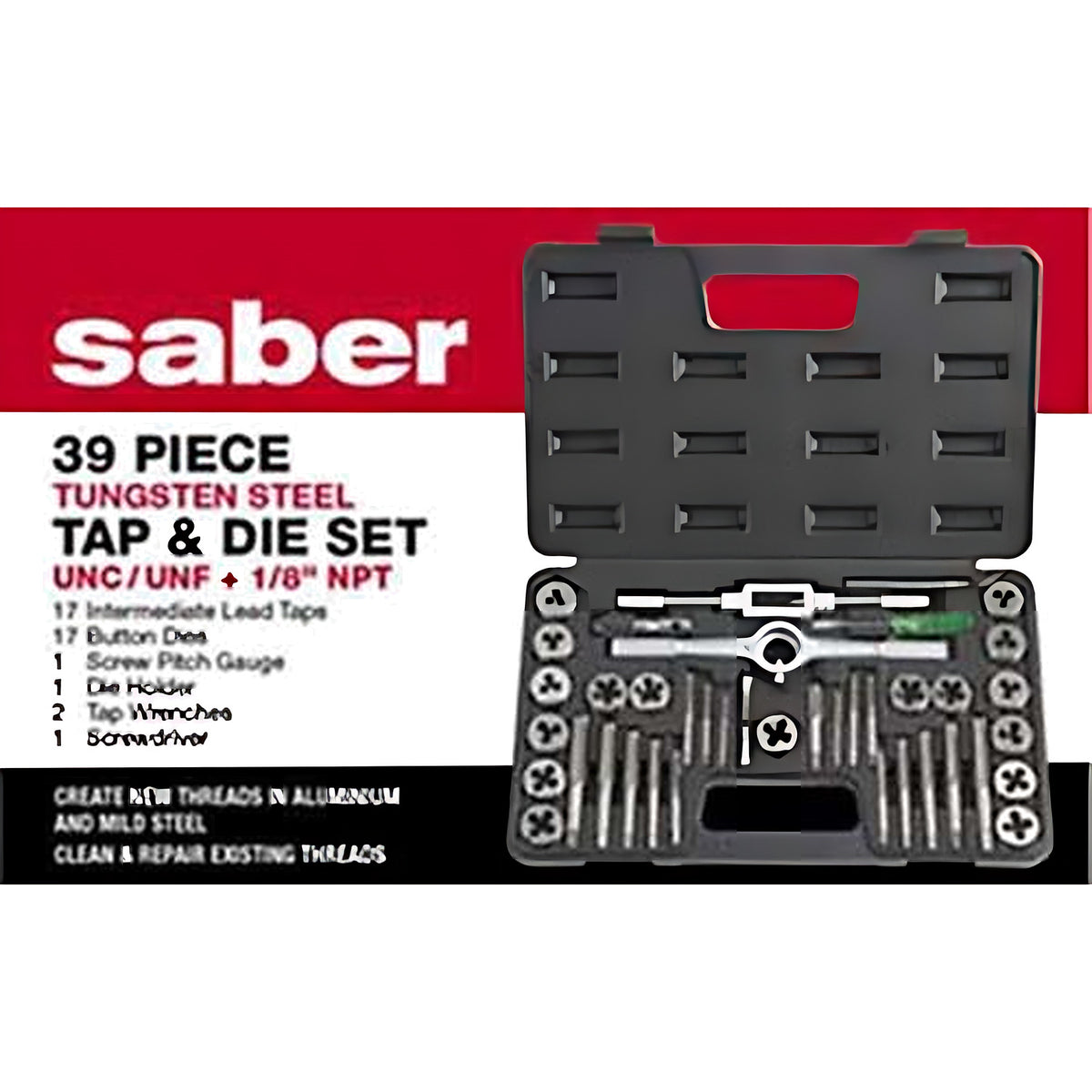

The Saber S3 Tap and Die Set is a 39 piece set for cutting and repairing UNC/UNF and 1/8" NPT threads, in a blow moulded case. It suits tradespeople, mechanics and maintenance fitters who work on inch threads. The taps and dies are tungsten steel, and they create new threads in aluminium and mild steel and clean and repair existing threads. A tap cuts a thread inside a hole. A die cuts a thread on a rod or bolt. Intermediate lead taps have a tapered start so they begin cutting cleanly, and button dies are round dies that you hold in a die holder.
It has 17 intermediate lead taps and 17 button dies: 16 inch sizes and one 1/8" NPT pipe size. The case also holds 1 screw pitch gauge, 1 die holder, 2 tap wrenches and a screwdriver. To choose, this set has no metric sizes. For metric as well, see the 60 piece S2 (8050-S2). For metric only, see S4 (8050-S4).
Where this product is used
- Cutting new threads in aluminium and mild steel
- Cleaning and repairing damaged threads
- Maintenance and repair jobs that need threads cut or fixed on the spot
- Workshops that work on inch threads and 1/8" NPT pipe threads
Features
- 39 piece set in a blow moulded case
- 17 intermediate lead taps and 17 button dies in tungsten steel
- 16 inch sizes from 4Gx40 up to 1/2"x20
- One pipe size, NPT1/8"x27
- 1 screw pitch gauge, 1 die holder and 2 tap wrenches
- Screwdriver included
- Creates new threads in aluminium and mild steel
- Cleans and repairs existing threads
Key specifications
| Specification | Detail |
|---|---|
| Brand | Saber |
| Model | S3 Tap and Die Set - UNC/UNF and 1/8" NPT |
| Part number | 8050-S3 |
| Type | Tap and die set |
| Total pieces | 39 |
| Taps | 17 intermediate lead taps |
| Dies | 17 button dies |
| Material | Tungsten steel (taps and dies) |
| Inch sizes (16) | 4Gx40, 6Gx32, 8Gx32, 10Gx24, 10Gx32, 12Gx24, 1/4"x20, 1/4"x28, 5/16"x18, 5/16"x24, 3/8"x16, 3/8"x24, 7/16"x14, 7/16"x20, 1/2"x13, 1/2"x20 |
| Pipe thread size (1) | NPT1/8"x27 |
| Screw pitch gauge | 1 |
| Die holder | 1 |
| Tap wrenches | 2 |
| Other tools | 1 screwdriver |
| Case | Blow moulded case |
Supplied with

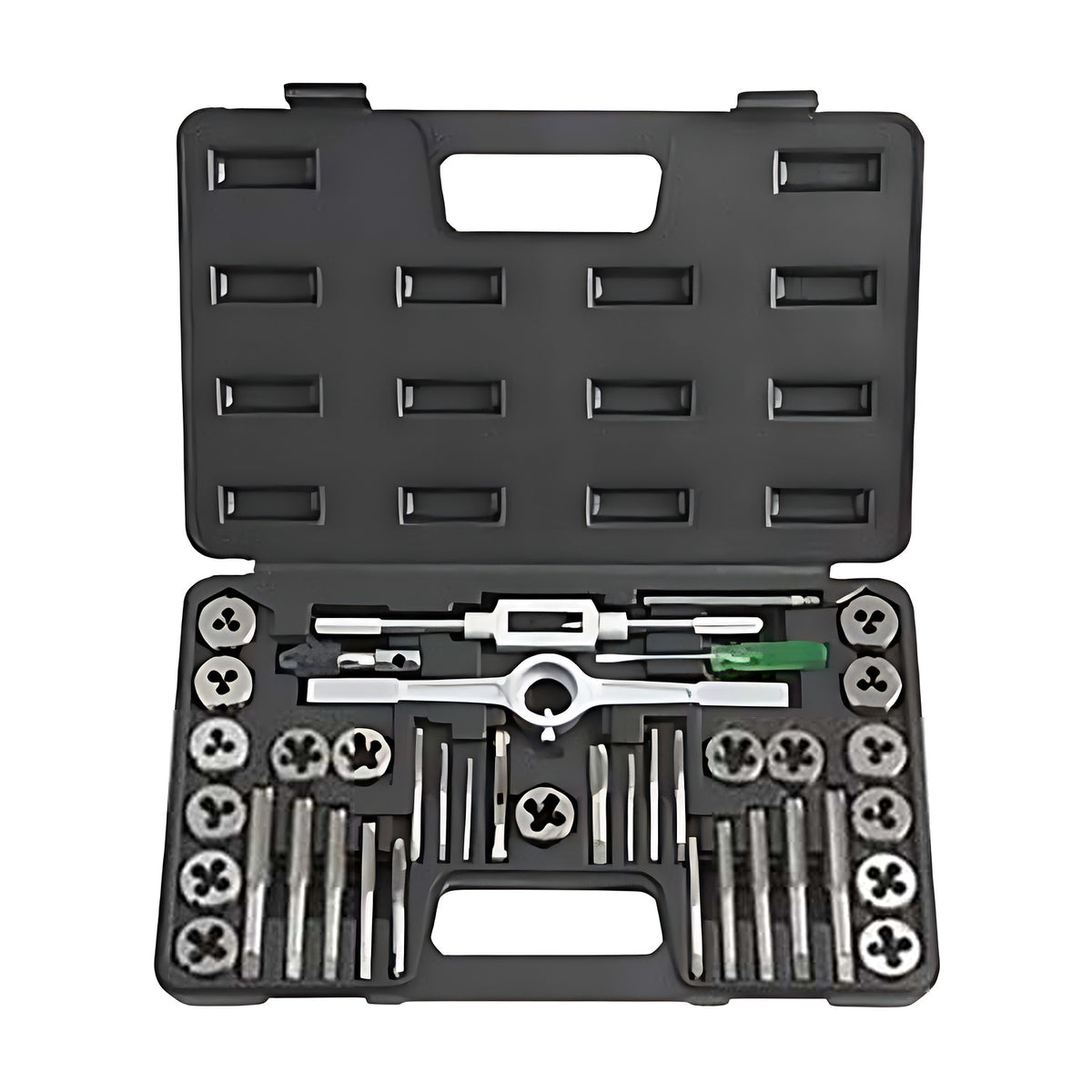

- 39 pieces in a blow moulded case: 17 intermediate lead taps, 17 button dies, 1 screw pitch gauge, 1 die holder, 2 tap wrenches, 1 screwdriver
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Saber S3 Tap and Die Set - UNC/UNF and 1/8" NPT - 8050-S3
SKU: A0145392 | Model: 8050-S3
The 8050-S3 is the 39 piece set: 17 intermediate lead taps and 17 button dies in 16 inch sizes and one 1/8" NPT size, plus 1 screw pitch gauge, 1 die holder, 2 tap wrenches and a screwdriver. It comes in a blow moulded case.
