AAP 4 in Cast Iron Gate Valve, Rising Stem, Table D | VCIGRS94D

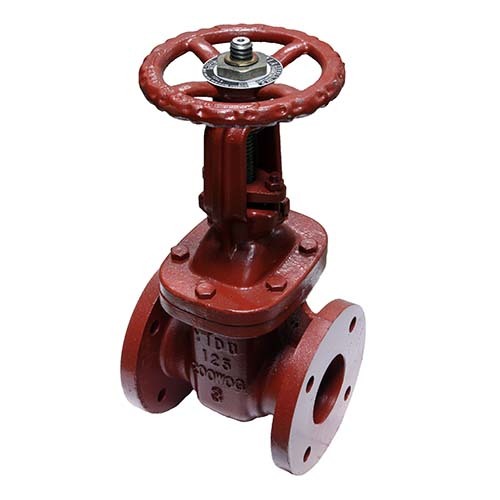

This AAP rising stem cast iron gate valve has a cast iron body, bonnet and wedge and flanges to AS 2129 Table D (manufacturer-stated). It is supplied in one size, 4 in (100 mm).

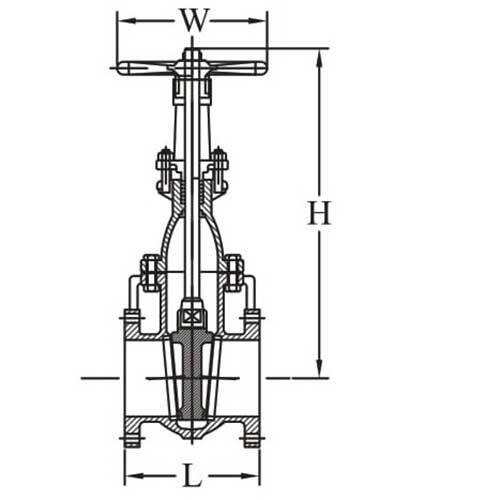

A wedge gate valve moves a wedge-shaped gate between two body seats using a spindle, so when it is fully open the fluid has a straight, uninterrupted passage with very little pressure drop. AAP says it is not recommended for flow regulation and should only be used fully open or fully closed. On a rising stem valve the stem lifts out of the valve as the handwheel opens it, so the stem position shows whether the valve is open or closed, and you need headroom above the valve. AAP describes the wedge as a solid wedge disc.

AAP gives a maximum temperature of 200 degrees C and a cold working pressure of 1,379 kPa (13.79 bar), with flanges to AS 2129 Table D (manufacturer-stated), and lists the valve for water, sewage and neutral liquid applications. The body, bonnet and wedge are cast iron with cast bronze seat and wedge face rings, a brass stem, Teflon packing and a graphite and steel body gasket.

Where this product is used

• Water, sewage and neutral liquid pipelines
• Pump stations and treatment plant isolation
• Industrial water services and flanged water mains
• Flanged pipework where a cast iron valve is specified

Features

• One size, 4 in (100 mm)
• Cast iron body, bonnet and wedge
• Cast bronze seat and wedge face rings, brass stem
• Rising stem
• Flanges to AS 2129 Table D (manufacturer-stated)
• Cold working pressure 1,379 kPa (13.79 bar), maximum 200 degrees C (manufacturer-stated)

Materials

Key specifications

Selecting the right option

Choose the size to match your Table D flanges, and check the hole count against your mating flange, because it differs between Table D and Table E. Allow headroom above the valve for the rising stem.

Related products

See also AAP Cast Iron Gate Valve, Rising Stem, Table E, AAP Cast Iron Gate Valve, Non-Rising Stem, Table D, AAP Cast Iron Gate Valve, Non-Rising Stem, Table E and AAP Cast Steel Flanged Gate Valve, ANSI 150.
