AAP Cast Steel Flanged Gate Valve, 2"

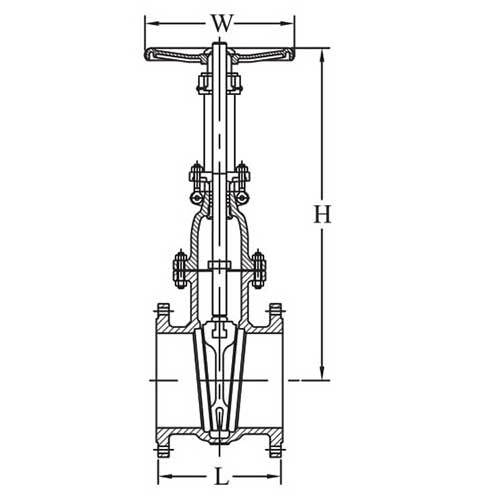

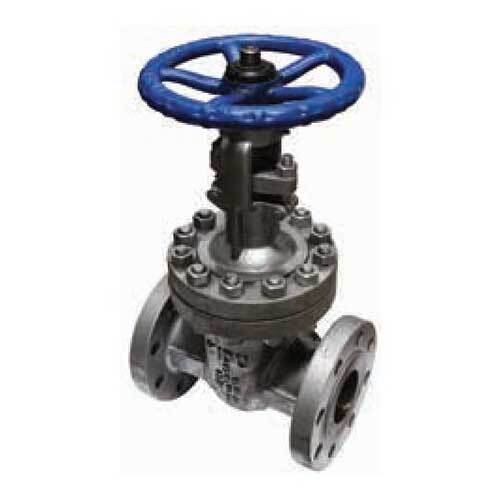

This AAP cast steel flanged gate valve has an ASTM A216 WCB body and bonnet, 13Cr trim, a hard-faced Stellite seat and ANSI Class 150 flanges. It is supplied in 9 sizes from 2" (50mm) to 12" (300mm).

A cast steel flanged gate valve is a heavy-duty wedge gate valve for hot, high-pressure process lines. A wedge gate valve moves a wedge-shaped gate between two body seats using a spindle, so when it is fully open the fluid has a straight, uninterrupted passage with very little pressure drop. It is not recommended for flow regulation and should only be used fully open or fully closed. The maximum working temperature is 300°C and the cold working pressure is 1,960 kPa (19.6 bar) for Class 150, with flange dimensions to ANSI B16.5. The body and bonnet are ASTM A216 WCB, the wedge is WCB with 13Cr, the stem is ASTM A276 T410, the seat ring has hard-faced Stellite and the packing is graphite.

Where this product is used

• Refinery and petrochemical process pipework
• Chemical and pharmaceutical plant
• Power station and utility isolation
• Hot and high-pressure isolation on flanged lines

Features

• 9 sizes from 2" (50mm) to 12" (300mm)
• ASTM A216 WCB body and bonnet, 13Cr wedge and T410 stem
• Hard-faced Stellite seat, graphite packing
• ANSI Class 150 flanges to ANSI B16.5
• Cold working pressure 1,960 kPa (19.6 bar), maximum 300°C
• Back seat bushing and oil cup on the stem

Key specifications

Choosing the right option

Choose the size to match your ANSI Class 150 flanges, and check the hole count and hole diameter against your mating flange.
