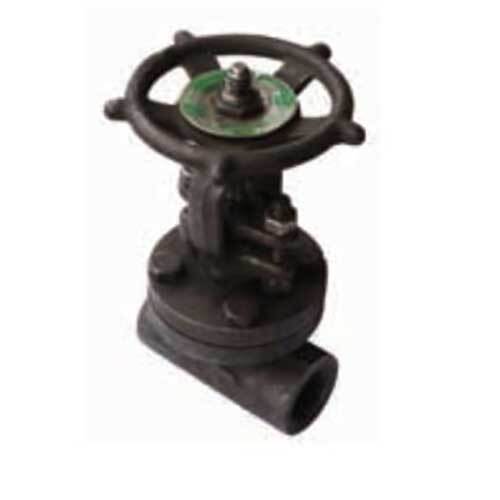

AAP Forged Steel Gate Valve, 1/2"

This AAP forged steel Class 800 gate valve has a forged ASTM A105 body, bonnet and wedge, a graphite gasket, an SS410 disc and female NPT threaded ends. It is supplied in 6 sizes from 1/2" (15mm) to 2" (50mm).

A forged steel Class 800 gate valve is a compact, heavy-duty wedge gate valve for small bore steam, oil and process lines. A wedge gate valve moves a wedge-shaped gate between two body seats using a spindle, so when it is fully open the fluid has a straight, uninterrupted passage with very little pressure drop. It is not recommended for flow regulation and should only be used fully open or fully closed. The 13,800 kPa figure is the cold working pressure, so the allowable pressure falls as the temperature rises.

Where this product is used

• Steam lines and condensate isolation
• Oil and petrochemical process pipework
• High-pressure plant and utility isolation
• Small bore isolation where a heavy forged valve is specified

Features

• 6 sizes from 1/2" (15mm) to 2" (50mm)
• Forged ASTM A105 body, bonnet and wedge
• SS410 disc with a hard-faced Stellite seat
• Cold working pressure 13,800 kPa (138 bar), maximum 427°C
• Design to ANSI B16.34
• Thread (NPT) to ASME B1.20.1

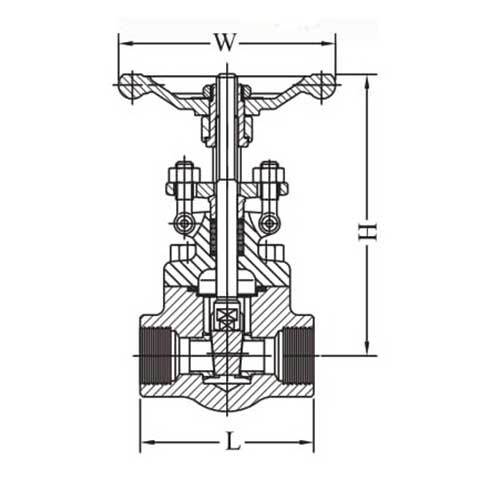

Key specifications

Choosing the right option

Choose the size and the end connection, thread (npt), to match your pipework.
