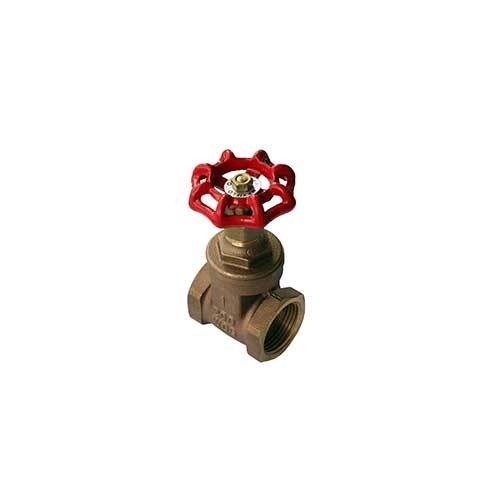

1/2 in (15 mm) Bronze Gate Valve, Screwed | VBZG15
Available
This AAP bronze screwed gate valve has a bronze body, bonnet, wedge and stem, a ductile iron handwheel and female ISO 228 threads. It is supplied in 6 sizes from 1/2 in (15 mm) to 2 in (50 mm).
A wedge gate valve moves a wedge-shaped gate between two body seats using a spindle, so when it is fully open the fluid has a straight, uninterrupted passage with very little pressure drop. AAP says it is not recommended for flow regulation and should only be used fully open or fully closed.
AAP gives a maximum working temperature of 180 degrees C and a cold working pressure of 1,600 kPa (16 bar), with an ISO 228 thread, and lists the valve for water, oil, gas and irrigation (manufacturer-stated). The catalogue refers to this valve as the TM-107. ISO 228 is a parallel pipe thread, so match it to your pipework.
Where this product is used
- Water, oil and gas isolation in pipework
- Irrigation and pump lines
- General plant and workshop services
- Straight-through isolation where pressure drop must stay low
Features
- 6 sizes from 1/2 in (15 mm) to 2 in (50 mm)
- Bronze body, bonnet, wedge and stem
- Ductile iron handwheel
- ISO 228 thread (manufacturer-stated)
- Cold working pressure 1,600 kPa (16 bar), maximum 180 degrees C (manufacturer-stated)
- Listed for water, oil, gas and irrigation (manufacturer-stated)
Materials
| Part | Material (manufacturer-stated) |
|---|---|
| Body | Bronze |
| Bonnet | Bronze |
| Wedge | Bronze |
| Stem | Bronze |
| Hand wheel | Ductile iron |
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Bronze screwed gate valve |
| Body, bonnet, wedge and stem | Bronze |
| Handwheel | Ductile iron |
| Connection | Female screwed |
| Thread (manufacturer-stated) | ISO 228 |
| Cold working pressure (manufacturer-stated) | 1,600 kPa (16 bar) |
| Maximum temperature (manufacturer-stated) | 180 degrees C |
| Applications (manufacturer-stated) | Water, oil, gas, irrigation |
| Sizes | 1/2 in (15 mm) to 2 in (50 mm) (6 sizes) |
Options and part numbers

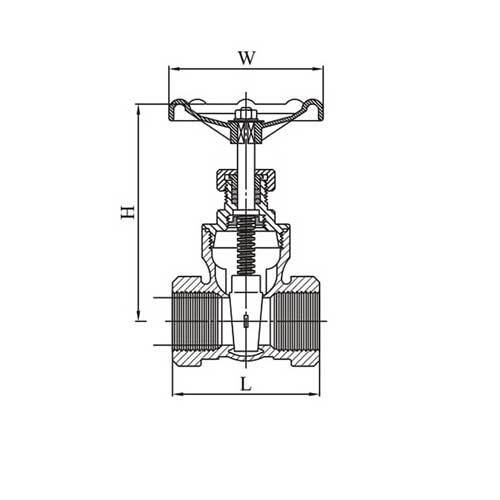

| Size | Part number | Length L (mm) | Height H (mm) | Width W (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 1/2 in (15 mm) | VBZG15 | 43 | 85 | 50 | 0.27 |
| 3/4 in (20 mm) | VBZG20 | 48 | 100 | 50 | 0.39 |
| 1 in (25 mm) | VBZG25 | 57 | 120 | 58 | 0.53 |
| 1-1/4 in (32 mm) | VBZG32 | 63 | 145 | 77 | 0.71 |
| 1-1/2 in (40 mm) | VBZG40 | 65 | 155 | 77 | 0.89 |
| 2 in (50 mm) | VBZG50 | 78 | 190 | 97 | 1.27 |
Selecting the right option
Choose the size to match your pipe thread. Use the valve fully open or fully closed rather than to throttle flow. AAP also lists a 2 in shouldered bronze gate valve with a T-lever, and a brass screwed version.
