AAP 15mm, 1/2" Brass Gate Valve Flanged VBGF15

AAP 20mm, 3/4" Brass Gate Valve Flanged VBGF20

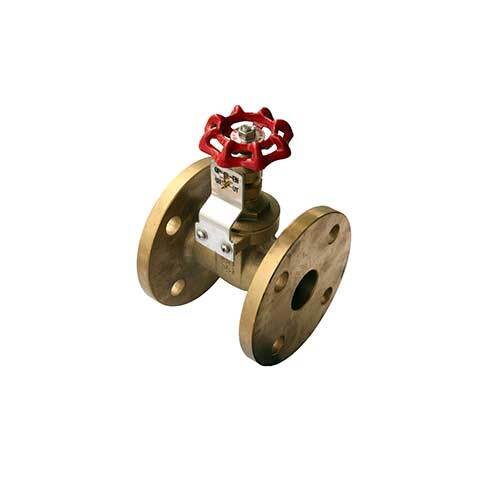

AAP 25mm, 1" Brass Gate Valve Flanged VBGF25

AAP 32mm, 1-1/4" Brass Gate Valve Flanged VBGF32

AAP 40mm, 1-1/2" Brass Gate Valve Flanged VBGF40

AAP 50mm, 2" Brass Gate Valve Flanged VBGF50

AAP 80mm, 3" Brass Gate Valve Flanged VBGF80

AAP 100mm, 4" Brass Gate Valve Flanged VBGF94

Description +

Brass Flanged Gate Valve

Materials
PART
MATERIAL
Handle
Aluminium Alloy
Shaft
304 Stainless Steel
Body
Brass
Bonnet
Brass
Wedge
Brass
Packing
Teflon

Specifications +

Specifications
Flanges 15mm - 80mm
AS2129 T/E
Flanges 100mm
Undrilled
Max Working Temperature
180¬∞C
Cold Working Pressure
1380kPa

Application +

Applications: Water, Oil, Gas, Irrigation

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

AAP Brass Gate Valve Flanged

SKU: A0080457

Type: Brass Gate Valve

$379.28

Inc. GST

Buy It Now

Available

The AAP Brass Gate Valve Flanged by AAP is a Brass Gate Valve made of brass. It offers flanges 15mm to 80mm and is suitable for Water.
