AAP 2 in Bronze Shouldered Gate Valve, T-Lever | VBZG50S

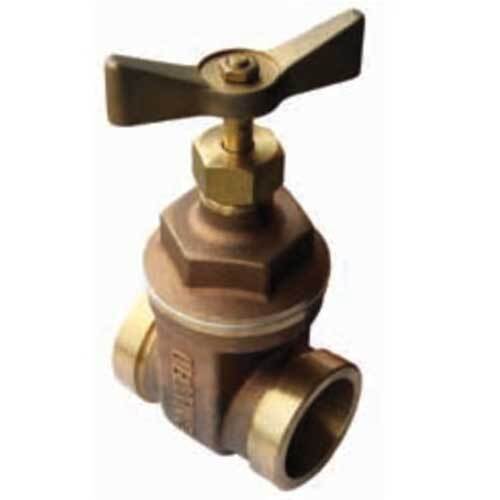

This AAP bronze shouldered gate valve has a T-lever and a bronze body, bonnet and stem, with an EPDM capsulated bronze wedge. It is supplied in one size, 2 in (50 mm).

A wedge gate valve moves a wedge-shaped gate between two body seats using a spindle, so when it is fully open the fluid has a straight, uninterrupted passage with very little pressure drop. AAP says it is not recommended for flow regulation and should only be used fully open or fully closed.

AAP gives a maximum working temperature of 120 degrees C and a cold working pressure of 1,200 kPa (12 bar), and lists the valve for water, oil, gas and irrigation (manufacturer-stated). AAP does not state the thread form for this valve, so confirm it with AIMS before you order.

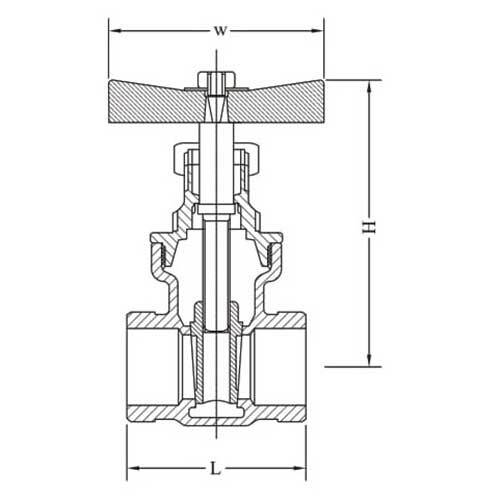

The AAP catalogue lists the dimensions under the headings H, L and W, in that order, and for this valve gives 102.5, 176 and 104 mm. They are shown here as length 102.5 mm and height 176 mm, the order that matches the other valves in this range, so check the length against your pipework if it matters.

Where this product is used

• Water, oil and gas isolation in pipework
• Irrigation and pump lines
• Plant and workshop services where a T-lever suits
• Straight-through isolation where pressure drop must stay low

Features

• One size, 2 in (50 mm)
• Bronze body, bonnet and stem, EPDM capsulated bronze wedge
• T-lever operator
• Cold working pressure 1,200 kPa (12 bar), maximum 120 degrees C (manufacturer-stated)
• Listed for water, oil, gas and irrigation (manufacturer-stated)

Materials

Key specifications

Selecting the right option

Check the thread form against your pipework before you order, as AAP does not state it. Use the valve fully open or fully closed rather than to throttle flow. AAP also lists a screwed bronze gate valve with a handwheel in 1/2 in to 2 in.
