1/8 in (6 mm) 316 Stainless 90 Degree Elbow, F/F | SSE06
Available
This AAP 90 degree elbow with female threads is grade 316 stainless steel with BSP threads. It is supplied in 12 sizes, 1/8 in (6 mm) to 4 in (100 mm).
A 90 degree elbow turns a pipe run through a right angle. This one is threaded inside at both ends (female by female). A is the centre to end dimension.
AAP makes its 150 lb stainless steel fittings from grade 316 stainless steel and says 150 lb refers to a maximum working pressure and temperature of 150 psi saturated steam, about 1,034 kPa (manufacturer-stated). AAP gives the grade as 316/316L in its chemical composition table and lists marine, pumping, commercial, chemical and irrigation applications for the range.
Where this product is used
- Marine, pumping, commercial, chemical and irrigation pipework in stainless steel, as listed by AAP for the range
- Turning threaded stainless steel pipework through 90 degrees
- Joining two male threaded pipes at a right angle
Features
- 12 sizes, 1/8 in (6 mm) to 4 in (100 mm)
- Grade 316 stainless steel, 150 lb class (manufacturer-stated)
- Applicable standards listed by AAP include AS 1722.2 and ISO 4144 (manufacturer-stated)
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | 90 degree elbow with female threads, grade 316 stainless steel |
| Type | 90 degree elbow, female by female |
| Material | Grade 316 stainless steel (316/316L composition listed by AAP) |
| Class (manufacturer-stated) | 150 lb (150 psi saturated steam) |
| Applicable standards (manufacturer-stated) | AS 1722.2, ISO 4144, ASTM A351, ASTM A182 |
| Mechanical properties (manufacturer-stated) | Tensile strength min 70,000 psi (483 MPa), yield strength min 25,000 psi (172 MPa), elongation min 35 per cent |
| Sizes | 1/8 in (6 mm) to 4 in (100 mm) (12 sizes) |
Options and part numbers
| Size | Part number | Centre to end A (mm) | Weight (kg) |
|---|---|---|---|
| 1/8 in (6 mm) | SSE06 | 17 | 0.02 |
| 1/4 in (8 mm) | SSE08 | 19 | 0.02 |
| 3/8 in (10 mm) | SSE10 | 23 | 0.04 |
| 1/2 in (15 mm) | SSE15 | 27 | 0.09 |
| 3/4 in (20 mm) | SSE20 | 32 | 0.11 |
| 1 in (25 mm) | SSE25 | 38 | 0.15 |
| 1-1/4 in (32 mm) | SSE32 | 45 | 0.24 |
| 1-1/2 in (40 mm) | SSE40 | 48 | 0.33 |
| 2 in (50 mm) | SSE50 | 57 | 0.61 |
| 2-1/2 in (65 mm) | SSE65 | 69 | 0.83 |
| 3 in (80 mm) | SSE80 | 78 | 1.38 |
| 4 in (100 mm) | SSE100 | 96 | 3.40 |

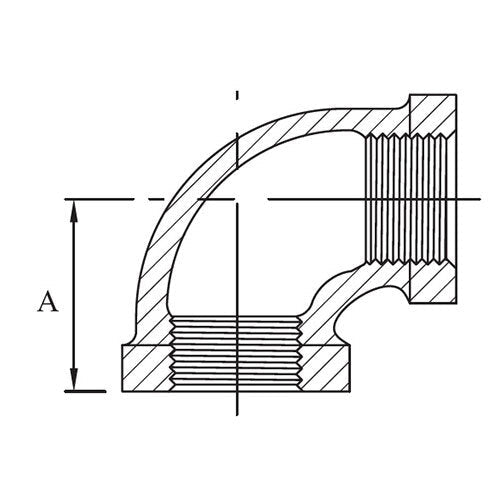

A is the centre to end dimension, in millimetres, as lettered on the AAP drawing.
Selecting the right option
Choose the size to match your pipe threads, and check the thread gender at each end against the fitting it joins.
Related products
See also AAP 316 Stainless Steel 90 Degree Elbow, Male x Female, BSP Threaded, AAP 316 Stainless Steel 45 Degree Elbow, Female, BSP Threaded, AAP 316 Stainless Steel Equal Tee, BSP Threaded and AAP 316 Stainless Steel Coupling, BSP Threaded.
