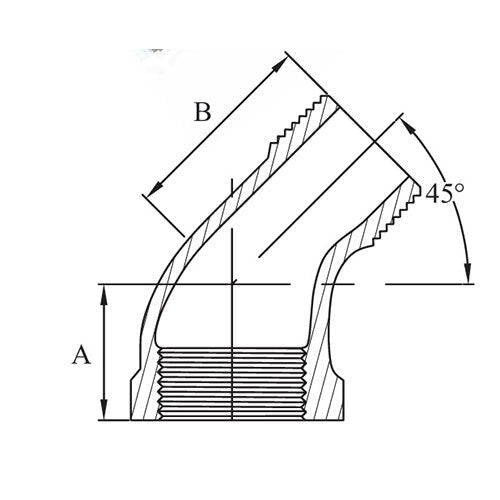

AAP 45° Elbow F/F - BSP 316 Stainless Steel

AAP 45° Elbow F/F - BSP 316 Stainless Steel

SKU: A0076370

Type: Elbow

$3.59
$3.59
Inc. GST
Buy It Now

Available

The AAP 45? Elbow F/F by AAP is a Elbow made of 316 Stainless Steel. It offers a maximum working pressure of 150psi saturated steam to AS 1722.2 ISO 4144 ASTM A351 ASTM A182 and is suitable for domestic chemical applications.

Resources

File icon
AAP-S7-SS316-Threaded-Fittings

Stainless Steel 316 Threaded Fittings

  • AAP "150lb" stainless steel Fittings are made from grade 316 stainless steel.
  • 150lb refers to the maximum working pressure/ temperature of 150psi saturated steam.
  • Applications - Stainless Steel Fittings are most suitable for marine, pumping, commercial, domestic chemical, and irrigation applications

Applicable Standards:

  • AS 1722.2 - Pipe Threads of Whitworth Form (Fastening thread)
  • ASTM A351 - Standard specification of Castings, Austenitic for pressure-containing parts
  • ASTM A182 - Standard specification for forged or rolled alloy and stainless steel pipe flanges, forged fittings, valves, and parts for high-temperature parts.
  • ISO 4144 - Pipework - Stainless Steel Fittings Threaded in Accordance with ISO7 - 1

About Stainless Steel:

  • Stainless steel can be defined as a steel alloy that has a minimum chromium level of 11% of its mass.
  • Stainless steel Fittings are used when the properties of steel and resistance to corrosion are required.
