AAP 316 Stainless Steel Equal Tee, 1/8"
Available

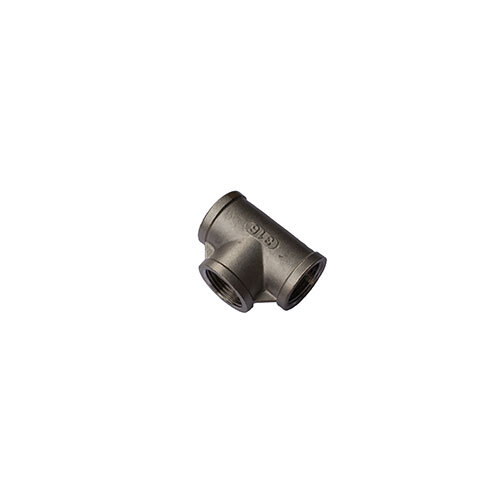

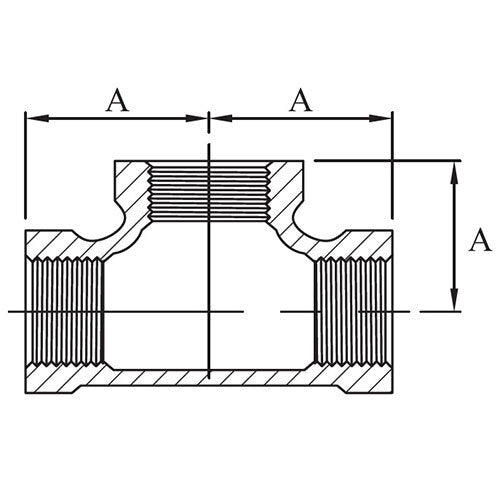

This AAP equal tee is grade 316 stainless steel with BSP threads. It is supplied in 12 sizes, 1/8" (6mm) to 4" (100mm). An equal tee has three threaded ports of the same size, so a pipe run can branch in one direction. This one is threaded inside at all three ports. A is the centre to end dimension, the same to each port.
The 150 lb stainless steel fittings are made from grade 316 stainless steel. 150 lb refers to a maximum working pressure and temperature of 150 psi saturated steam, about 1,034 kPa.
Where this product is used
- Marine, pumping, commercial, chemical and irrigation pipework in stainless steel
- Branching a threaded stainless steel pipe run
- Taking an equal size branch off a main
Features
- 12 sizes, 1/8" (6mm) to 4" (100mm)
- Grade 316 stainless steel, 150 lb class
- Applicable standards include AS 1722.2 and ISO 4144
- Type: Equal tee, internal thread on all three ports
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Equal tee, grade 316 stainless steel |
| Type | Equal tee, internal thread on all three ports |
| Material | Grade 316 stainless steel (316/316L composition) |
| Class | 150 lb (150 psi saturated steam) |
| Applicable standards | AS 1722.2, ISO 4144, ASTM A351, ASTM A182 |
| Mechanical properties | Tensile strength min 70,000 psi (483 MPa), yield strength min 25,000 psi (172 MPa), elongation min 35 per cent |
| Sizes | 1/8" (6mm) to 4" (100mm) (12 sizes) |
Choosing the right option
Choose the size to match your pipe threads, and check the thread gender at each end against the fitting it joins.
Related AAP products: AAP 316 Stainless Steel 90 Degree Elbow, Female, BSP Threaded, AAP 316 Stainless Steel Coupling, BSP Threaded, AAP 316 Stainless Steel Plug, BSP Threaded, AAP 316 Stainless Steel Hex Bush, BSP Threaded.
| Option | Part number | SKU |
|---|---|---|
| 1/8" | SST06 | A0076525 |
| 1/4" | SST08 | A0076526 |
| 1/2" | SST15 | A0076528 |
| 1" | SST25 | A0076530 |
| 1-1/4" | SST32 | A0076531 |
| 1-1/2" | SST40 | A0076532 |
| 2" | SST50 | A0076533 |
| 2-1/2" | SST65 | A0076534 |
| 3/8" | SST10 | A0076527 |
| 3/4" | SST20 | A0076529 |
| 3" | SST80 | A0076535 |
| 4" | SST100 | A0076536 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP 316 Stainless Steel Equal Tee, BSP Threaded: 1/8"
SKU: A0076525 | Model: SST06
AAP SST06: AAP 316 Stainless Steel Equal Tee, 1/8". Pipe Size (inch): 1/8. Pipe Size (mm): 6. Center To End (A): 17.
