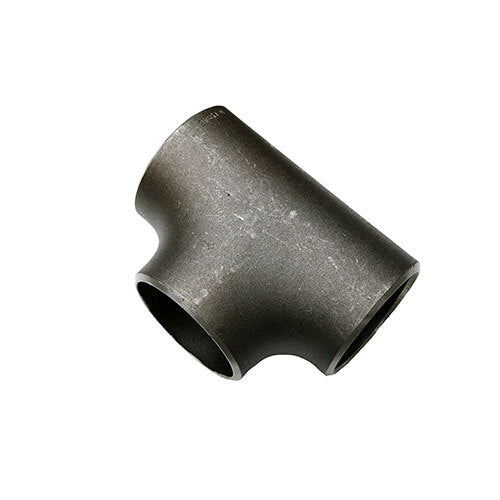

AAP Buttweld Equal Tee, 8"

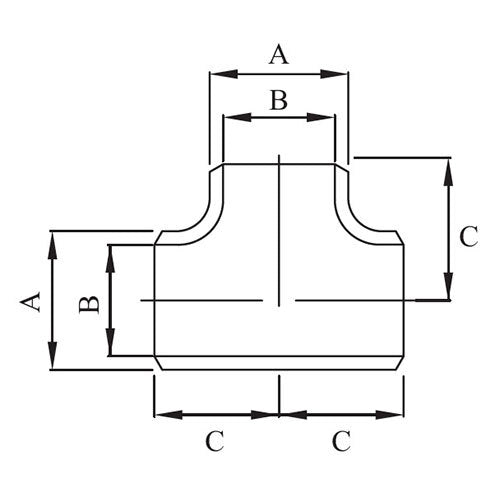

This AAP buttweld equal tee is made to JIS B 2311 (SGP). It is supplied in 7 sizes, 2" (50mm) to 8" (200mm). An equal tee has three butt weld ends of the same size, so a pipe run can branch off at right angles. It is made to JIS B 2311 (SGP). C is the centre to end distance, the same at each end.

The buttweld range is carbon alloy steel to ASTM A234 for use in various piping systems. Advantages of buttweld: a welded fitting is permanently leak proof, the continuous metal between pipe and fitting adds strength, the smoother inner surface and gradual direction changes reduce pressure loss, turbulence, corrosion and abrasion, and a welded system uses a minimum of space.

Where this product is used

• Pipework where a welded, permanently leak proof joint is wanted
• Branching a welded pipe run at right angles
• Pipework made to JIS B 2311 dimensions

Features

• 7 sizes, 2" (50mm) to 8" (200mm)
• Butt weld ends, JIS B 2311
• Wall thickness given for every size
• Weight class: SGP

Key specifications

Choosing the right option

Match the wall thickness to the pipe you are welding to.

Related AAP products: AAP Buttweld 90 Degree Long Radius Elbow, SGP, AAP Buttweld Concentric Reducer, SGP, AAP Buttweld Eccentric Reducer, SGP, AAP Buttweld 45 Degree Long Radius Elbow, SGP.
